Description

Price

1

CLAMP A, BRAKE HOSE

45461-KRH-900

$6.51

2

FORK ASSY., R. FR.

51400-K28-A61

$494.32

3

SPRING, FR. FORK

51401-K28-A61

$46.34

4

COLLAR, SPRING

51402-K28-A61

$9.50

5

PLATE, SPRING

51403-K28-911

$3.21

6

PIPE, FR. FORK

51410-K28-A61

$227.56

7

WASHER, OIL SEAL (CHUANNAN ABSORBER)

51412-GGC-901

$5.30

8

SPRING, REBOUND

51413-KRH-901

$8.99

9

GUIDE, FR. FORK (CHUANNAN ABSORBER)

51414-GFM-J11

$8.78

10

CASE, R. (LOWER)

51420-K28-911

$220.07

11

PIECE, OIL LOCK

51432-KRH-901

$9.81

12

RING, PISTON

51437-KRH-901

$5.66

13

PIPE, SEAT

51440-K28-A61

$31.72

14

SEAL SET, FR. FORK

51490-KRH-901

$18.25

15

FORK ASSY., L. FR.

51500-K28-A61

$494.32

16

CASE, L. (LOWER)

51520-K28-A61

$238.47

17

BOOT, R. FR. FORK

51611-K28-A61

$42.76

18

BAND, FR. FORK BOOT (CHUANNAN ABSORBER)

51612-KTJ-C00

$9.84

19

BOOT, L. FR. FORK

51616-K28-A61

$42.75

20

BOLT, SOCKET (8X30) (CHUANNAN ABSORBER)

90116-KRF-H71

$3.51

21

BOLT, FR. FORK

90123-KRF-H71

$13.08

22

WASHER, SPECIAL (8MM) (CHUANNAN ABSORBER)

90544-KRF-H71

$1.81

23

RING, OIL SEAL STOPPER (CHUANNAN ABSORBER)

90651-KRF-H71

Unavailable

24

DUST SEAL

91254-KRH-901

$9.25

25

O-RING (22X2.8) (CHUANNAN ABSORBER)

91351-KRF-H71

$2.75

26

SCREW, PAN (3X20)

93500-03020-0G

$0.69

27

BOLT, FLANGE (6X16)

96001-06016-00

$0.97

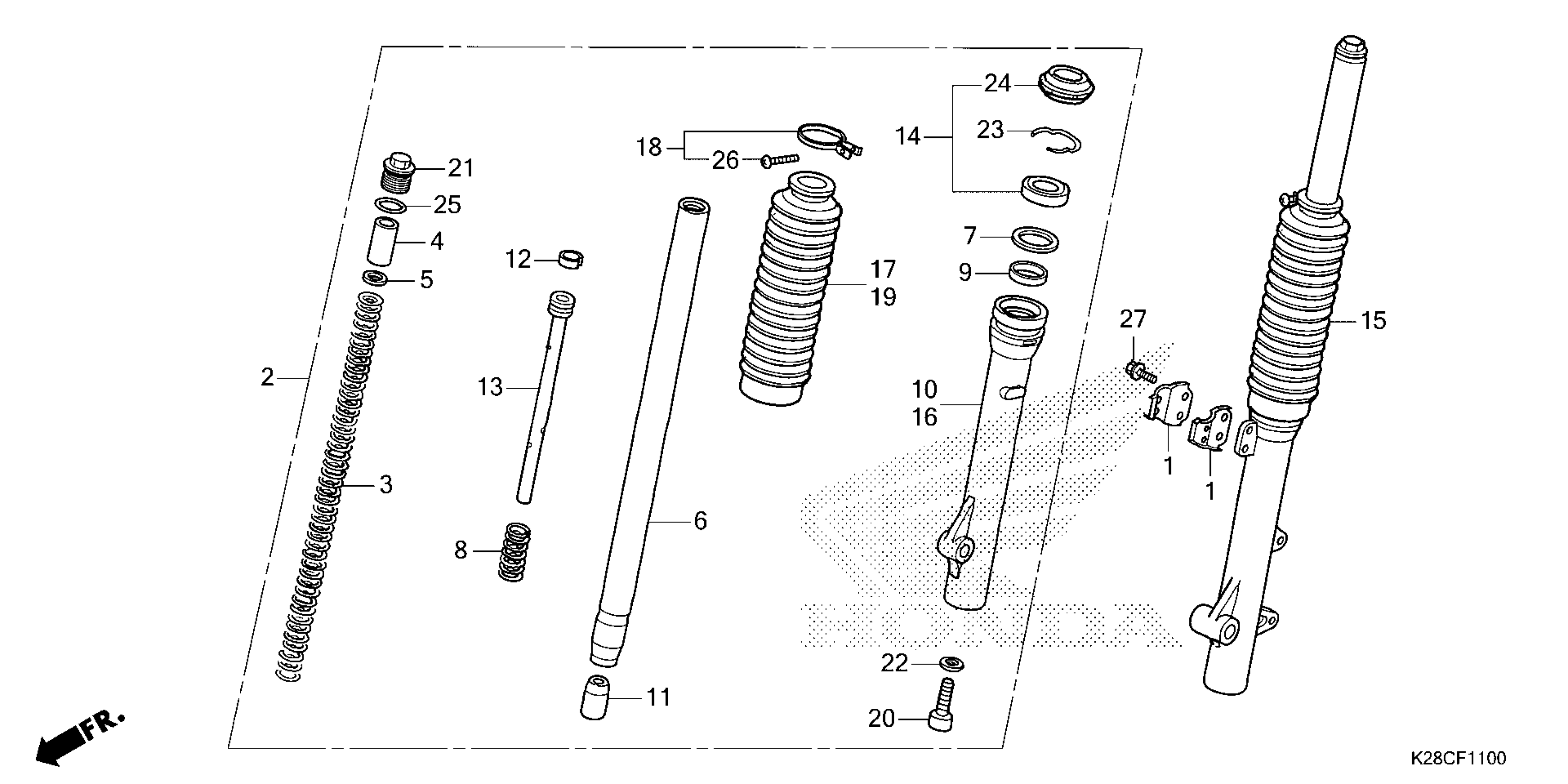

Honda CRF125FA (26) MOTORCYCLE, CHN, VIN# LALJE034-T3800001 TO LALJE034-T3899999 FRONT FORK Diagram
