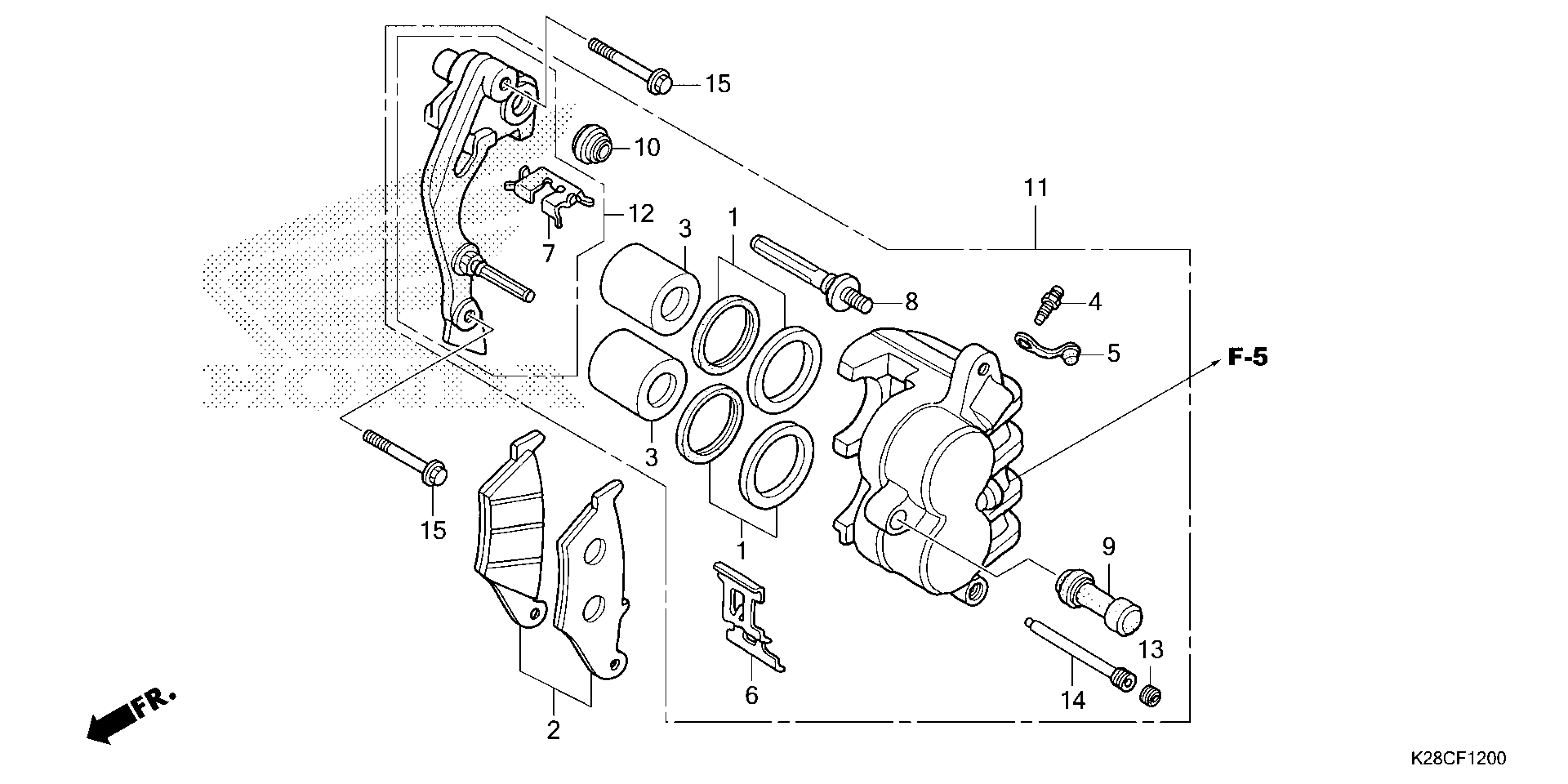

Honda CRF125FA (26) MOTORCYCLE, CHN, VIN# LALJE034-T3800001 TO LALJE034-T3899999 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.33

2

PAD SET, FR.

06455-KSS-952

$57.82

3

PISTON (27X31)

43107-MAJ-G41

$39.18

4

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

5

CAP, BLEEDER

43353-461-771

$5.05

6

SPRING, PAD

45108-KW8-901

$10.44

7

RETAINER

45112-KS6-701

$6.08

8

BOLT A, BOLT

45131-HA5-672

$15.44

9

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

10

BOOT B

45133-MA3-006

$5.46

11

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-K28-911

$309.89

12

BRACKET SUB-ASSY., L. FR.

45190-KCZ-J71

$126.21

13

PLUG, PIN

45203-MG3-016

$5.12

14

PIN, HANGER (NISSIN)

45215-ML7-922

$10.67

15

BOLT, FLANGE (8X40)

90131-KRH-900

$2.89
