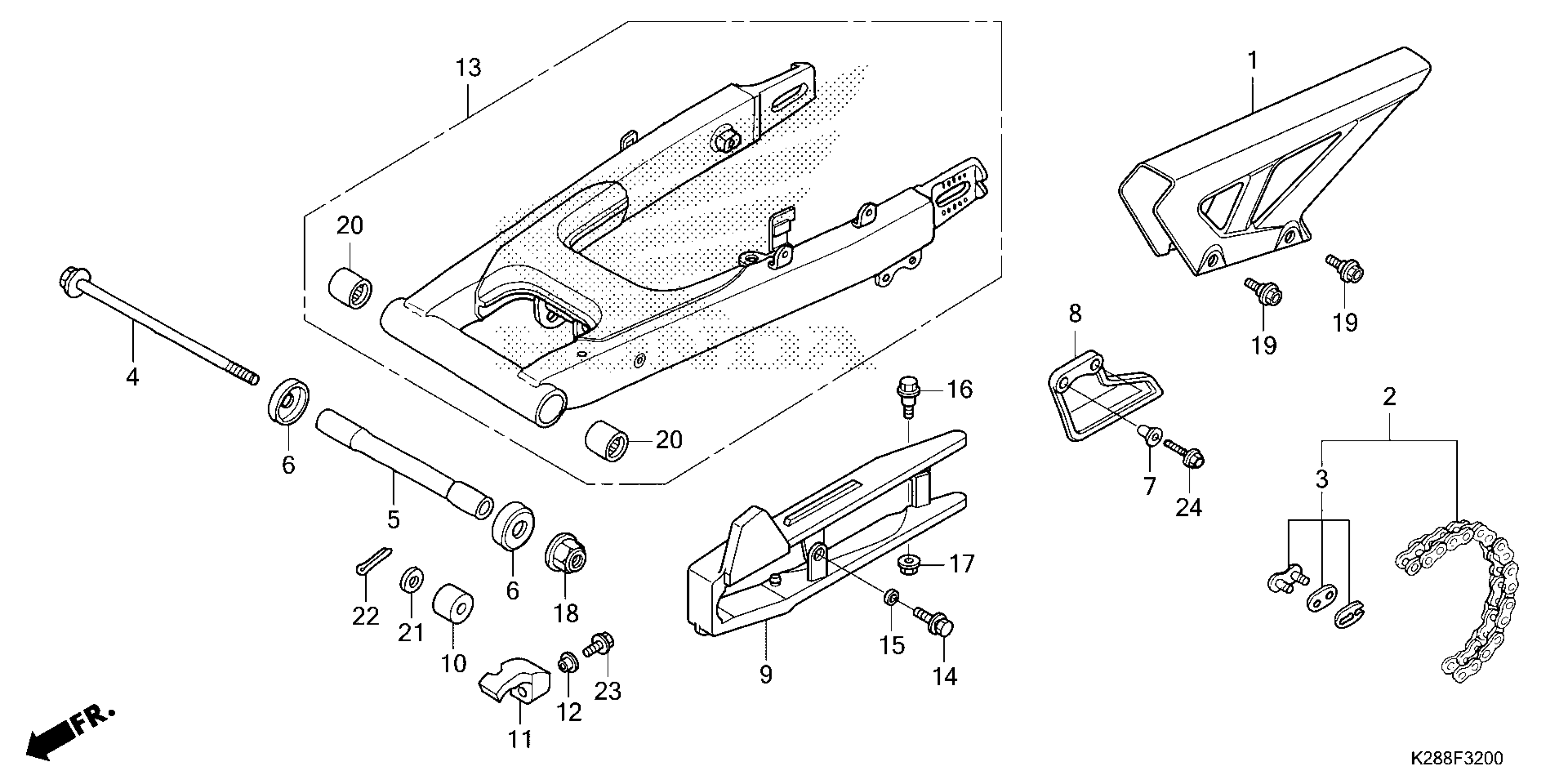

Honda CRF125FA (25) MOTORCYCLE, CHN, VIN# LALJE034-S3700001 SWINGARM Diagram

CASE, DRIVE CHAIN

40510-K28-910

$28.41

CHAIN, DRIVE (DID428HD-112RB) (DAIDO)

40530-K28-911

$105.95

MASTER LINK (DAIDO)

40531-355-013

$4.15

BOLT, SWINGARM PIVOT

52101-K28-910

$19.03

COLLAR, SWINGARM

52141-K28-910

$31.95

DUST SEAL (31X38.5X7) (NOK)

52144-GF5-003

$10.43

DUST SEAL (31X38.5X7) (NOK) This part replaces 52144-K28-910.

52144-GF5-003

$10.43

COLLAR, CHAIN GUARD

52157-K28-910

$2.92

GUARD, CHAIN

52160-K28-910

$19.52

SLIDER, CHAIN

52170-K28-910

$70.51

ROLLER, CHAIN (UPPER)

52175-K28-910

$7.15

SLIDER, CHAIN (LOWER)

52185-K28-910

$13.39

WASHER (6MM)

52186-K28-910

$2.44

SWINGARM SUB-ASSY., RR.

52200-K28-910

$318.11

BOLT-WASHER (5X16)

90107-K28-910

$2.44

COLLAR (10.5X5.3X3)

90108-K28-910

$4.75

BOLT, FLANGE (6X20)

90113-KYK-910

$3.56

NUT, FLANGE (6MM) (PT)

90302-KYA-601

$2.23

NUT, FLANGE (12MM) (PT)

90306-KYA-601

$2.92

BOLT, SPECIAL (6MM)

90653-KYK-910

$2.92

BEARING, NEEDLE (20X26X20) (TOYO) BEARING, SWINGARM PIVOT

91070-GC4-601

$24.72

WASHER, PLAIN (8MM)

94102-08700

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.62

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95801-06018-00.

95701-06018-00

$1.62
