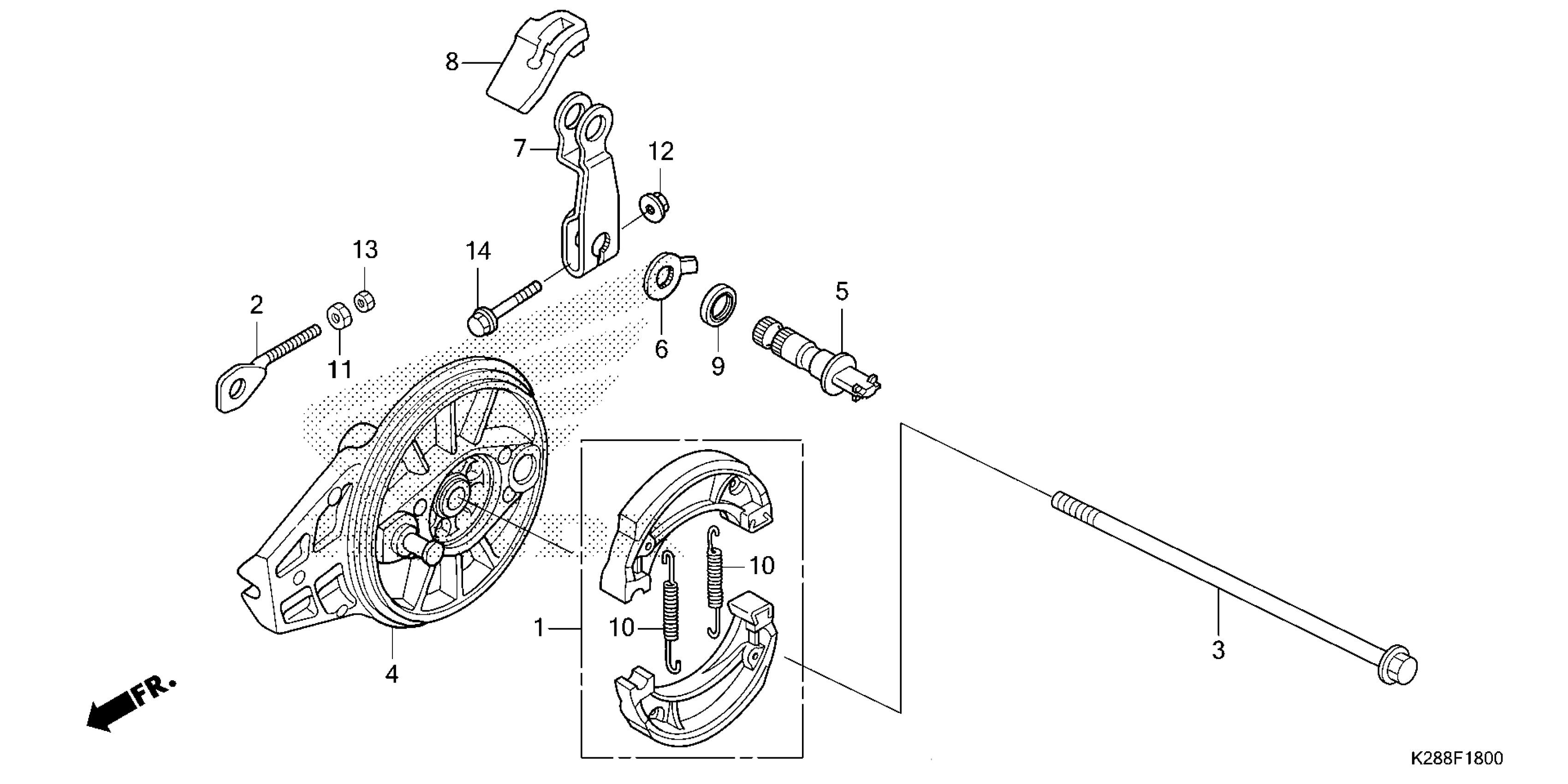

Honda CRF125FA (25) MOTORCYCLE, CHN, VIN# LALJE034-S3700001 REAR BRAKE PANEL Diagram

SHOE SET, BRAKE (JB NH FE)

06450-KYK-910

$29.82

ADJUSTER, CHAIN

40543-K28-910

$3.08

AXLE, RR. WHEEL

42301-K28-910

$20.56

PANEL, RR.

43100-KYK-910

$183.59

CAM, RR. BRAKE

43141-KYK-910

$19.24

INDICATOR, RR. BRAKE

43145-KYK-910

$4.26

ARM, RR. BRAKE

43410-K28-910

$8.87

COVER, RR. BRAKE ARM

43411-KYK-910

$7.13

DUST SEAL, BRAKE CAM (NOK)

45134-KB7-005

$2.97

SPRING, BRAKE SHOE

45151-GFC-900

$2.92

NUT, SPECIAL (6MM)

90302-KBP-900

$1.94

NUT, FLANGE (6MM) (PT)

90302-KYA-601

$2.23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

BOLT, FLANGE (6X35) (Honda Code 2112209)

96001-06035-00

$1.49
