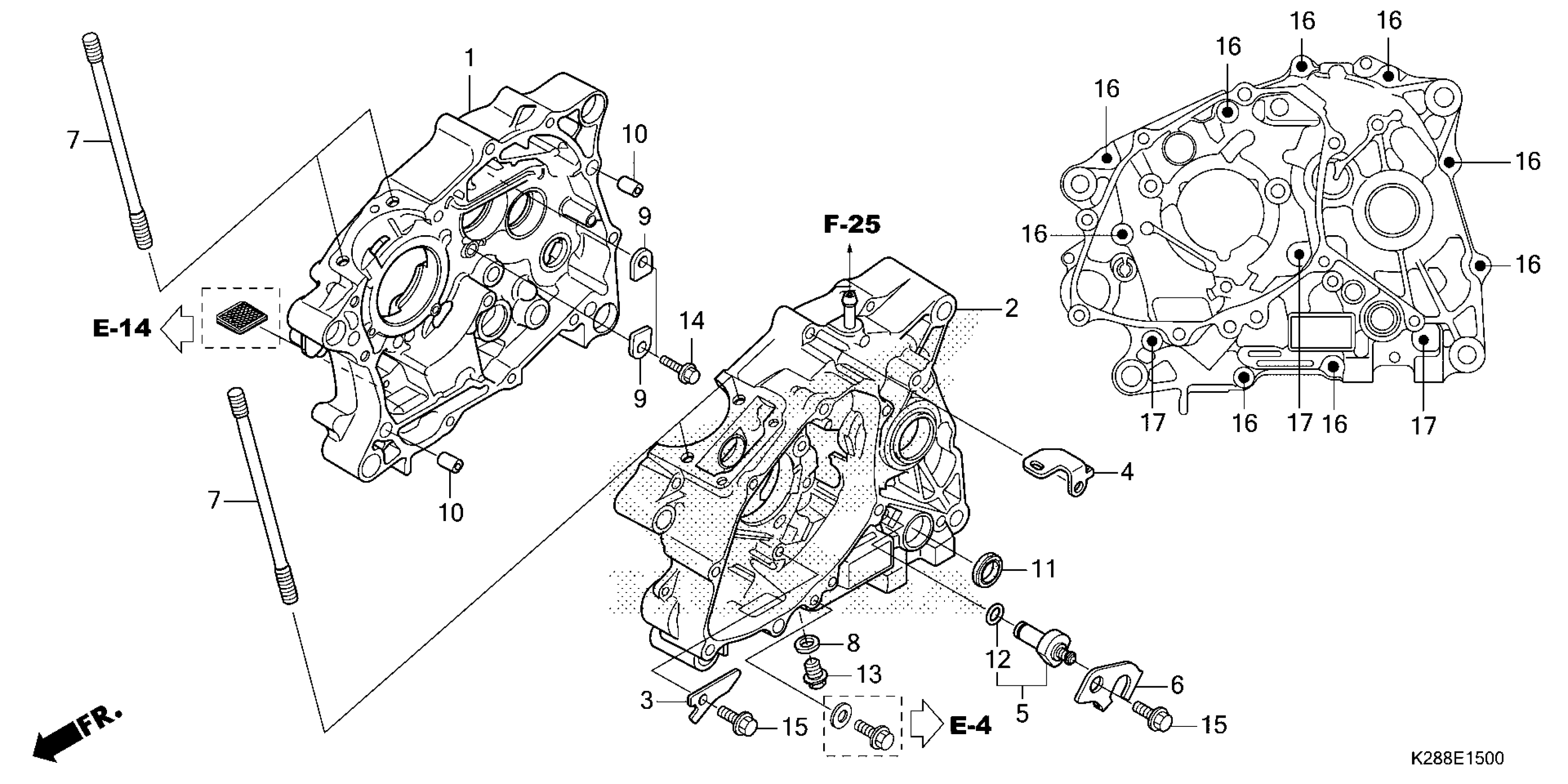

Honda CRF125FA (25) MOTORCYCLE, CHN, VIN# LALJE034-S3700001 CRANKCASE Diagram

CRANKCASE, R.

11100-K08-900

$330.37

CRANKCASE COMP, L. This part replaces 11200-KYY-901.

11200-KYY-902

$282.85

PLATE, OIL STOPPER

11218-KWS-900

$3.84

STAY, STARTER CABLE

32411-K28-A60

$3.79

CONTACT, NEUTRAL SWITCH

35750-KYY-901

$13.78

PLATE, CONTACT FIXING

35755-KYY-900

$7.16

BOLT, CYLINDER STUD

90031-KYY-900

$4.38

GASKET, DRAIN PETCOCK (12.5X20)

90407-259-000

$2.71

PLATE, BEARING HOLDER

90441-KRM-840

$0.56

PIN, DOWEL (10X14)

90703-KWS-900

$2.50

OIL SEAL (14X22X5) (ARAI)

91203-KSP-911

$1.90

O-RING (7X1.7)

91312-107-000

$2.94

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.26

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.50

BOLT, FLANGE (6X14)

96001-06014-00

Unavailable

BOLT, FLANGE (6X40)

96001-06040-00

$2.75

BOLT, FLANGE (6X60)

96001-06060-00

$2.69
