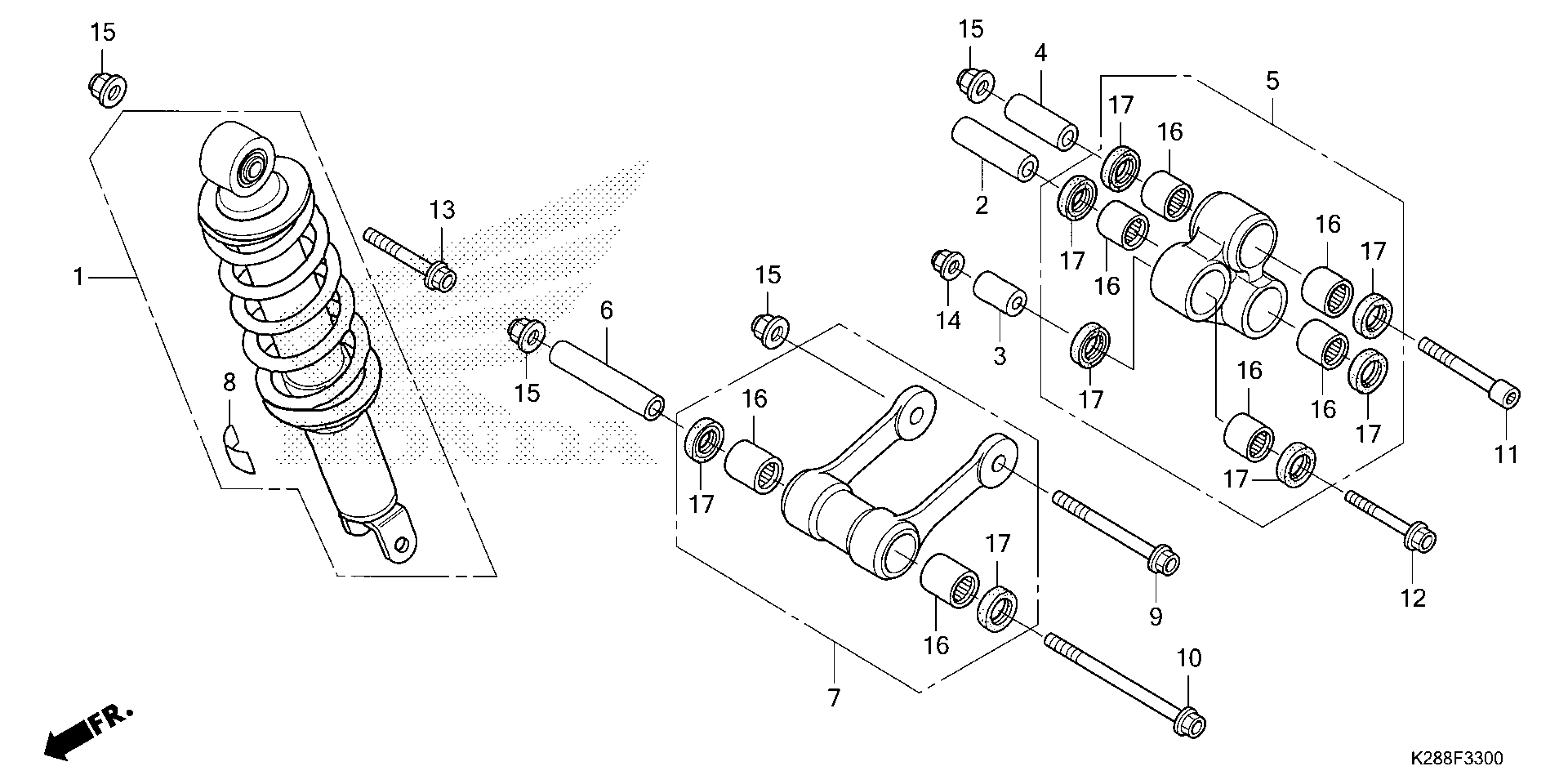

Honda CRF125FA (24) MOTORCYCLE, CHN, VIN# LALJE034-R3600001 TO LALJE034-R3699999 REAR SHOCK ABSORBER Diagram

CUSHION ASSY., RR.

52400-K28-A61

$441.28

COLLAR A, CUSHION ARM

52462-K28-910

$18.94

COLLAR, DAMPER (LOWER)

52463-K28-910

$17.58

COLLAR B, CUSHION ARM

52464-K28-910

$18.93

ARM SUB-ASSY., CUSHION

52465-K28-910

$209.75

COLLAR, CONNECTING ROD

52472-K28-910

$24.25

ROD SUB-ASSY., CUSHION CONNECTING

52475-K28-910

$179.67

LABEL, RR. DAMPER (ENGLISH)

87516-KRH-901

$7.26

BOLT, FLANGE (10X95)

90102-K28-910

$5.70

BOLT, FLANGE (10X121)

90106-K28-910

$6.19

BOLT, SOCKET (10X68)

90128-K28-910

$7.94

BOLT, FLANGE (8X48)

90150-K28-910

$2.91

BOLT, FLANGE (10X54)

90152-K28-910

$2.81

NUT, FLANGE SPECIAL (8MM)

90303-K28-911

$3.86

NUT, FLANGE (10MM) (PT)

90304-KYA-601

$3.15

BEARING, NEEDLE (17X24X17) (KOYO)

91071-MY1-005

$17.67

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.77
