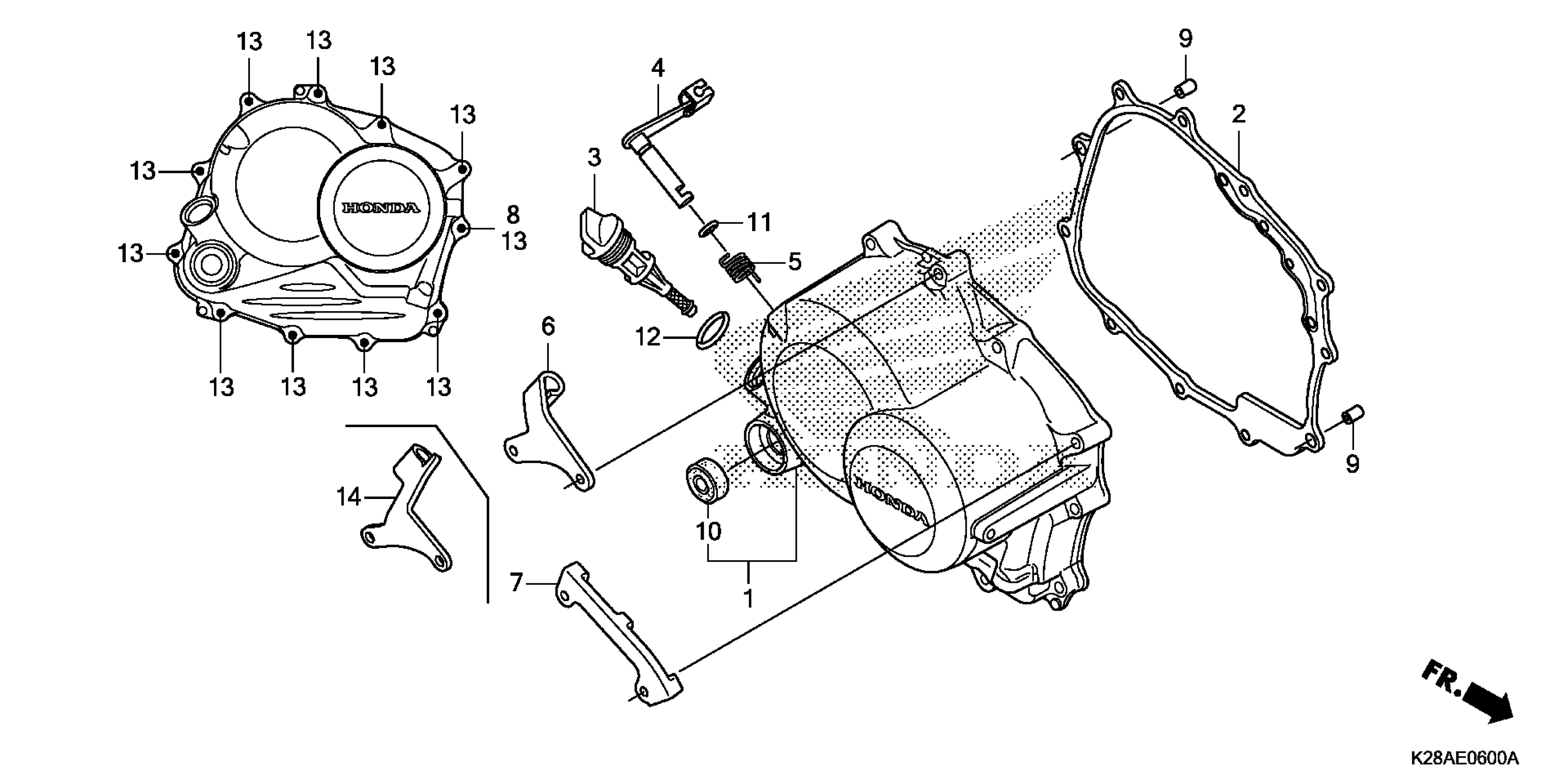

Honda CRF125FA (21) MOTORCYCLE, CHN, VIN# LALJE034-M3300001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-K28-910

$187.82

GASKET, R. CRANKCASE COVER

11394-KWS-901

$22.65

DIPSTICK, OIL

15651-K28-910

$9.87

LEVER, CLUTCH

22810-K28-A60

$40.59

SPRING, CLUTCH LEVER

22815-166-000

$3.36

CLAMP, STARTER CABLE

31124-KYY-900

$6.77

WASHER, SEALING (6.2X12X1.2)

90463-KRM-840

$1.49

PIN, DOWEL (8X14)

90702-KRM-840

$1.49

OIL SEAL (16X28X7)

91204-KSP-911

$7.90

O-RING (8.8X1.9)

91303-KYY-900

$1.98

O-RING (18X3)

91307-KRM-840

$1.49

BOLT, FLANGE (6X35) (Honda Code 2112209)

96001-06035-00

$1.49

RECEIVER, CLUTCH CABLE

22821-K28-A60

$12.10
