Description

Price

1

SWITCH ASSY., IGNITION

35100-K28-E21

$67.46

2

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) KEY, BLANK (TYPE2) | (Optional).

35121-HF1-881

$9.59

2

KEY, BLANK (TYPE 2) (KEY NO. CXX / DXX) | (Optional).

35122-HF1-881

$9.59

3

HANDLEBAR

53100-K28-A60

$95.89

4

HOLDER, HANDLE (UPPER)

53131-KCS-W60

$6.64

5

BRIDGE, FORK TOP

53300-K28-A60

$135.25

6

EMBLEM, PRODUCT (SHINKO)

86150-KTJ-C60

$4.11

7

BOLT, FLANGE (6X28)

90117-383-000

$2.39

8

NUT, STEERING STEM

90308-KRH-900

$7.69

9

WASHER, STEERING STEM

90503-KTT-900

$3.67

10

BOLT, FLANGE (8X35)

95701-08035-08

$1.49

11

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

11

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

11

BULB (14V 3.4W) (NS) BULB (14V 3.4W) (DENSO)

37237-SA5-003

$4.17

11

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

12

STAY, IGNITION SWITCH

35115-K28-A60

$23.02

13

SOCKET

37510-K28-A61

$17.80

14

LENS, FUEL

37562-K28-A61

$11.84

15

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

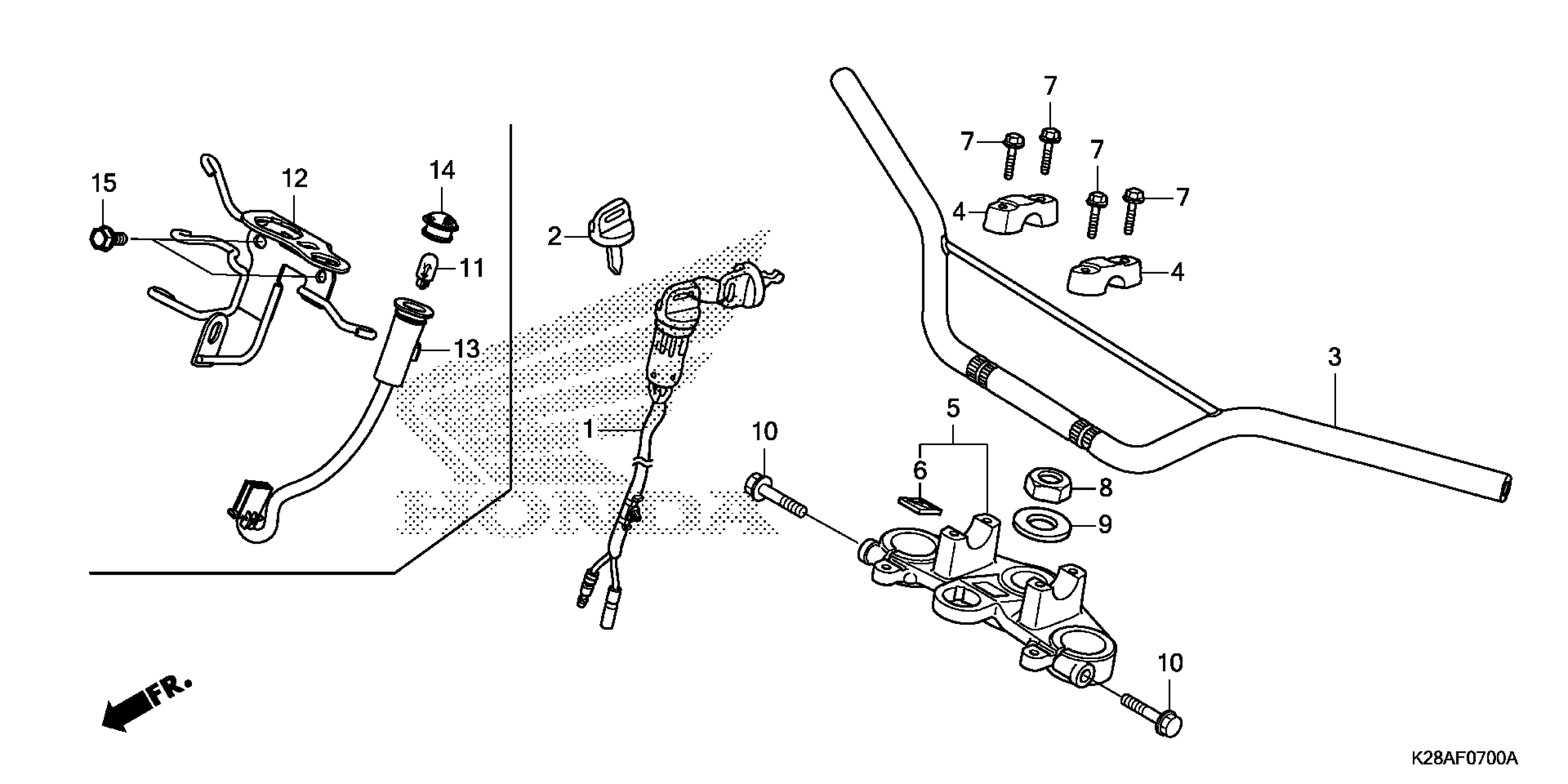

Honda CRF125FA (21) MOTORCYCLE, CHN, VIN# LALJE034-M3300001 HANDLEBAR Diagram

SWITCH ASSY., IGNITION

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) KEY, BLANK (TYPE2) | (Optional).

KEY, BLANK (TYPE 2) (KEY NO. CXX / DXX) | (Optional).

HANDLEBAR

HOLDER, HANDLE (UPPER)

BRIDGE, FORK TOP

EMBLEM, PRODUCT (SHINKO)

BOLT, FLANGE (6X28)

NUT, STEERING STEM

WASHER, STEERING STEM

BOLT, FLANGE (8X35)

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

BULB (14V 3.4W) (NS) BULB (14V 3.4W) (DENSO)

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

STAY, IGNITION SWITCH

SOCKET

LENS, FUEL

BOLT, FLANGE (6X14) (Honda Code 2410884)
