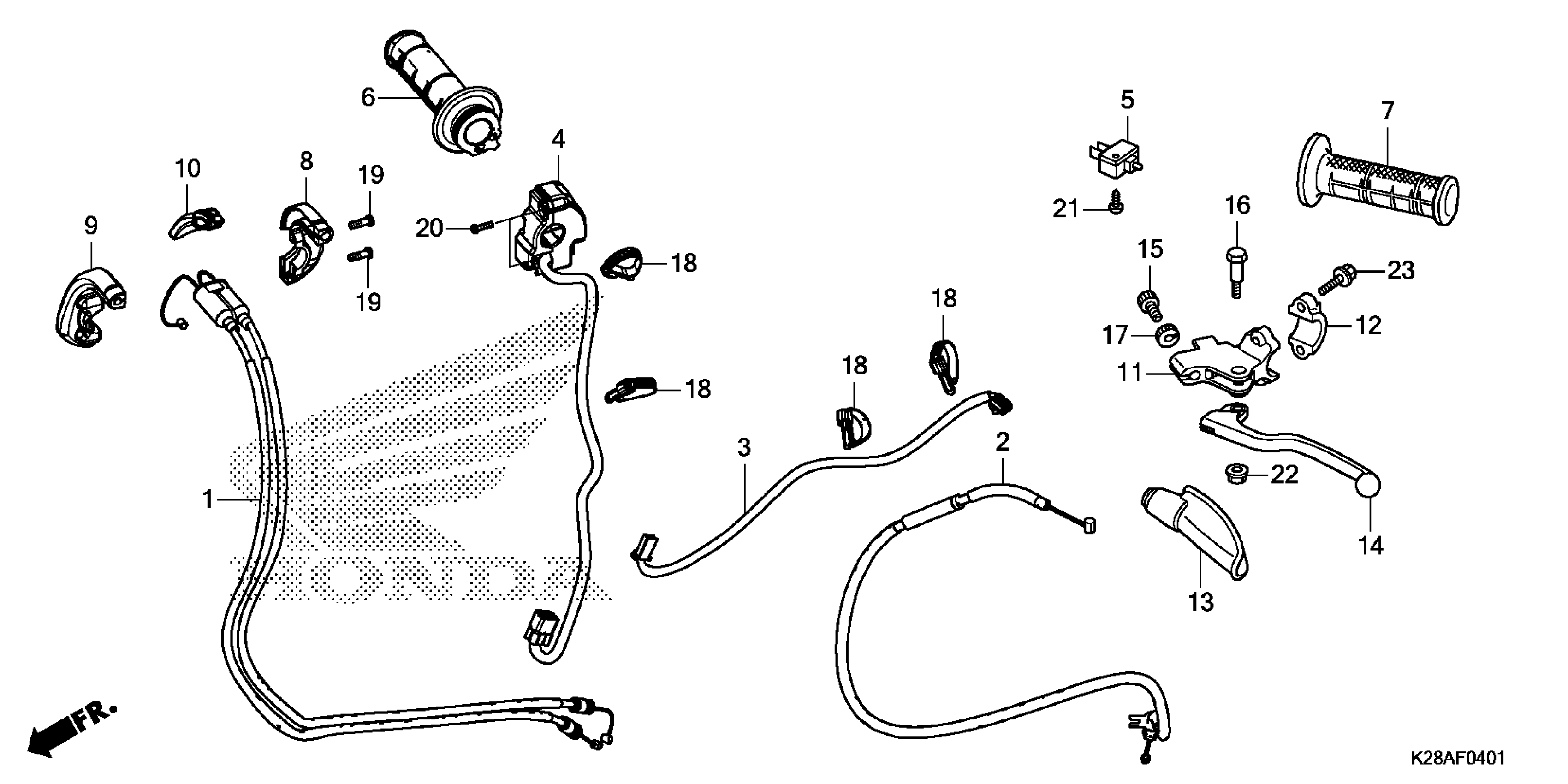

Honda CRF125FA (21) MOTORCYCLE, CHN, VIN# LALJE034-M3300001 HANDLE LEVER@SWITCH@CABLE (2) Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-K28-A61

$73.57

2

CABLE, CLUTCH

22870-K28-A61

$32.93

3

SUB-HARNESS, CLUTCH

32101-K28-A60

$13.62

4

SWITCH ASSY., ENGINE STOP

35130-K28-A61

$85.01

5

SWITCH ASSY., CLUTCH

35330-MK5-003

$17.76

6

GRIP, THROTTLE

53140-K28-A60

$28.35

7

GRIP, L. HANDLE (COO)

53166-K28-305

$10.78

7

GRIP, L. HANDLE (COO) This part replaces 53166-K28-910.

53166-K28-305

$10.78

8

HOUSING, THROTTLE (UPPER)

53167-K28-A60

$27.69

9

HOUSING, THROTTLE (LOWER)

53168-K28-A60

$30.49

10

SLIDER, THROTTLE CABLE

53169-K28-A60

$7.27

11

BRACKET, L. HANDLE LEVER

53172-K28-910

$66.95

12

HOLDER, L. LEVER BRACKET

53174-K28-910

$16.86

13

COVER, L. HANDLE LEVER

53177-KZZ-900

$2.92

14

LEVER, L. HANDLE (COO)

53178-K28-305

$44.30

14

LEVER, L. HANDLE (COO) This part replaces 53178-K28-910.

53178-K28-305

$44.30

15

BOLT, WIRE ADJUSTING

53192-KTJ-900

$5.78

16

BOLT, HANDLE LEVER PIVOT

90113-KYY-900

$3.04

17

NUT, FIXING

90321-KTJ-900

$10.23

18

BAND, WIRE

90650-KW3-000

$4.48

19

SCREW, PAN (5X16) SCREW, PAN (4X20)

93500-05016-0G

$1.49

20

SCREW-WASHER (4X14)

93892-04014-07

$1.49

21

SCREW, TAPPING (3X10)

93901-32220

$1.49

22

NUT, FLANGE (6MM)

94050-06000

$1.49

23

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
