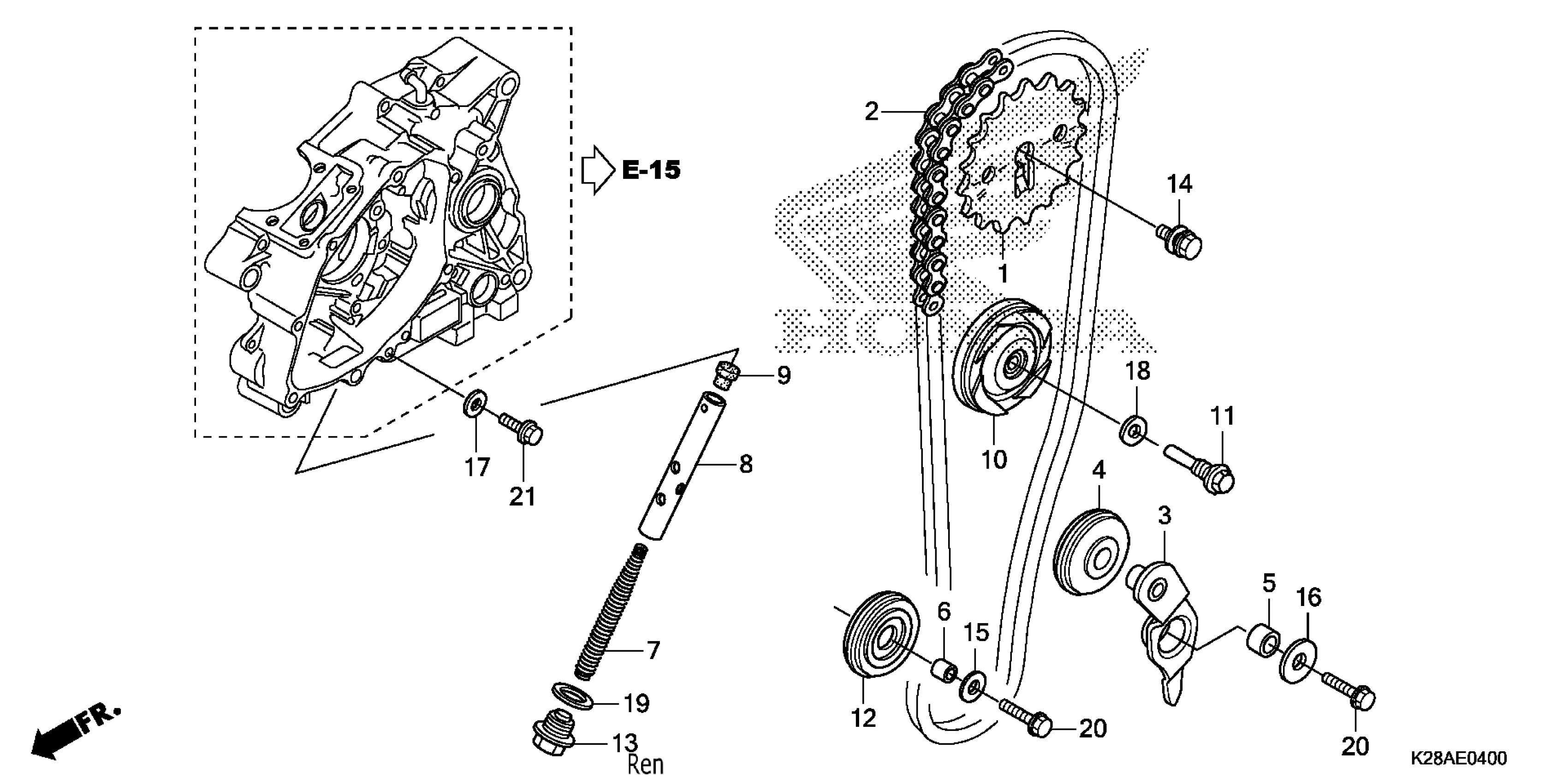

Honda CRF125FA (21) MOTORCYCLE, CHN, VIN# LALJE034-M3300001 CAM CHAIN@TENSIONER Diagram

SPROCKET, CAM (32T)

14321-KYY-900

$30.80

CHAIN, CAM (90L) (DAIDO)

14401-KWB-601

$10.83

ARM, CAM CHAIN TENSIONER

14500-KYY-901

$18.22

ROLLER, CAM CHAIN TENSIONER

14502-K28-911

$14.57

COLLAR, CAM CHAIN TENSIONER

14531-KYY-900

$2.09

COLLAR, CAM CHAIN ROLLER

14532-KWS-900

$2.09

SPRING, CAM CHAIN TENSIONER

14541-GB4-681

$4.54

ROD, TENSIONER PUSH

14550-KYY-900

$14.12

HEAD, CAM CHAIN TENSIONER PUSH ROD

14566-086-030

$2.15

ROLLER, CAM CHAIN GUIDE

14610-KYY-901

Unavailable

PIN, GUIDE ROLLER

14615-KFL-850

$0.78

ROLLER, CAM CHAIN GUIDE

14670-KYY-901

$17.47

BOLT, SEALING (14MM)

90081-035-000

$4.05

BOLT-WASHER (8X22)

90082-KYY-900

$1.72

WASHER, PLAIN (6.5X15)

90401-KYY-900

$2.06

WASHER (6.5X26X2.3)

90404-KYY-900

$2.43

WASHER, SEALING (6.2X12X1.2)

90463-KRM-840

$1.50

WASHER (8MM)

90475-KWB-600

$0.81

WASHER, SEALING (14MM)

90544-KF0-000

$3.11

BOLT, FLANGE (6X25)

95701-06025-00

$1.66

BOLT, FLANGE (6X14)

96001-06014-00

$1.66
