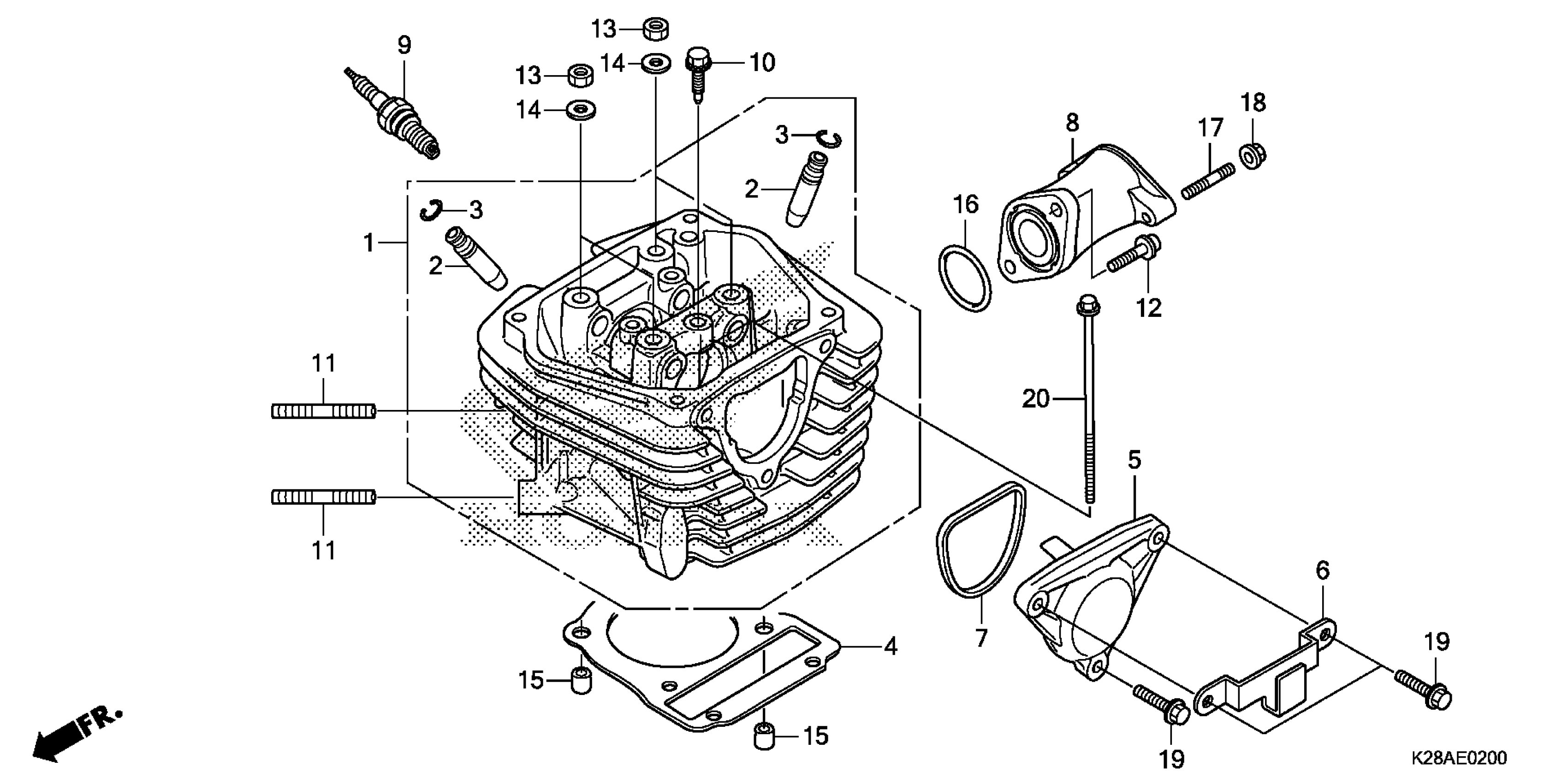

Honda CRF125FA (18) CRF125F, CHN, VIN# LALJE034-J3000001 TO LALJE034-J3099999 CYLINDER HEAD (1) Diagram

CYLINDER HEAD

12200-KYY-970

$306.16

GUIDE, VALVE (OVER SIZE)

12204-KVY-305

$9.67

CLIP, VALVE GUIDE

12206-KPL-900

$3.12

GASKET, CYLINDER HEAD

12251-KYY-901

$14.28

COVER, L. CYLINDER HEAD SIDE

12341-KYY-900

$20.39

STAY, TANK SHROUD

12345-K28-910

$6.22

GASKET, L. CYLINDER HEAD SIDE COVER

12395-KYY-900

$3.86

INSULATOR, CARBURETOR

16210-K28-910

$67.70

SPARK PLUG (CPR6EA-9) (NGK)

31916-KPH-901

$9.15

SPARK PLUG (CPR7EA-9) (NGK) | (Optional).

31917-KPH-901

$3.91

BOLT, SPECIAL (6X21)

90014-KYY-900

$2.19

BOLT, STUD (8X22)

90035-KRM-840

$9.25

BOLT, FLANGE SOCKET (6X22)

90091-KRM-840

$0.67

NUT, HEX. (7MM)

90201-GCC-000

$0.86

WASHER (7.2X16X2.5)

90401-GFM-900

$1.58

PIN, DOWEL SPECIAL (8X14)

90701-KVR-C00

$1.67

O-RING (27X2.0)

91313-KVR-C00

$2.77

BOLT, STUD (6X16)

92900-06016-0B

$1.35

NUT, FLANGE (6MM)

94050-06080

$0.59

BOLT, FLANGE (6X25)

96001-06025-00

$1.91

BOLT, FLANGE (6X110)

96001-06110-00

$3.54
