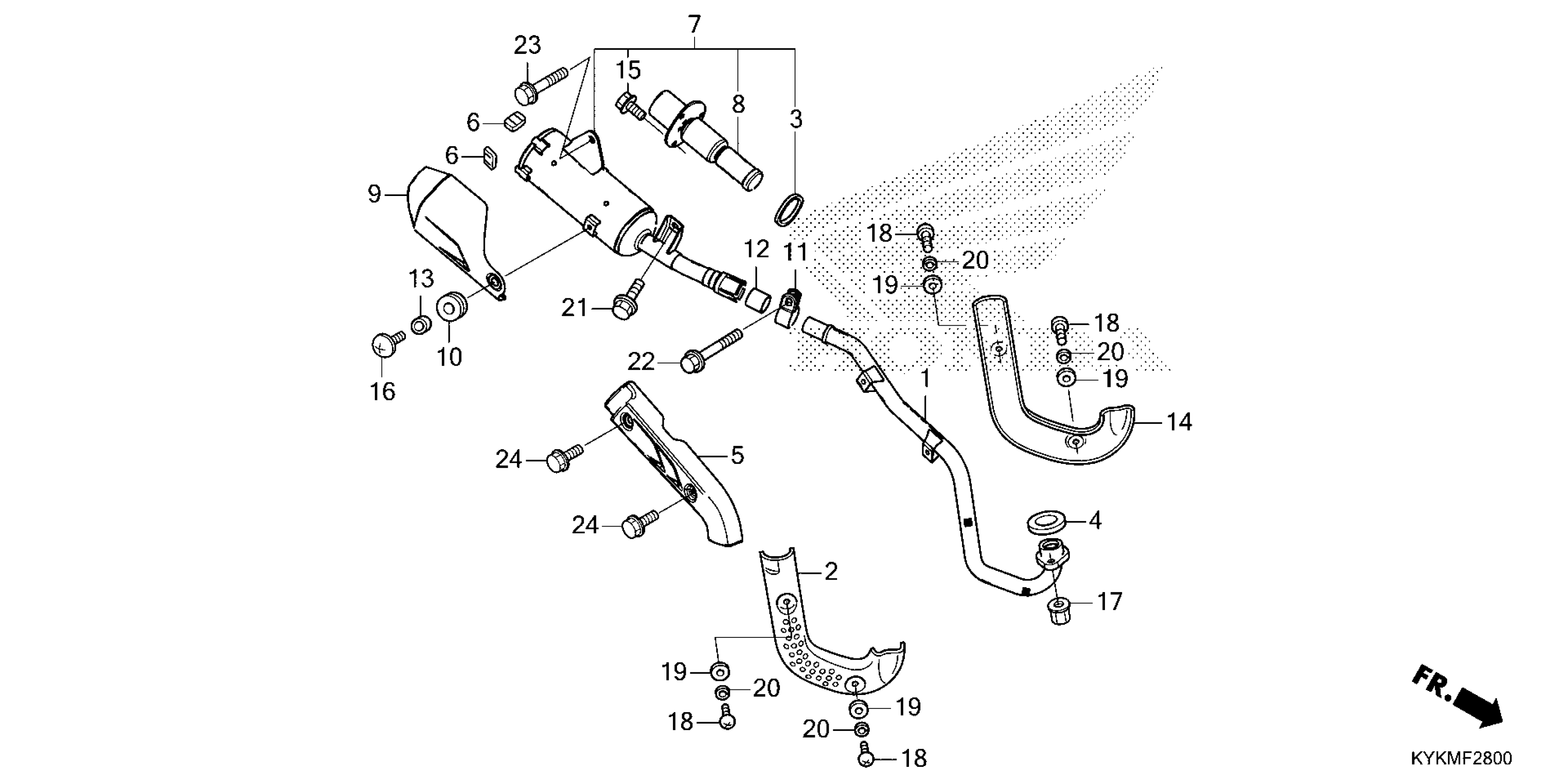

Honda CRF110FAC (23) MOTORCYCLE, CHN, VIN# LALJE021-P3100001 TO LALJE021-P3199999 MUFFLER Diagram

#

Description
Price

1

PIPE, EX.

18210-KYK-D10

$90.13

2

COVER A, EX. PIPE

18240-KYK-910

$37.01

3

GASKET A, EX. PIPE

18291-KR1-680

$7.80

4

GASKET, EX. PIPE

18291-GE2-920

$6.02

4

GASKET, EX. PIPE This part replaces 18291-KVR-C00.

18291-GE2-920

$6.02

5

COVER C, EX. PIPE

18291-KYK-D10

$20.25

6

RUBBER, PROTECTOR GASKET

18293-KYY-900

$2.36

7

MUFFLER ASSY.

18300-KYK-D10

$233.06

8

ARRESTER, SPARK (COO)

18317-KYK-305

$62.73

8

ARRESTER, SPARK (COO) This part replaces 18318-KYK-305.

18317-KYK-305

$62.73

9

COVER, MUFFLER

18330-KYK-D10

$20.94

10

RUBBER, MUFFLER MOUNTING

18345-KTJ-900

$3.06

11

BAND, MUFFLER

18371-K28-A60

$29.65

12

GASKET, MUFFLER

18391-K28-A60

$11.75

13

COLLAR, MUFFLER MOUNTING

18422-KTJ-900

$2.48

14

COVER B, EX. PIPE

18450-KYK-910

$15.71

15

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.48

15

BOLT, FLANGE (6X10)

96001-06010-07

$1.48

16

BOLT, BODY COVER SETTING

90107-KWK-900

$2.72

17

NUT, FLANGE (8MM)

90301-KWB-600

$0.80

18

SCREW, PAN (5X6)

93500-05006-0G

$0.75

19

WASHER, PLAIN (5MM)

94101-05700

Unavailable

20

WASHER, SPRING (5MM)

94111-05700

$1.03

21

BOLT, FLANGE (8X14)

95701-08014-00

$1.19

22

BOLT, FLANGE (8X32)

95701-08032-00

$1.26

23

BOLT, FLANGE (8X35)

95701-08035-07

$1.28

24

BOLT, FLANGE (6X10)

96001-06010-07

$1.48
