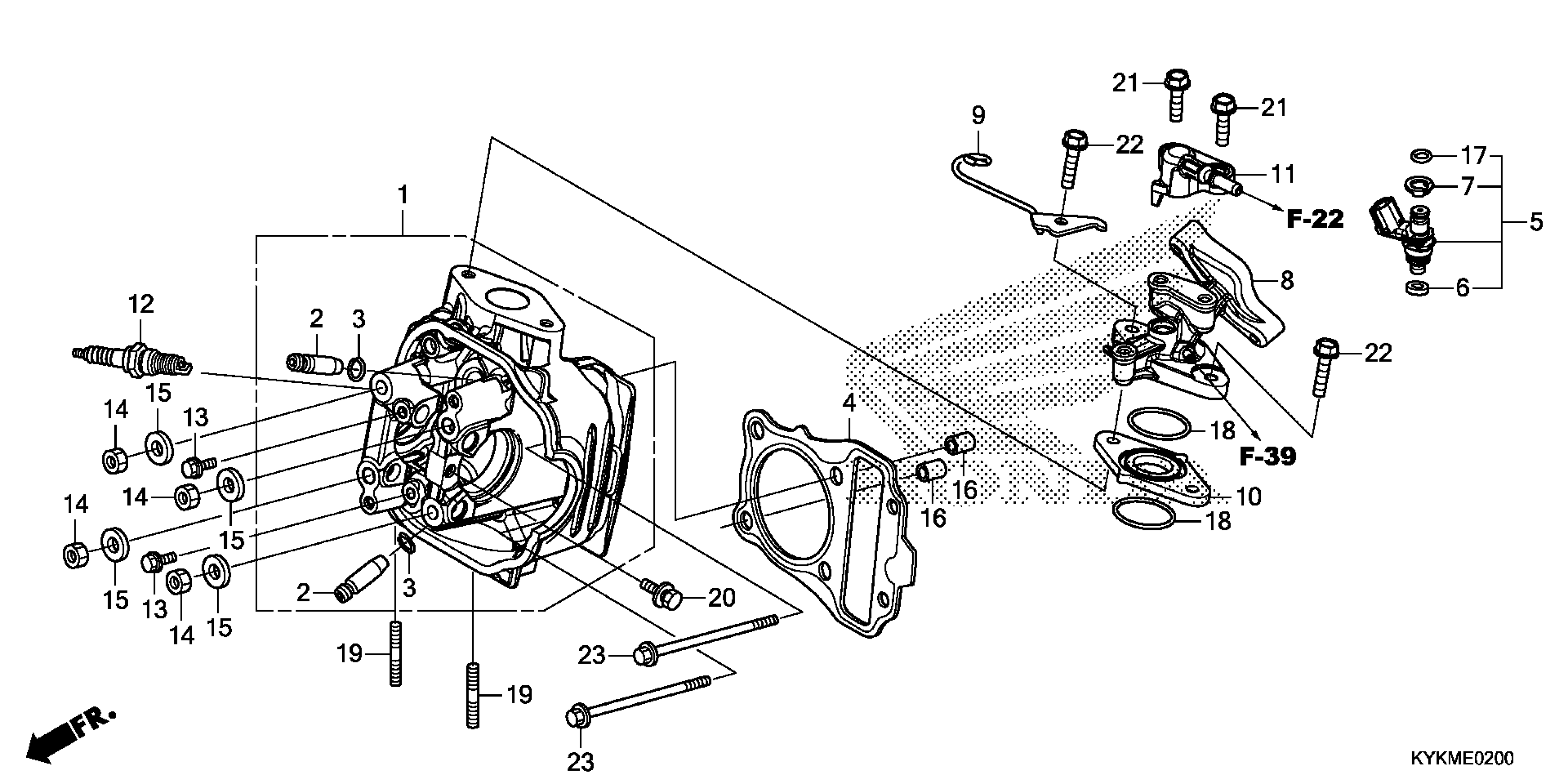

Honda CRF110FAC (23) MOTORCYCLE, CHN, VIN# LALJE021-P3100001 TO LALJE021-P3199999 CYLINDER HEAD Diagram

CYLINDER HEAD

12200-KYK-D10

$232.28

GUIDE, VALVE (OVER SIZE)

12204-KVY-305

$9.67

CLIP, VALVE GUIDE

12206-KPL-900

$3.12

GASKET, CYLINDER HEAD

12251-KWB-601

$10.57

INJECTOR ASSY., FUEL

16450-K28-A61

$118.78

RING, SEAL (Honda Code 8954000)

16472-KPC-D50

$2.04

DUST SEAL RING

16473-HR3-A42

$5.73

PIPE, INLET

17110-KYK-D10

$199.01

CLAMP, HIGH TENSION CORD

17118-KYK-D10

$4.94

INSULATOR, IN. PIPE

17119-KSS-J00

$10.43

JOINT, INJECTOR

17560-KYK-D10

$29.42

SPARK PLUG (CPR6EA-9S) (NGK)

31916-KWB-601

$3.97

BOLT, FLANGE (5X12)

90002-KWB-600

$0.86

NUT, HEX. (7MM)

90201-GCC-000

$0.86

WASHER (7.2X16X2.5)

90402-KWW-740

$2.07

PIN, DOWEL SPECIAL (8X14)

90701-KVR-C00

$1.67

O-RING (6.3X2.2)

91301-GGL-J01

$9.39

O-RING (29X2.4)

91304-KSS-B00

$7.00

BOLT 2, STUD (8X32)

92900-08032-0E

$2.07

BOLT-WASHER (6X12)

93404-06012-00

$1.48

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

BOLT, FLANGE (6X25)

95701-06025-00

$1.64

BOLT, FLANGE (6X100)

96001-06100-00

$1.78
