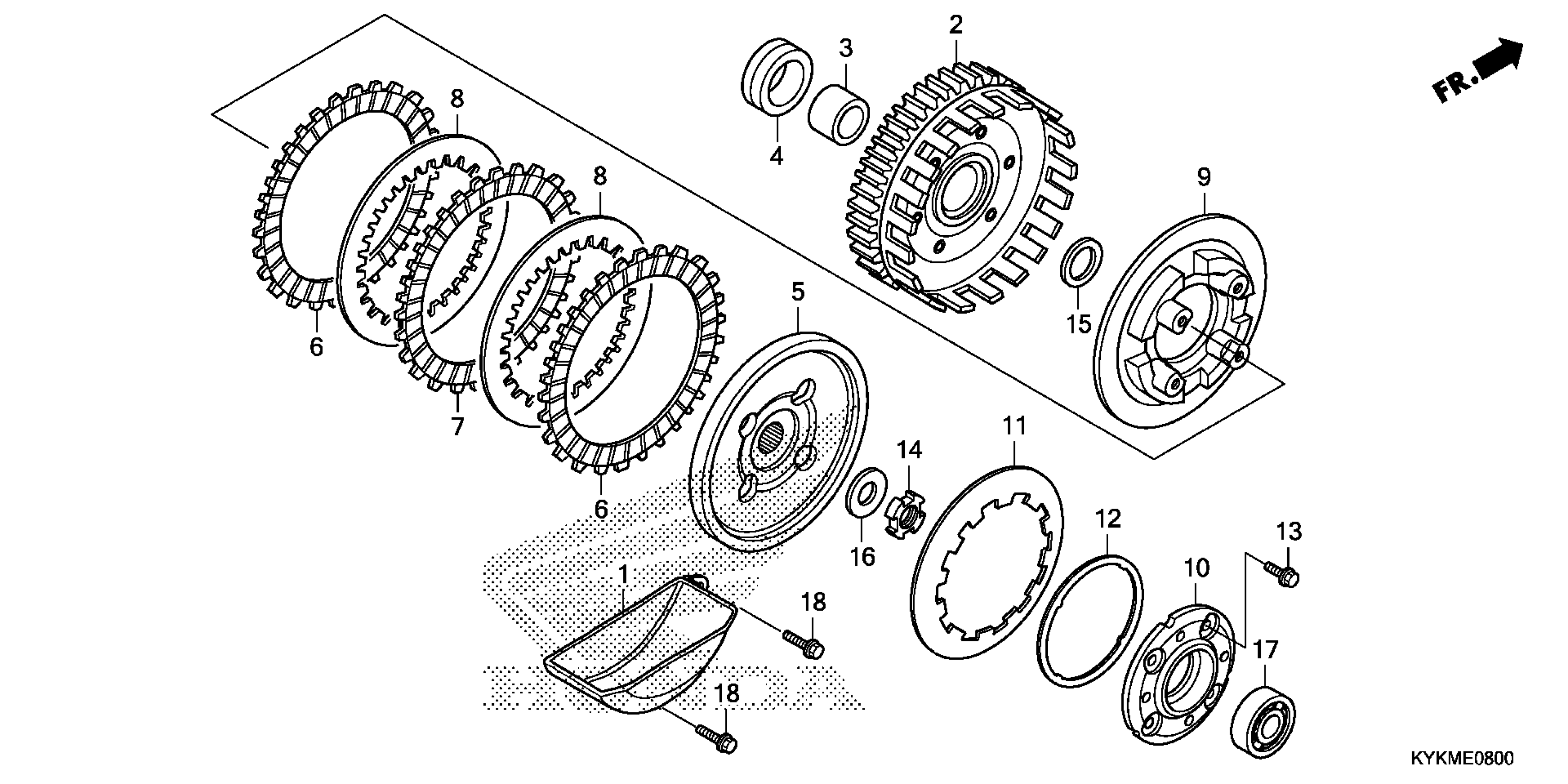

Honda CRF110FAC (21) MOTORCYCLE, CHN, VIN# LALJE021-M3800001 TO LALJE021-M3899999 CLUTCH Diagram

PLATE, OIL SEPARATE

15661-KVR-C00

$14.23

CLUTCH OUTER (69T)

22110-KWW-C01

$199.07

GUIDE, CLUTCH (OUTER)

22115-KPH-900

$1.75

COLLAR, CLUTCH (OUTER)

22116-KWW-740

$3.93

CENTER, CLUTCH (F.C.C.)

22121-KWW-741

$8.51

DISK, CLUTCH FRICTION (F.C.C.)

22201-KWW-741

$3.96

DISK B, CLUTCH FRICTION

22204-KWW-741

$3.82

PLATE, CLUTCH

22321-KWW-741

$5.16

PLATE, CLUTCH PRESSURE (F.C.C.)

22351-KWW-741

$8.33

PLATE, CLUTCH LIFTER

22361-KWW-741

$6.19

SPRING, CLUTCH (F.C.C.) This part replaces 22401-KWW-A81.

22401-KWW-741

$3.58

SPRING, CLUTCH (F.C.C.)

22401-KWW-741

$3.58

SEAT, CLUTCH SPRING

22402-KWW-741

$2.03

BOLT, SPECIAL FLANGE (6X16)

90050-KWB-601

$0.93

NUT B, LOCK (14MM)

90231-198-010

$4.43

WASHER, THRUST (17MM)

90403-KPH-900

$0.94

WASHER (14.1MM)

90462-KWW-740

$1.84

BEARING, RADIAL BALL (6200)

91016-KZV-J01

$8.86

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.61
