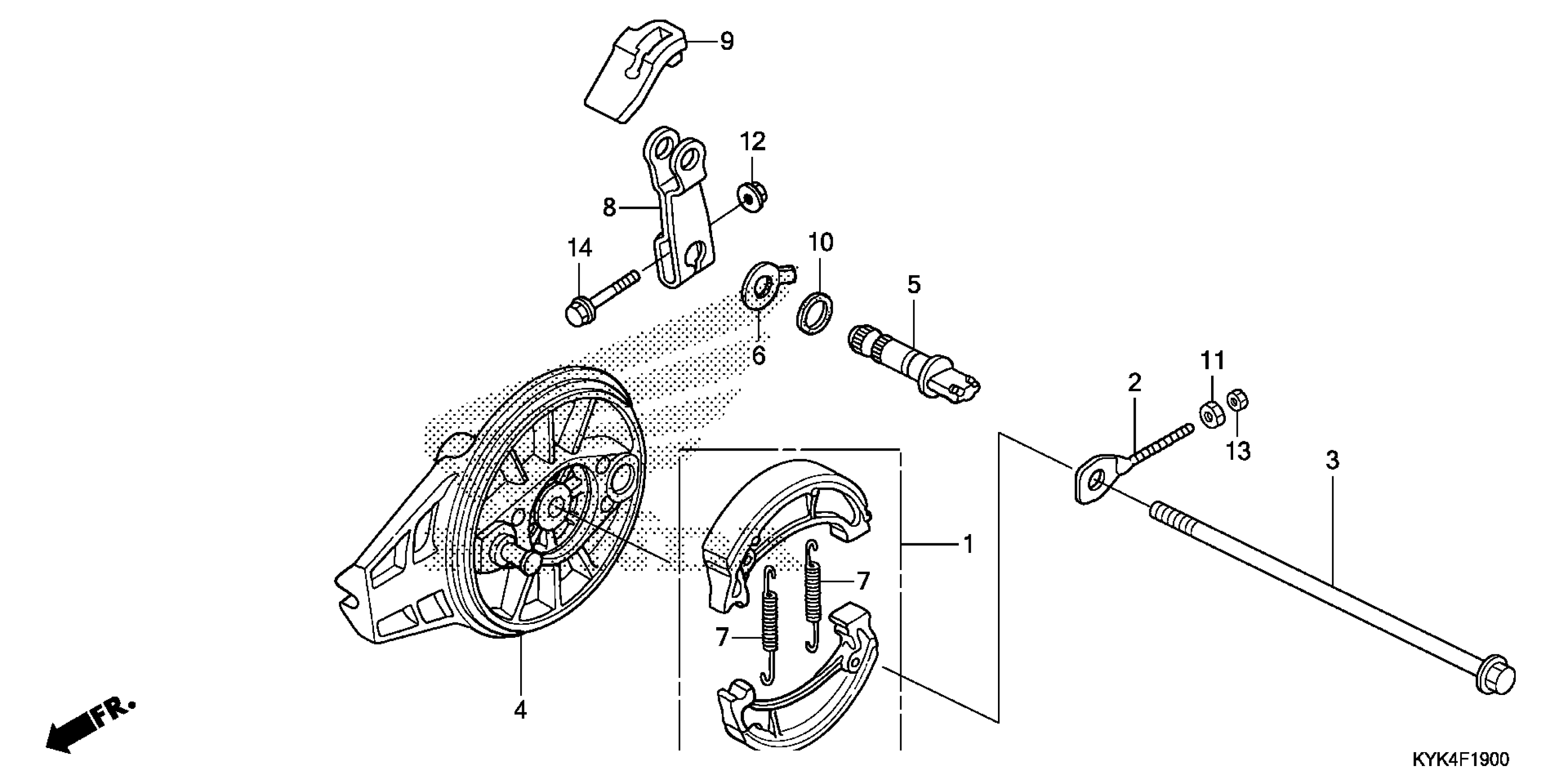

Honda CRF110FAC (19) MOTORCYCLE, CHN, VIN# LALJE021-K9000001 TO LALJE021-K9099999 REAR BRAKE PANEL Diagram

SHOE SET, BRAKE (JB NH FE)

06450-KYK-910

$29.82

ADJUSTER, CHAIN

40543-KYK-910

$3.45

AXLE, RR. WHEEL

42301-KYK-910

$16.97

PANEL, RR.

43100-KYK-910

$183.59

CAM, RR. BRAKE

43141-KYK-910

$19.24

INDICATOR, RR. BRAKE

43145-KYK-910

$4.26

SPRING, BRAKE SHOE

45151-GFC-900

$2.92

ARM, RR. BRAKE

43410-KYK-910

$9.78

COVER, RR. BRAKE ARM

43411-KYK-910

$7.13

DUST SEAL, BRAKE CAM (NOK)

45134-KB7-005

$2.97

NUT, SPECIAL (6MM)

90302-KBP-900

$1.94

NUT, FLANGE (6MM) (PT)

90302-KYA-601

$2.23

NUT, HEX. (6MM)

94001-06080-0S

$1.49

BOLT, FLANGE (6X35) (Honda Code 2112209)

96001-06035-00

$1.49
