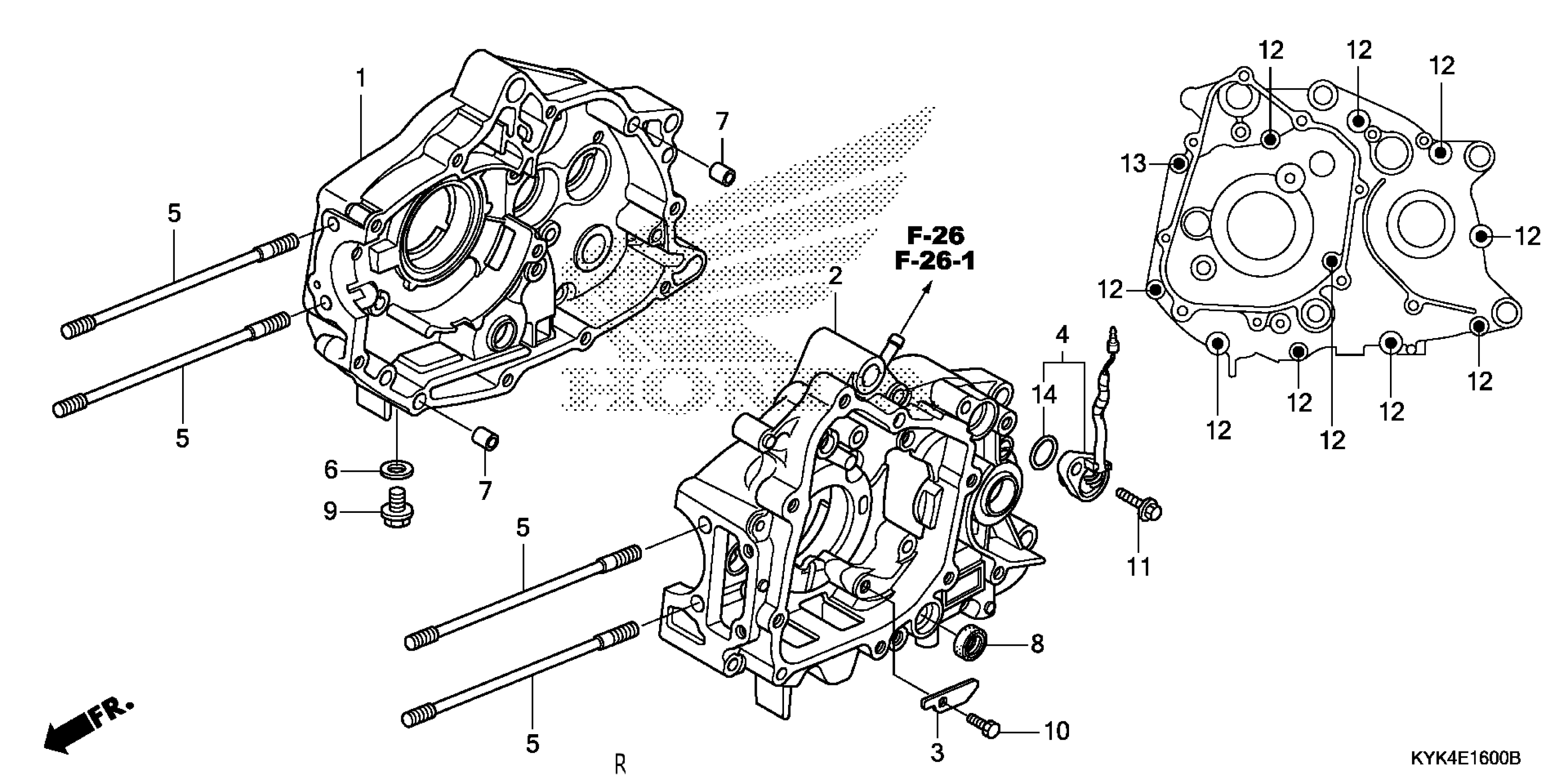

Honda CRF110FAC (15) MOTORCYCLE, CHN, VIN# LALJE021-F3200001 TO LALJE021-F3299999 CRANKCASE Diagram

CRANKCASE, R.

11100-KWW-740

$283.75

CRANKCASE, L.

11200-K09-C00

$324.07

PLATE, OIL STOPPER

11218-KWW-740

$4.59

CONTACT ASSY., NEUTRAL SWITCH

35759-KYK-911

$20.82

BOLT, STUD (7X180.5)

90031-KWB-600

$1.49

GASKET, DRAIN PETCOCK

90407-KVR-C00

$2.41

PIN, DOWEL SPECIAL (10X14)

90703-KVR-C00

$2.56

OIL SEAL (11.6X22X7)

91208-KWW-C01

$4.45

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

BOLT, HEX. (6X14)

93101-06014-0A

$1.49

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.62

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

BOLT, FLANGE (6X75)

96001-06075-00

$2.23

O-RING (21.0X2.4)

91301-KWW-C01

$2.33
