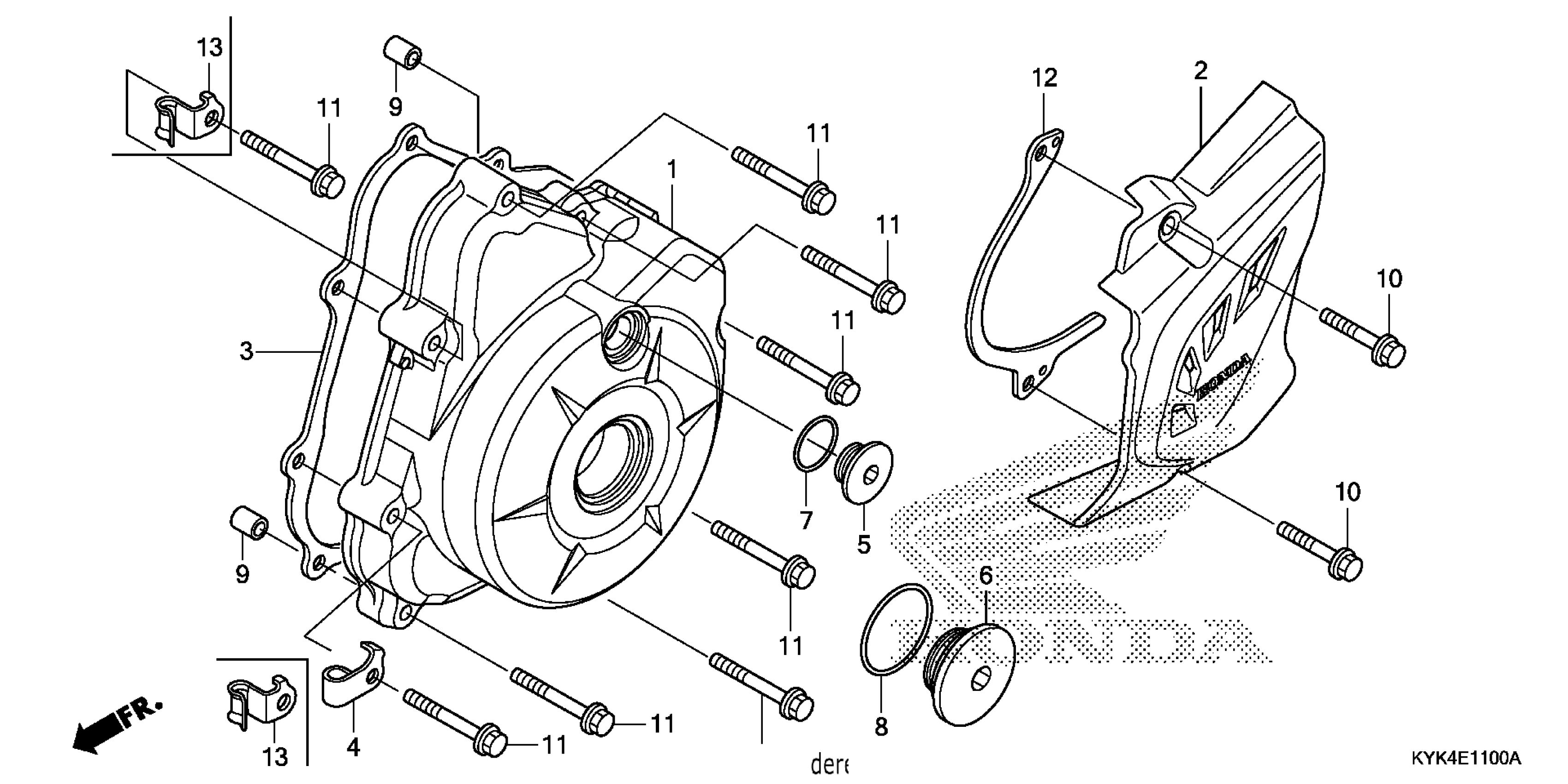

Honda CRF110FAC (14) MOTORCYCLE, CHN, VIN# LALJE021-E3100001 TO LALJE021-E3199999 LEFT CRANKCASE COVER Diagram

COVER, L. CRANKCASE

11341-KWV-000

$61.65

COVER, L. RR.

11361-KYK-910

$44.54

GASKET, L. CRANKCASE COVER This part replaces 11395-KWB-920.

11395-K58-TC0

$11.31

GASKET, L. CRANKCASE COVER

11395-K58-TC0

$11.31

CLAMP, OVERFLOW

16236-KWW-A00

$1.49

CAP (14MM)

90084-KTT-900

$8.66

CAP (30MM)

90087-KWW-C00

$13.31

O-RING (13.8X2.5)

91308-KVR-C00

$1.82

O-RING (30MM)

91312-KWW-C00

$2.48

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

BOLT, FLANGE (6X35) (Honda Code 2112209)

96001-06035-00

$1.49

GUIDE, DRIVE CHAIN

11363-KYK-910

$17.20
