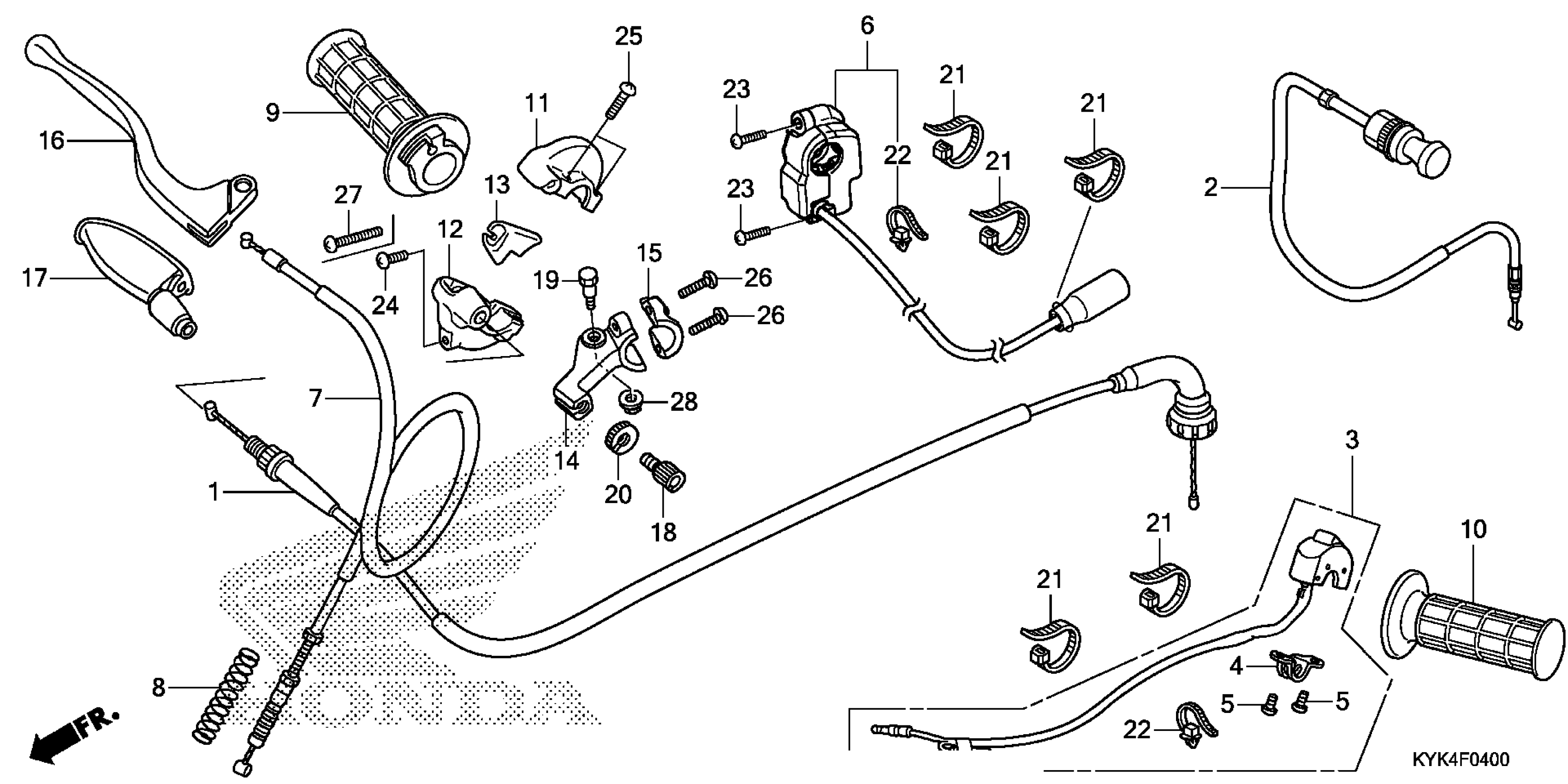

Honda CRF110FAC (14) MOTORCYCLE, CHN, VIN# LALJE021-E3100001 TO LALJE021-E3199999 HANDLE LEVER@SWITCH@CABLE (1) Diagram

CABLE SET, THROTTLE

17920-KYK-305

$39.43

CABLE, CHOKE

17950-KYK-911

$37.59

SWITCH ASSY., ENGINE STOP

35130-KYK-911

$44.28

PLATE, SETTING

35132-KR5-013

$5.00

SCREW, PAN (4X12)

35133-KJ2-003

$2.39

SWITCH ASSY., STARTER

35150-KYK-912

$56.77

CABLE, FR. BRAKE

45450-KYK-911

$20.08

SPRING, BRAKE CABLE

45454-KYK-910

$4.96

PIPE, THROTTLE GRIP (COO)

53140-KYK-305

$13.23

GRIP, L. HANDLE (COO)

53166-KYK-305

$6.81

HOUSING, THROTTLE (LOWER) (UPPER)

53167-KYK-910

$29.71

HOUSING, THROTTLE (UPPER) (UNDER)

53168-KYK-910

$29.69

SLIDER, THROTTLE

53169-KYK-910

$7.30

BRACKET, R. HANDLE LEVER

53171-KYK-910

$22.93

HOLDER, LEVER BRACKET

53173-958-000

$10.59

LEVER, R. HANDLEBAR

53175-GCF-A20

$34.79

LEVER, R. HANDLEBAR This part replaces 53175-GCF-305.

53175-GCF-A20

$34.79

COVER, R. HANDLEBAR (USED AS L. IN THIS BLOCK)

53176-428-010

$10.00

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

BOLT, HANDLEBAR LEVER PIVOT

90113-429-770

$5.94

NUT, FIXING

90321-315-670

$7.31

BAND, WIRE

90650-KW3-000

$4.48

CLIP, HARNESS BAND (155.3MM) (BLACK)

91540-STK-003

$3.88

SCREW, PAN (4X14)

93500-04014-0G

$1.49

SCREW, PAN (5X10)

93500-05010-0G

$1.49

SCREW, PAN (5X16) SCREW, PAN (4X20)

93500-05016-0G

$1.49

SCREW, PAN (5X18)

93500-05018-0A

$1.49

SCREW, PAN (5X40)

93500-05040-0G

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49
