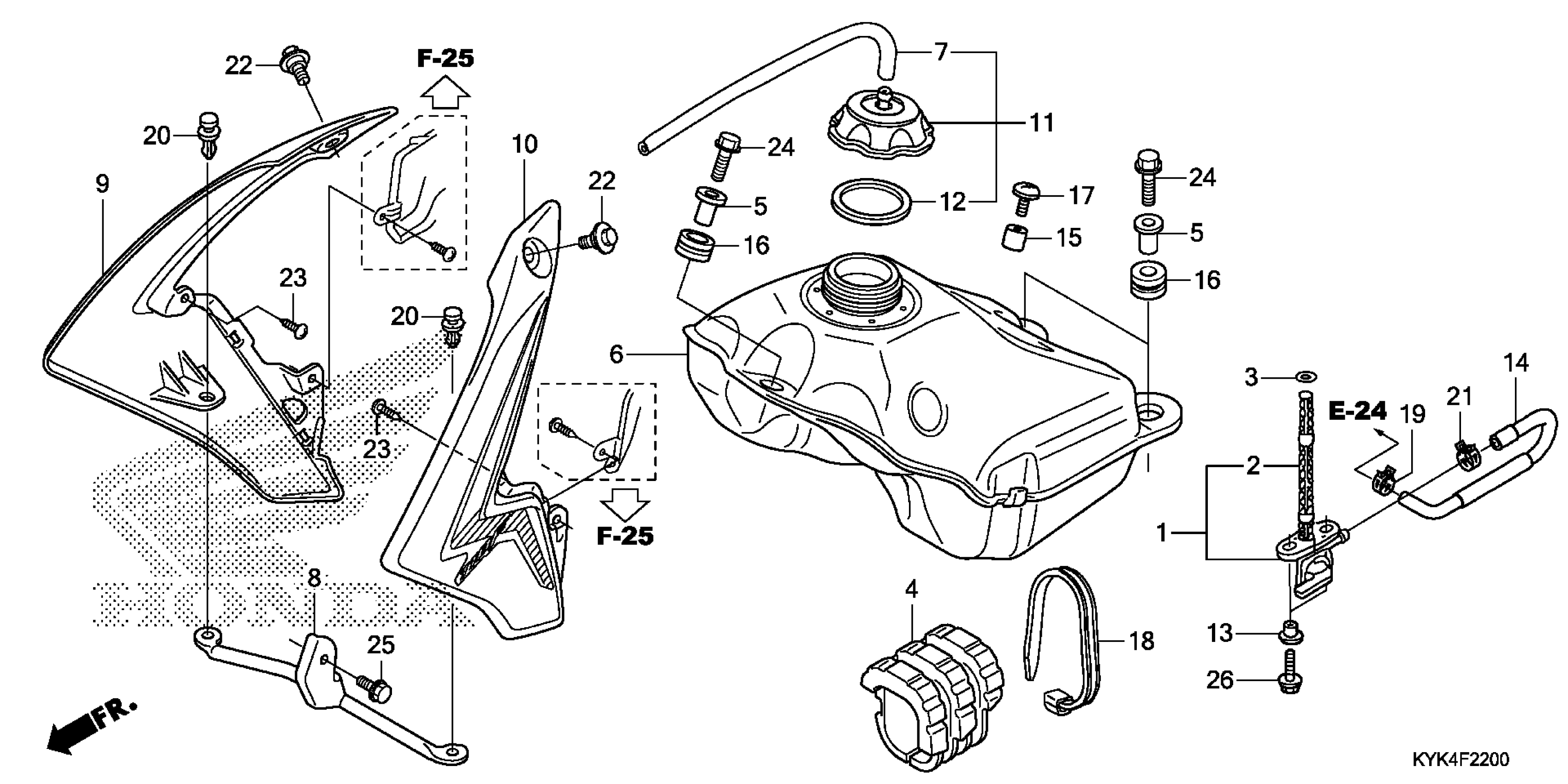

Honda CRF110FAC (14) MOTORCYCLE, CHN, VIN# LALJE021-E3100001 TO LALJE021-E3199999 FUEL TANK (1) Diagram

PETCOCK ASSY.

16950-KSJ-A21

$57.28

SCREEN SET, FUEL STRAINER

16952-KSJ-A21

$20.10

O-RING (11.8X3.55)

16997-467-000

$2.04

RUBBER, TANK SETTING

17504-KYK-910

$35.44

COLLAR, TANK MOUNT

17509-KYK-910

$5.18

TANK, FUEL

17510-KYK-910

$325.90

TUBE, FUEL CAP BREATHER

17521-429-000

$6.66

STAY, SHROUD

17541-KYK-910

$105.75

SHROUD SET A, R. TANK (TYPE1) (WL)

17545-KYK-910ZA

$65.53

SHROUD SET A, L. TANK (TYPE1) (WL)

17555-KYK-910ZA

$65.51

CAP ASSY., FUEL TANK

17620-GEL-770

$28.87

GASKET, FUEL CAP

17624-GEL-770

$4.38

COLLAR, FUEL TANK SETTING

17626-467-000

$4.56

TUBE, FUEL

17681-KYK-910

$17.00

COLLAR, SEAT MOUNT

77207-KYK-910

$2.82

CUSHION, RR. FENDER

80103-MG2-000

$2.91

SCREW, SPECIAL (6X17)

90381-KCW-870

$2.80

BAND, WIRE HARNESS

90620-SB2-003

$25.84

CLAMP, TUBE (8.0)

90652-KSJ-A21

$1.34

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.54

CLAMP, TUBE (8.5)

90653-KSJ-A20

$1.34

BOLT, SPECIAL (6MM)

90653-KYK-910

Unavailable

SCREW, TAPPING (4X10)

93913-24120

$0.90

BOLT, FLANGE (8X25)

95701-08025-00

$1.65

BOLT, FLANGE (6X12)

96001-06012-00

$1.79

BOLT, FLANGE (6X14)

96001-06014-00

Unavailable
