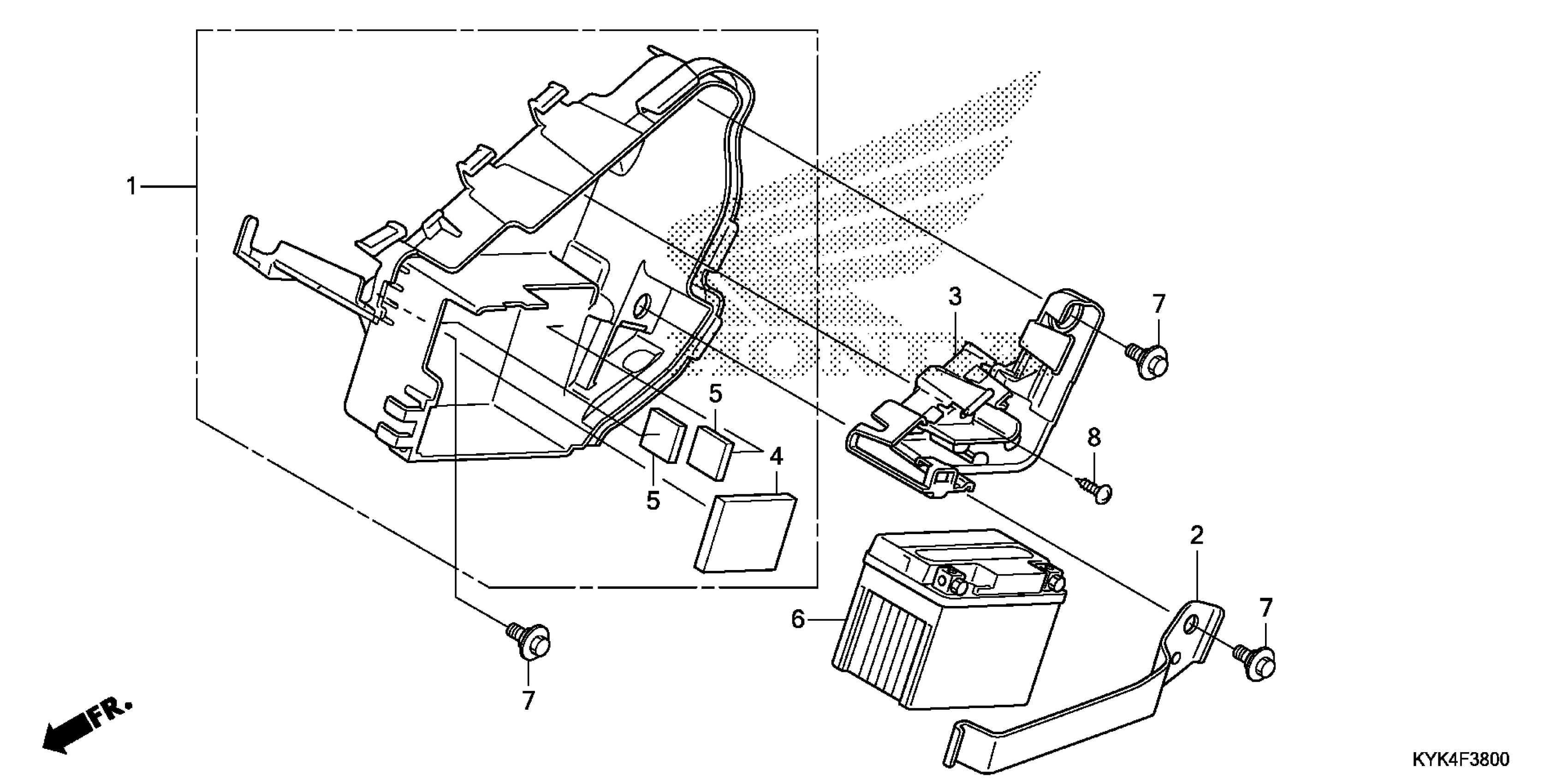

Honda CRF110FAC (14) MOTORCYCLE, CHN, VIN# LALJE021-E3100001 TO LALJE021-E3199999 BATTERY (1) Diagram

#

Description

Price

1

CASE ASSY., BATTERY

17231-KYK-910

$48.19

2

BAND, BATTERY

17233-KYK-910

$9.20

3

HOLDER, HARNESS

17234-KYK-910

$11.13

4

CUSHION A, BATTERY

17235-KYK-910

$2.65

5

CUSHION B, BATTERY

17236-KYK-910

$2.32

6

BATTERY (YTX4L-BS) (YUASA) (MSDS) This part replaces 31500-GFC-782.

31500-GFC-782AH

$66.43

7

BOLT, SPECIAL (6MM)

90653-KYK-910

Unavailable

8

SCREW, TAPPING (4X10)

93913-24120

$0.83
