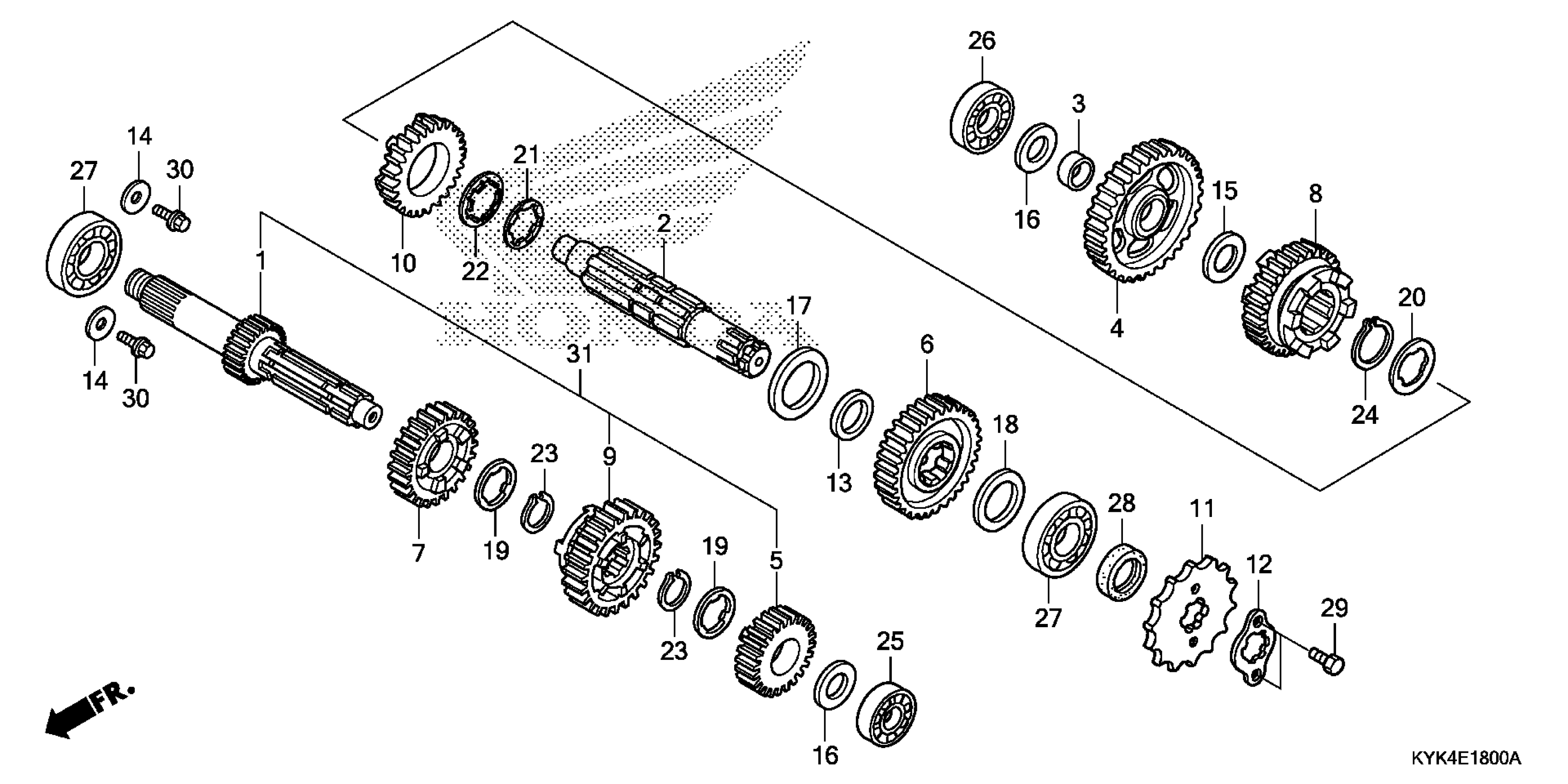

Honda CRF110FAC (13) MOTORCYCLE, CHN, VIN# LALJE021-D3000022 TO LALJE021-D3099999 TRANSMISSION Diagram

#

Description
Price

2

COUNTERSHAFT

23221-KZV-J00

$77.80

3

BUSH (15MM)

23415-KWW-A80

$7.25

4

GEAR, COUNTERSHAFT FIRST (34T)

23421-KZV-J00

$58.31

6

GEAR, COUNTERSHAFT SECOND (28T)

23441-KZV-J00

$52.48

7

GEAR, MAINSHAFT THIRD (22T)

23451-KWW-740

$49.34

8

GEAR, COUNTERSHAFT THIRD (25T)

23461-KWW-740

$61.11

10

GEAR, COUNTERSHAFT FOURTH (22T)

23481-KZV-J00

$51.00

11

SPROCKET, DRIVE (14T)

23801-KWW-740

$12.49

12

PLATE, FIXING

23802-KVR-C00

$4.28

13

COLLAR, LOCK PLATE

23911-KPH-900

$1.49

14

WASHER (6.2X19X2.3)

90407-KWW-740

$2.21

15

WASHER, THRUST (15MM)

90412-187-000

$2.05

16

WASHER, SPECIAL (12X23)

90412-KPH-900

$1.49

17

WASHER, THRUST (20MM)

90452-413-000

$2.53

18

WASHER, THRUST (17MM)

90452-GB4-770

$1.86

19

WASHER, SPLINE (17MM)

90461-035-000

$2.57

20

WASHER, SPLINE (20MM)

90461-459-010

$5.54

21

WASHER, SPLINE (20MM)

90461-KWB-600

$1.49

22

WASHER, LOCK (20MM)

90465-KWB-600

$1.49

23

CIRCLIP (17MM)

90601-KYY-900

$2.92

24

CIRCLIP (20MM)

90602-KYY-900

$3.62

25

BEARING, RADIAL BALL (6001) This part replaces 91013-KZV-J01.

96100-60010-00

$17.13

25

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13

26

BEARING, RADIAL BALL (6201)

91014-KZV-J01

$15.93

27

BEARING, RADIAL BALL (6203) (NA USE ALT:96100-62030-00)

91015-KZV-J01

Unavailable

28

OIL SEAL (17X29X5)

91204-KWB-601

$1.49

29

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

30

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

31

SHAFT SET, MAIN (SECOND&FOURTH)

23010-KZV-305

$87.97
