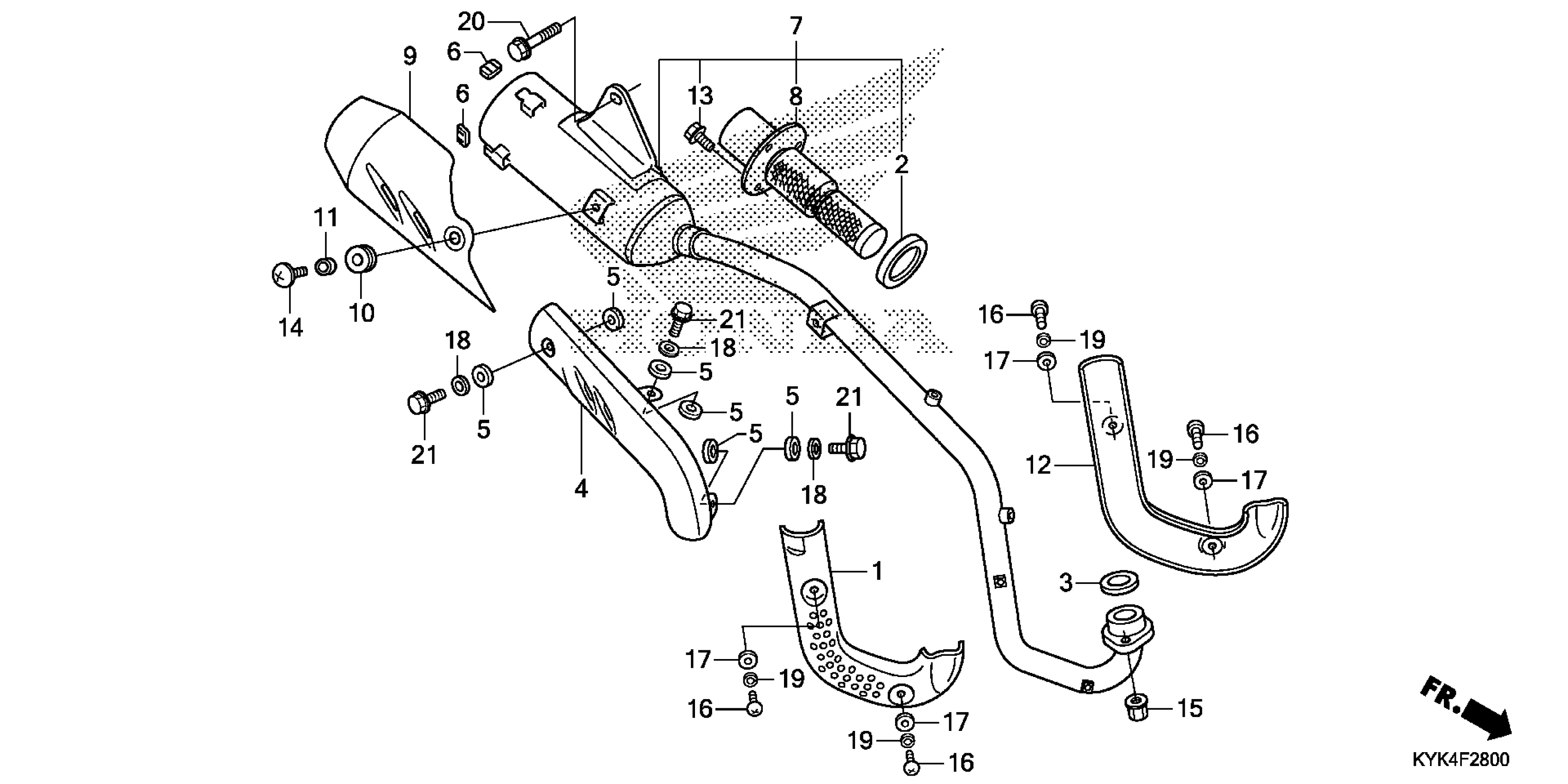

Honda CRF110FAC (13) MOTORCYCLE, CHN, VIN# LALJE021-D3000022 TO LALJE021-D3099999 MUFFLER (1) Diagram

COVER A, EX. PIPE

18240-KYK-910

$37.01

GASKET A, EX. PIPE

18291-KR1-680

$7.80

GASKET, EX. PIPE

18291-GE2-920

$6.02

GASKET, EX. PIPE This part replaces 18291-KVR-C00.

18291-GE2-920

$6.02

COVER C, EX. PIPE

18291-KYK-910

$24.84

GASKET, PROTECTOR

18292-KBR-000

$3.21

RUBBER, PROTECTOR GASKET

18293-KYY-900

$2.36

MUFFLER ASSY. (COO)

18300-KYK-305

$312.22

ARRESTER, SPARK (COO)

18317-KYK-305

$62.73

COVER, MUFFLER (COO)

18330-KYK-305

$23.19

RUBBER, MUFFLER MOUNTING

18345-KTJ-900

$3.06

COLLAR, MUFFLER MOUNTING

18422-KTJ-900

$2.48

COVER B, EX. PIPE

18450-KYK-910

$15.71

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.48

BOLT, FLANGE (6X10)

96001-06010-07

$1.48

BOLT, BODY COVER SETTING

90107-KWK-900

$2.72

NUT, FLANGE (8MM)

90301-KWB-600

$0.80

SCREW, PAN (5X6)

93500-05006-0G

$0.75

WASHER, PLAIN (5MM)

94101-05700

Unavailable

WASHER, PLAIN (6MM)

94101-06700

$0.86

WASHER, SPRING (5MM)

94111-05700

$1.03

BOLT, FLANGE (8X35)

95701-08035-00

$2.09

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

Unavailable
