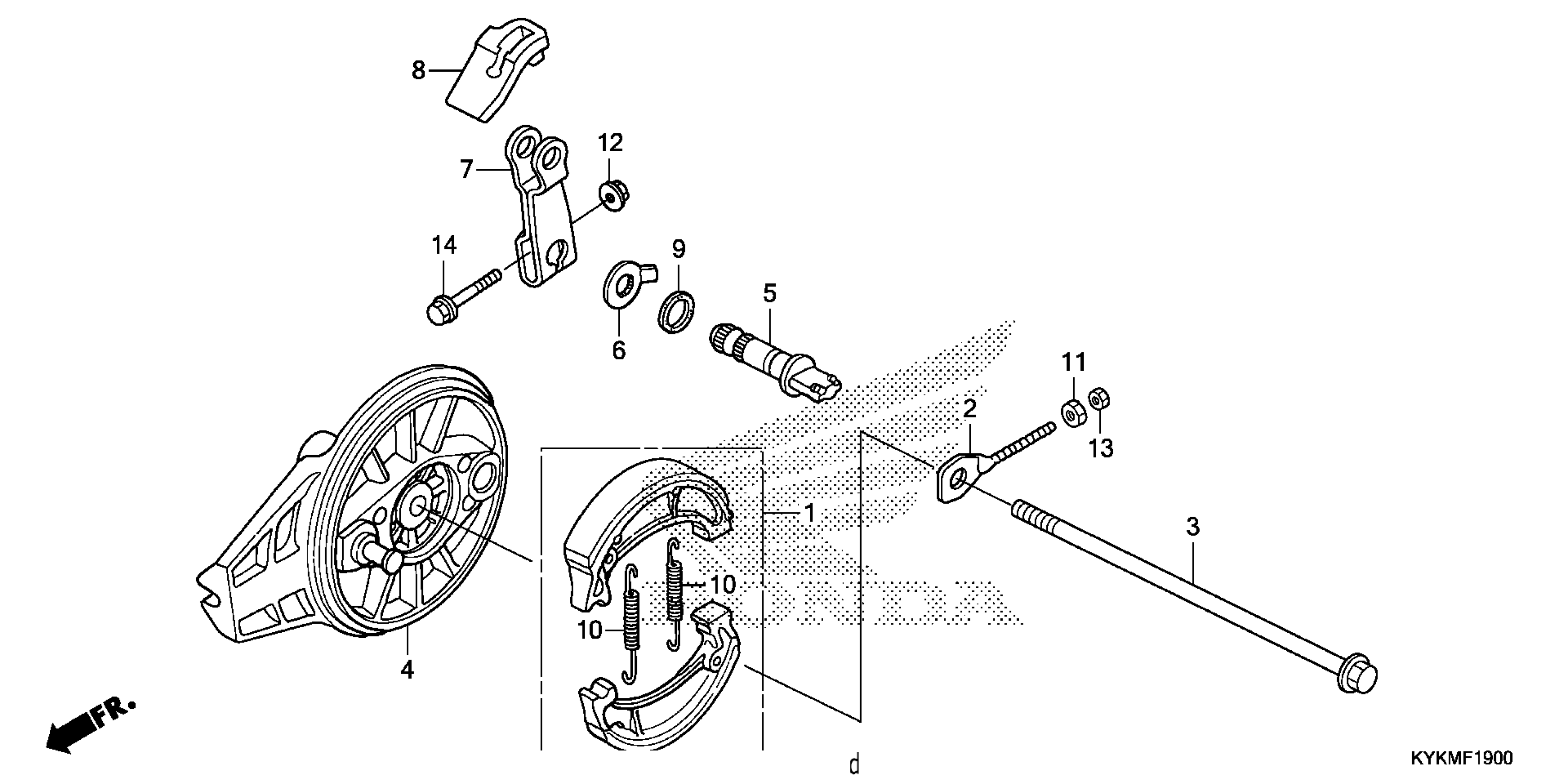

Honda CRF110FA (24) MOTORCYCLE, CHN, VIN# LALJE024-R3600001 TO LALJE024-R3699999 REAR BRAKE PANEL Diagram

SHOE SET, BRAKE (JB NH FE)

06450-KYK-910

$27.39

ADJUSTER, CHAIN

40543-KYK-910

$3.29

AXLE, RR. WHEEL

42301-KYK-910

$15.12

PANEL, RR.

43100-KYK-910

$163.65

CAM, RR. BRAKE

43141-KYK-910

$17.66

INDICATOR, RR. BRAKE

43145-KYK-910

$3.94

ARM, RR. BRAKE

43410-KYK-910

$9.00

COVER, RR. BRAKE ARM

43411-KYK-910

$6.80

DUST SEAL, BRAKE CAM (NOK)

45134-KB7-005

$2.83

SPRING, BRAKE SHOE

45151-GFC-900

$2.74

NUT, SPECIAL (6MM)

90302-KBP-900

$1.88

NUT, FLANGE (6MM) (PT)

90302-KYA-601

$2.06

NUT, HEX. (6MM)

94001-06080-0S

$1.31

BOLT, FLANGE (6X35) (Honda Code 2112209)

96001-06035-00

Unavailable
