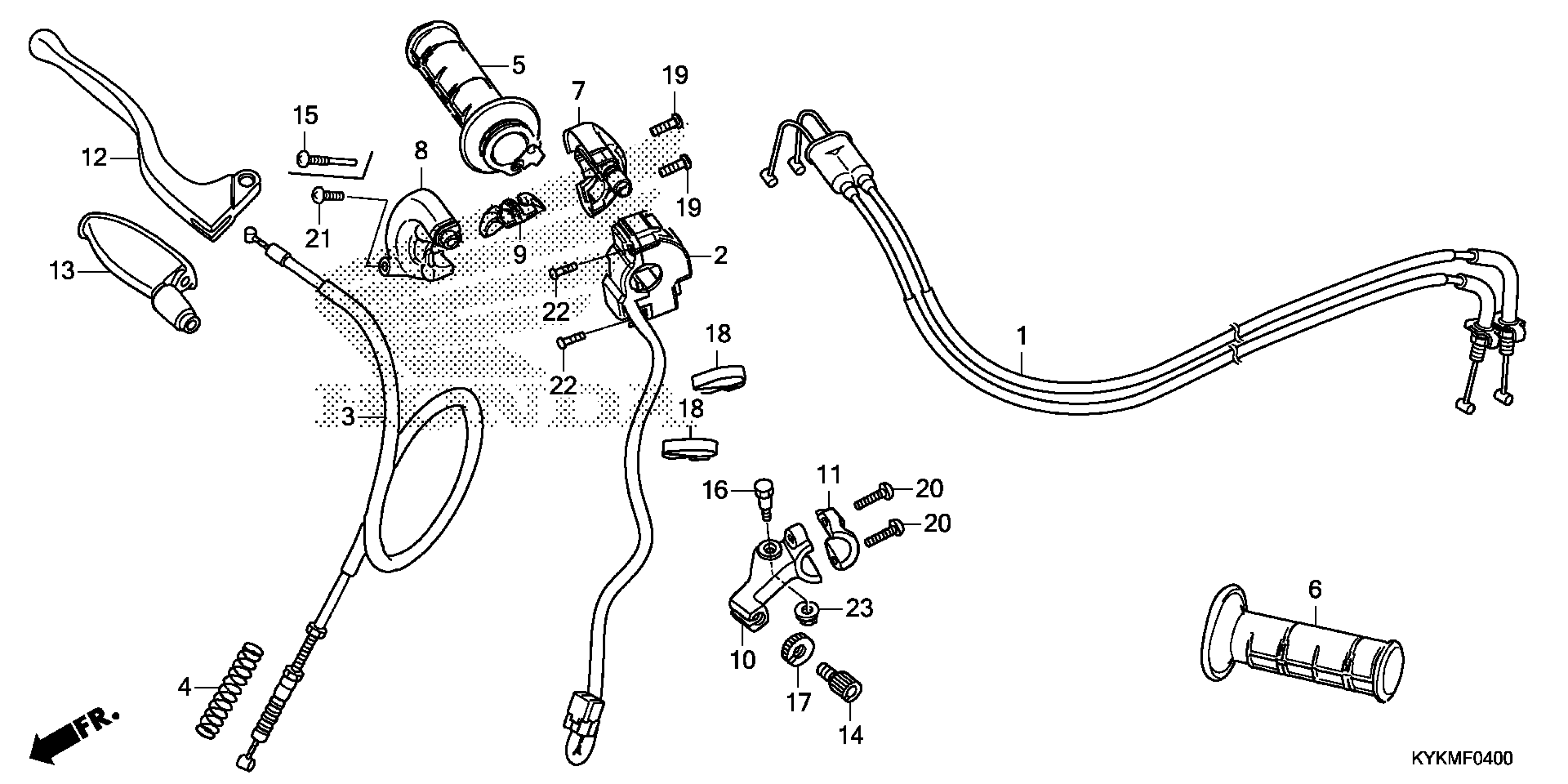

Honda CRF110FA (24) MOTORCYCLE, CHN, VIN# LALJE024-R3600001 TO LALJE024-R3699999 HANDLE LEVER@SWITCH@CABLE Diagram

CABLE, THROTTLE

17910-KYK-D11

$69.49

SWITCH ASSY., ENGINE STOP

35130-K28-A61

$85.01

CABLE, FR. BRAKE

45450-KYK-911

$20.08

SPRING, BRAKE CABLE

45454-KYK-910

$4.96

GRIP, THROTTLE

53140-KYK-D10

$21.04

GRIP, L. HANDLE

53166-KYK-D10

$13.65

HOUSING, THROTTLE (UPPER)

53167-K28-A60

$27.69

HOUSING, THROTTLE (LOWER)

53168-KYK-D10

$30.48

SLIDER, THROTTLE CABLE

53169-K28-A60

$7.27

BRACKET, R. HANDLE LEVER

53171-KYK-910

$22.93

HOLDER, LEVER BRACKET

53173-958-000

$10.59

LEVER, R. HANDLEBAR

53175-GCF-A20

$34.79

COVER, R. HANDLEBAR (USED AS L. IN THIS BLOCK)

53176-428-010

$10.00

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

SCREW, THROTTLE STOPPER

90110-KYK-D10

$2.84

BOLT, HANDLEBAR LEVER PIVOT

90113-429-770

$5.94

NUT, FIXING

90321-315-670

$7.31

BAND, WIRE

90650-KW3-000

$4.48

SCREW, PAN (5X16) SCREW, PAN (4X20)

93500-05016-0G

$1.49

SCREW, PAN (5X18)

93500-05018-0A

$1.49

SCREW, PAN (6X6)

93500-06006-0G

$1.49

SCREW-WASHER (4X14)

93892-04014-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49
