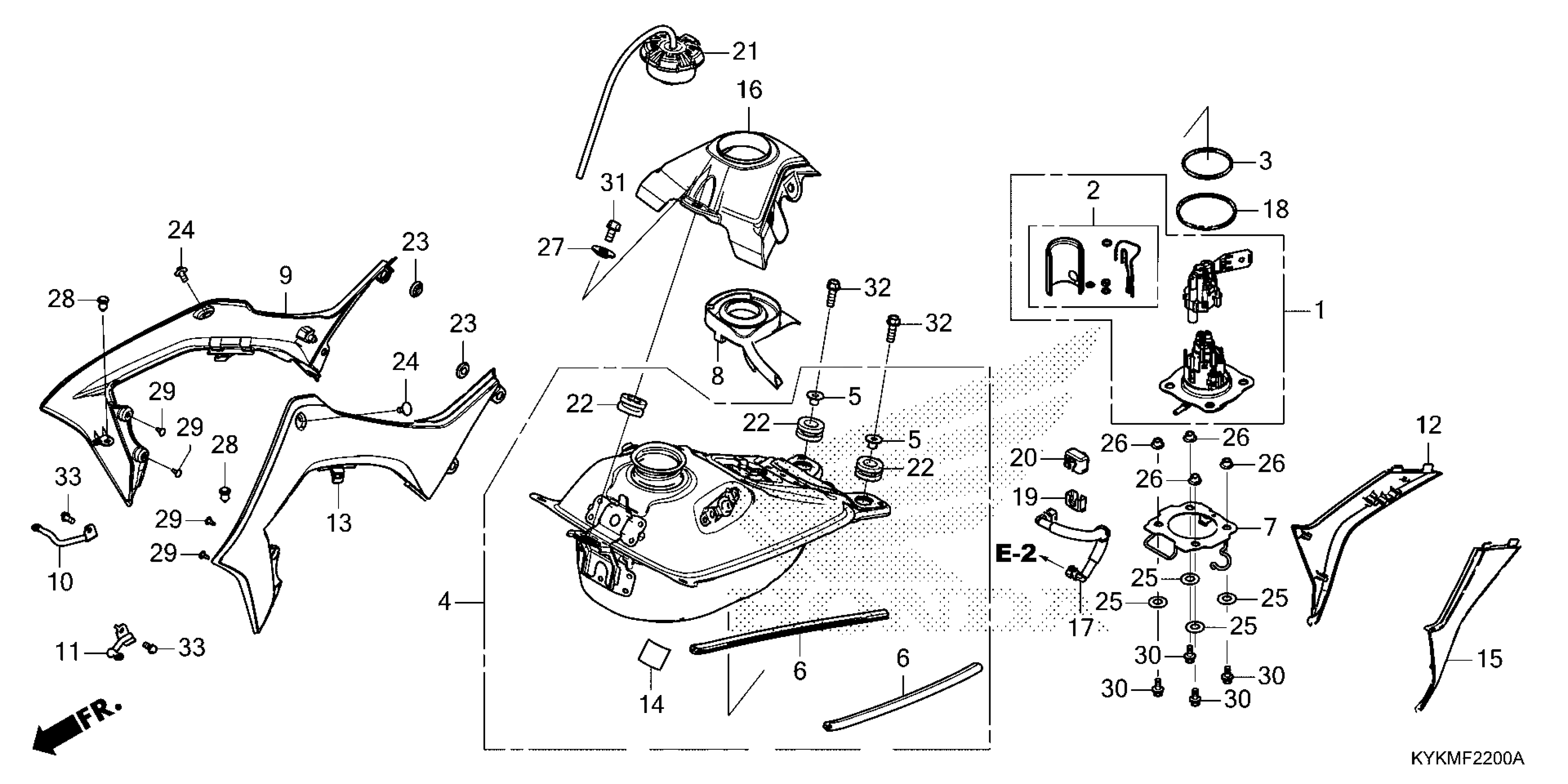

Honda CRF110FA (23) MOTORCYCLE, CHN, VIN# LALJE024-P3500001 TO LALJE024-P3599999 FUEL TANK Diagram

#

Description
Price

1

PUMP UNIT ASSY., FUEL (MSDS)

16700-K28-A61

$473.94

2

FILTER SET

16707-K45-N01

$21.58

3

O-RING (3.7X62.9)

16711-K99-A01

$31.26

4

TANK ASSY., FUEL

17500-K28-A60

$640.66

5

COLLAR, TANK MOUNT

17509-KYK-910

$5.18

6

TRIM, FUEL TANK

17515-MJE-D00

$12.90

7

PLATE, SETTING

17527-KYK-D10

$16.43

8

TRAY, FUEL

17530-K28-A60

$18.16

9

SHROUD SET A *R292R*

17540-KYK-H10ZA

$91.78

10

STAY, R. SHROUD

17541-KYK-D10

$11.51

11

STAY, L. SHROUD

17542-KYK-D10

$11.53

12

SHROUD B, R.

17546-K28-A60

$12.06

13

SHROUD SET A *R292R*

17550-KYK-H10ZA

$91.78

14

FILM, PROTECTOR

17556-K28-910

$4.31

15

SHROUD B, L.

17556-K28-A60

$12.06

16

COVER, CENTER TANK

17560-K28-A60

$24.13

17

HOSE, FUEL FEED

17571-KYK-D11

$45.46

18

DUST SEAL

17574-K99-A01

$5.20

19

COVER, FUEL CONNECTOR

17575-K99-A00

$2.25

20

RUBBER, FUEL CONNECTOR

17576-KRN-A90

$5.62

21

CAP COMP This part replaces 17620-K28-M21.

17620-K28-M22

$84.21

21

CAP COMP

17620-K28-M22

$84.21

22

RUBBER, RR. CARRIER MOUNTING

50329-KYA-B00

$3.10

23

GROMMET, SIDE COVER

83551-376-000

Unavailable

24

BOLT, SPECIAL (6MM)

90126-K99-A00

$1.56

25

WASHER, CONICAL SPRING FUEL PUMP

90502-MEN-A30

$2.46

26

COLLAR, FUEL PUMP

90503-K99-A00

$3.13

27

COLLAR, FR. TANK

90504-K28-A60

$3.43

28

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.54

29

SCREW, TAPPING (4X10)

93913-24120

$0.84

30

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.50

31

BOLT, FLANGE (8X16)

95701-08016-00

$1.66

32

BOLT, FLANGE (8X25)

95701-08025-00

$1.65

33

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.66
