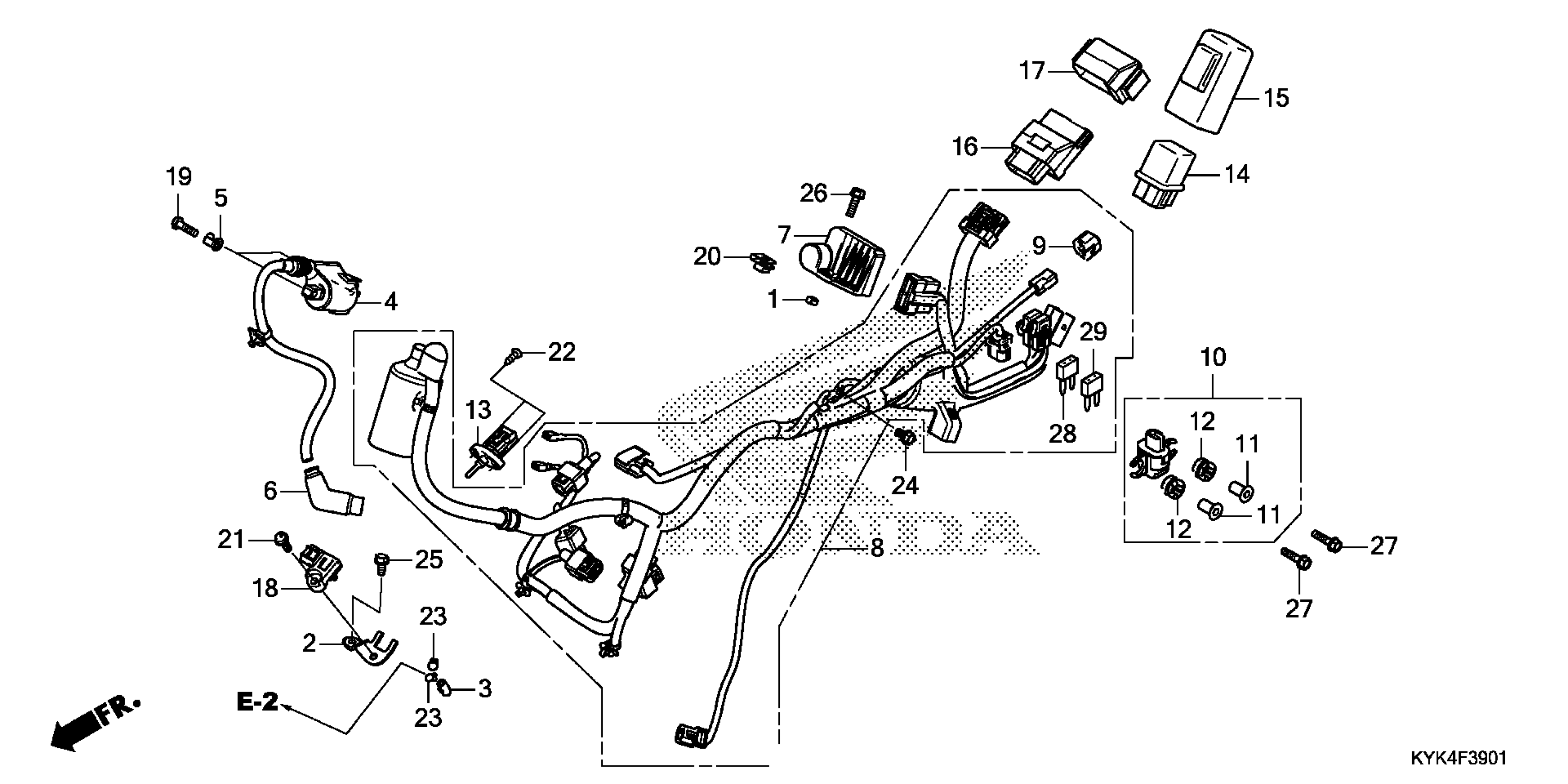

Honda CRF110FA (20) MOTORCYCLE, CHN, VIN# LALJE024-L3200001 WIRE HARNESS (2) Diagram

#

Description
Price

1

COLLAR, AIR CLEANER

17223-KVX-600

$2.61

2

STAY, PB

17535-KYK-D10

$12.21

3

TUBE, PB

17537-KYK-D10

$2.33

4

COIL, IGNITION

30510-KYK-D11

$66.93

5

SPACER, IGNITION COIL

30520-GFM-900

$2.61

6

CAP ASSY., NOISE SUPPRESSOR

30700-KYK-911

$27.23

7

RECTIFIER, REGULATE

31600-KZP-671

$166.74

8

WIRE HARNESS

32100-KYK-D10

$488.95

9

CONNECTOR, DUMMY (4P 090 M) (RED)

32606-GGC-C01

$4.77

10

SENSOR ASSY., BANK ANGLE

35160-KVS-J01

$44.31

11

COLLAR

35162-KVS-J00

$14.87

12

GROMMET

35163-KRE-G00

$21.72

13

SENSOR ASSY., AIR TEMPERATURE

37880-KWW-C01

$44.57

14

RELAY, STARTER

38501-GFM-901

$30.43

15

SUSPENSION, STARTER RELAY

38506-KYK-910

$2.80

16

PGM-FI UNIT

38770-KYK-D12

$263.83

17

SUSPENSION, ENGINE CONTROL UNIT

38771-KVG-V40

$2.85

18

SENSOR A, MASTER POWER PRESSURE

46401-TM8-A01

$202.72

19

BOLT, HEX. (6X22)

90106-GFM-900

$2.05

20

NUT, CLIP (6MM)

90311-KSH-900

$3.05

21

SCREW-WASHER (4X20)

93893-04020-08

$1.49

21

SCREW-WASHER (4X20)

93893-04020-18

Unavailable

22

SCREW, TAPPING (5X20)

93913-255J0

$1.72

23

CLIP, TUBE (B7) CLIP, TUBE (B6.5)

95002-02070

$1.80

24

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

25

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

26

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

27

BOLT, FLANGE (6X25) BOLT, FLANGE (6X16)

95701-06025-08

$1.72

28

FUSE, MINI (5A) (Honda Code 5026521)

98200-40500

$1.49

29

FUSE, MINI (10A)

98200-41000

$1.49
