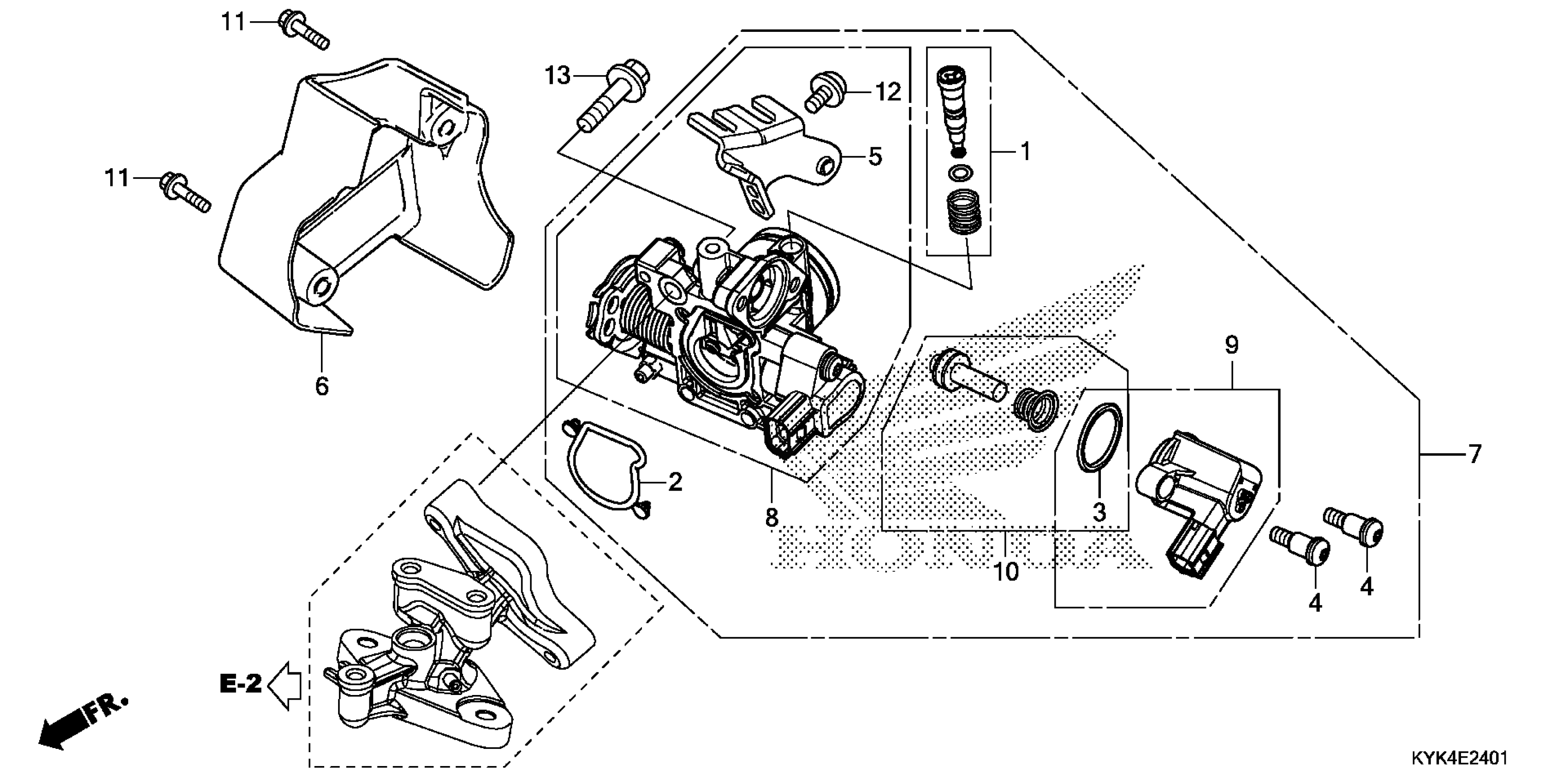

Honda CRF110FA (20) MOTORCYCLE, CHN, VIN# LALJE024-L3200001 THROTTLE BODY Diagram

SCREW SET

16016-K03-H11

$1.98

O-RING, THROTTLE BODY

16075-K25-901

$1.49

O-RING (1.9X20.4)

16077-KVB-S51

$1.49

SCREW, TORX (5X8.7)

16081-KYJ-901

$2.82

STAY, WIRE

16169-KYK-D11

$14.69

COVER, THROTTLE BODY

16305-KYK-D10

$15.97

BODY ASSY., THROTTLE (GQWJA A)

16400-KYK-D11

$244.54

BODY SET

16410-KYK-D11

$150.98

SOLENOID

16480-KVB-S51

$46.77

SEAT SET

16485-GGZ-J01

$4.19

SCREW-WASHER (5X14)

93891-05014-07

$1.49

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.49

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.49

BOLT, FLANGE (6X18)

96001-06018-00

$1.80
