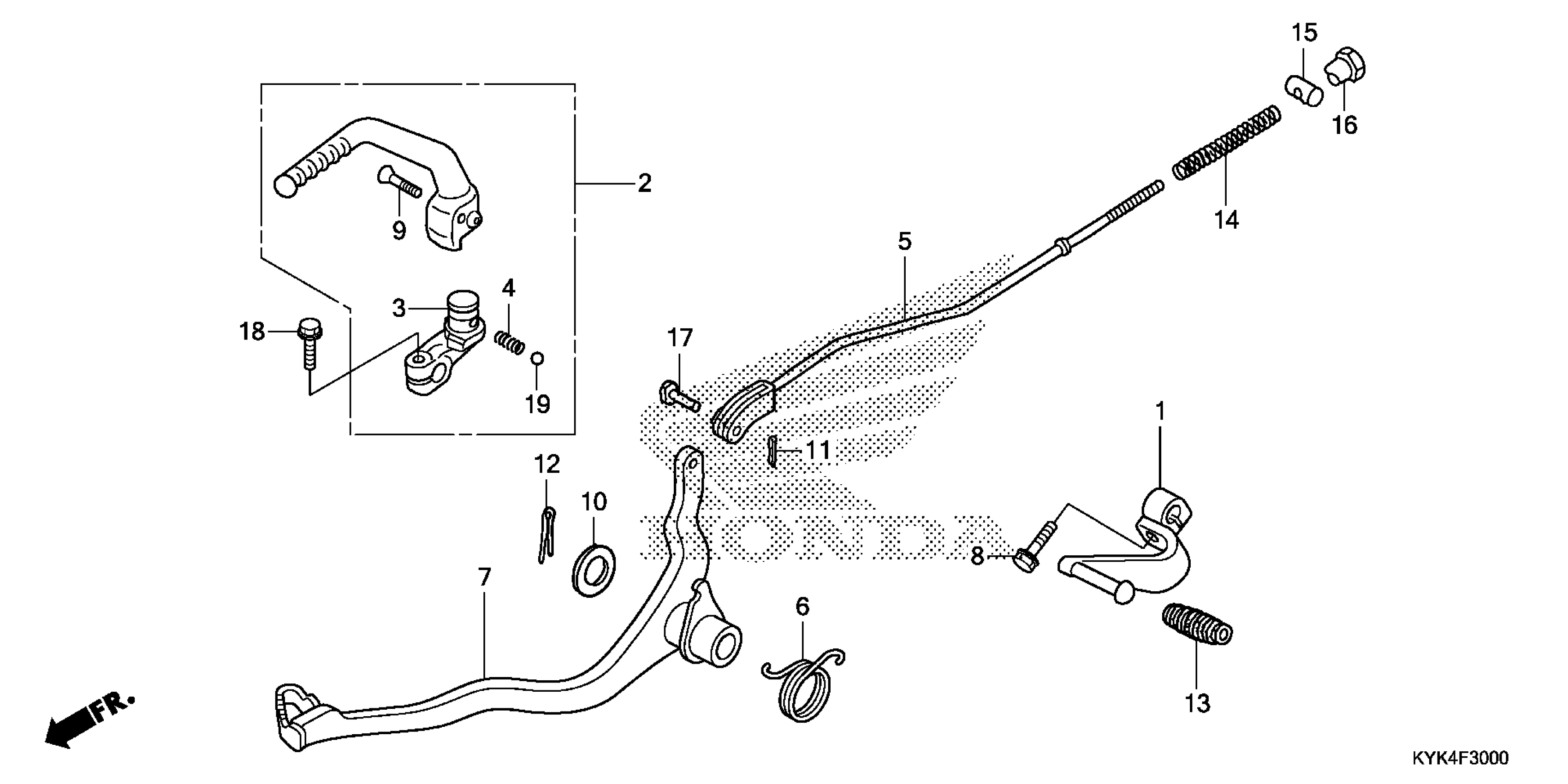

Honda CRF110FA (20) MOTORCYCLE, CHN, VIN# LALJE024-L3200001 PEDAL@KICK STARTER ARM Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (COO)

24701-KYK-305

$32.99

1

PEDAL, GEARSHIFT (COO) This part replaces 24701-KYK-910.

24701-KYK-305

$32.99

2

ARM ASSY., KICK STARTER (COO)

28300-KYK-305

$116.94

2

ARM ASSY., KICK STARTER (COO) This part replaces 28300-KYK-910.

28300-KYK-305

$116.94

3

JOINT, KICK ARM

28302-KYK-910

$62.93

4

SPRING, KICK STARTER ARM SETTING

28333-KYK-910

$2.58

5

ROD, RR. BRAKE

43451-KYK-910

$14.23

6

SPRING, BRAKE ARM RETURN

45435-KYK-910

$8.75

7

PEDAL, BRAKE (COO)

46500-KYK-305

$81.81

7

PEDAL, BRAKE (COO) This part replaces 46500-KYK-910.

46500-KYK-305

$81.81

8

BOLT, FLANGE (6X25)

90131-124-000

$0.68

9

SCREW, FLAT (6X22) (NOT AVAILABLE)

93600-06022-0H

$3.59

10

WASHER, PLAIN (16MM)

94102-16000

Unavailable

11

PIN, COTTER (2.0X12)

94201-20120

$0.94

11

PIN, SPLIT (2.0X12) This part replaces 94201-20121.

94201-20120

$0.94

12

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.94

12

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

12

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

12

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$0.94

13

RUBBER, CHANGE PEDAL

95011-40000

$1.14

14

SPRING A, BRAKE ROD

95014-73100

$1.17

15

JOINT B, BRAKE ARM

95015-32001

$0.86

16

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.75

17

PIN, JOINT (C)

95015-53000

$2.85

18

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

19

BALL, STEEL (#8) (1/4)

96211-08000

$1.13
