Description

Price

1

COVER, OIL FILTER

15431-KVR-C00

$15.84

2

GASKET, OIL FILTER This part replaces 15439-KPH-901.

15439-KYK-D10

$2.34

2

GASKET, OIL FILTER

15439-KYK-D10

$2.34

3

WEIGHT SET, PRIMARY CLUTCH (F.C.C.)

22535-KWW-P00

$73.18

4

SPRING, ONE-WAY RETAINER

22606-KVR-C00

$2.66

5

PLATE, PRIMARY DRIVE (F.C.C.)

22610-KWW-741

$13.77

6

INNER, ONE-WAY CLUTCH

22630-KWW-C00

$36.31

7

SPRING, PRIMARY CLUTCH

22641-KPH-900

$1.49

8

WASHER, CLUTCH SIDE (F.C.C.)

22642-KWW-741

$1.75

9

SPRING, SIDE FRICTION (F.C.C.)

22643-KWW-741

$2.59

10

PLATE, CLUTCH SIDE (F.C.C.)

22644-KWW-741

$2.52

11

CLUTCH OUTER ASSY., PRIMARY

22660-KWW-C00

$194.44

12

RUBBER, CLUTCH DAMPER

22804-GB2-000

$3.88

13

GEAR, PRIMARY CLUTCH

23120-KWW-C00

$113.13

14

SUB-GEAR (17T)

23122-KWW-C00

$20.30

15

RETAINER, SPRING

23123-KWW-C00

$15.11

16

SPRING, SUB-GEAR

23124-KWW-C00

$3.84

17

PIN, STOPPER

23125-KVR-C00

$2.93

18

COLLAR (19.1X30X4)

23126-KWW-740

$3.74

19

BOLT, SPECIAL FLANGE (5X8)

90083-KFL-850

$1.49

20

NUT, LOCK (14MM)

90231-KVR-C00

$2.92

21

WASHER (30X45X0.8)

90401-KVR-C00

$3.69

22

WASHER, LOCK

90431-KVR-C00

$2.90

23

WASHER B, LOCK

90432-KVR-C00

$5.43

24

WASHER (17X23X1.5)

90433-KWW-C00

$2.98

25

CIRCLIP (INNER) (45MM)

90455-KVR-C00

$4.80

26

SET-RING (23MM)

90603-KWW-C00

$1.82

27

CIRCLIP (7MM)

90605-166-720

$1.80

28

ROLLER (5X8)

91106-KVR-C00

$8.59

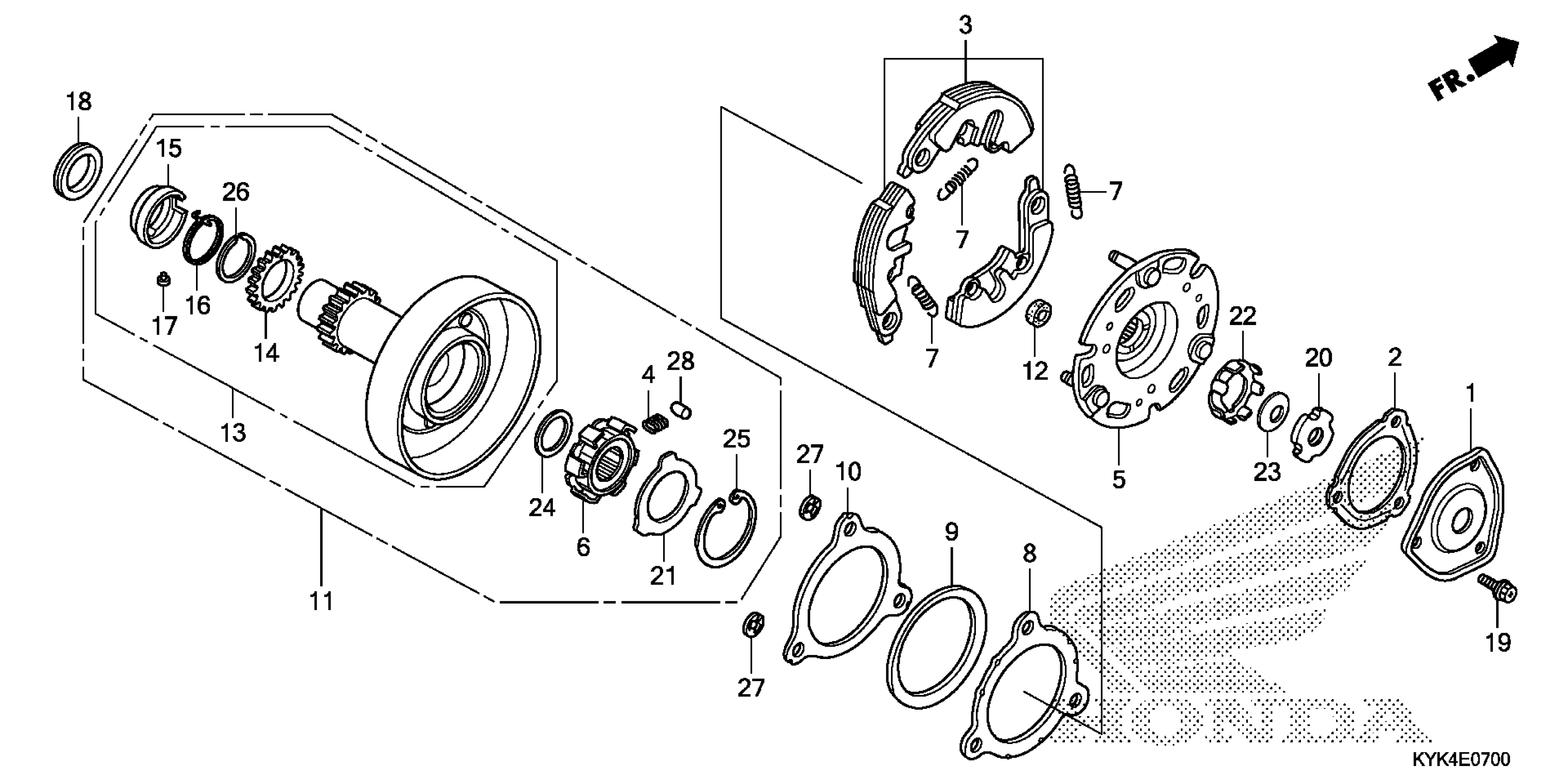

Honda CRF110FA (20) MOTORCYCLE, CHN, VIN# LALJE024-L3200001 ONE-WAY CLUTCH Diagram
