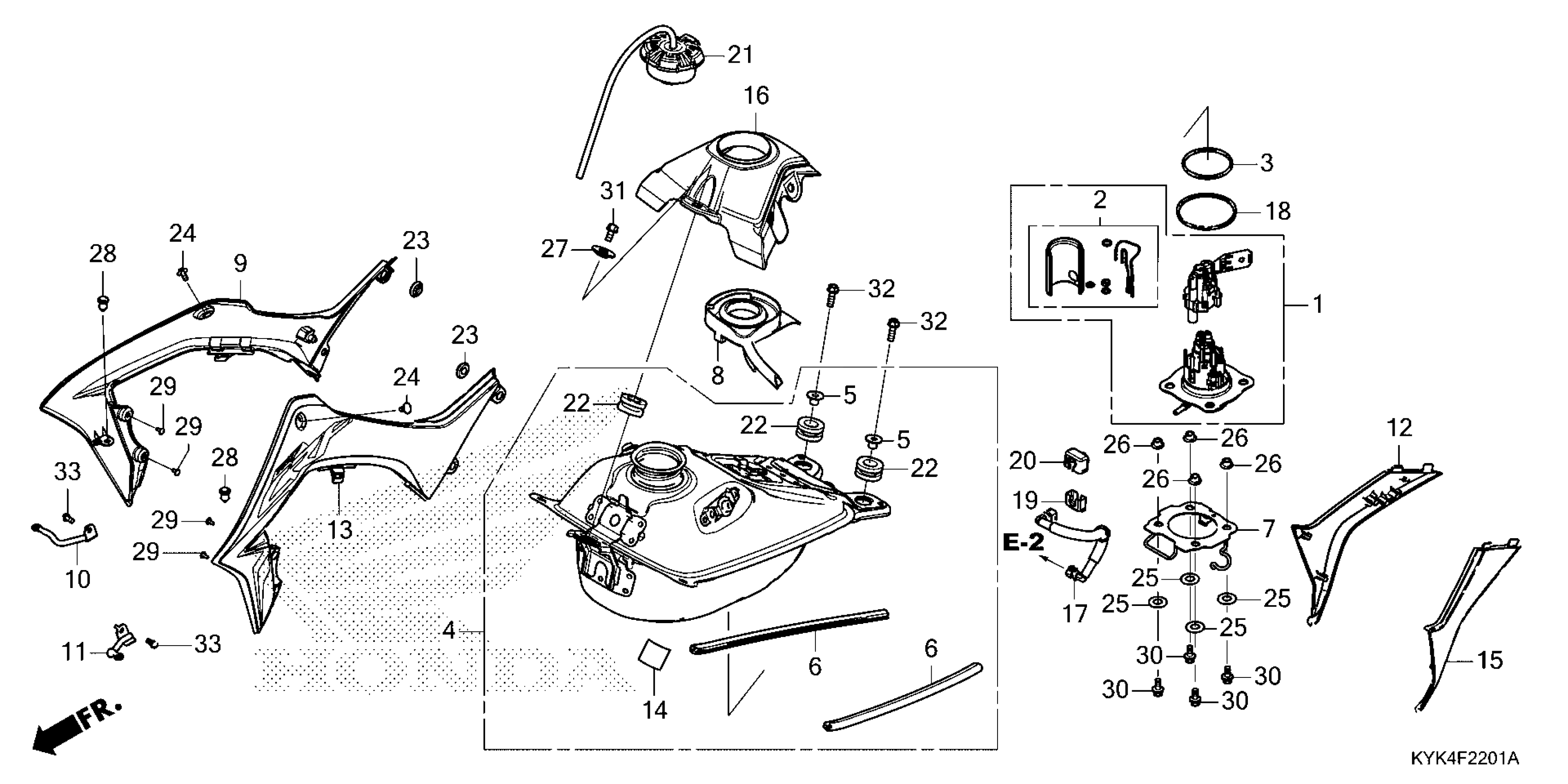

Description

Price

1

PUMP UNIT ASSY., FUEL (MSDS)

16700-K28-A61

$512.97

2

FILTER SET

16707-K45-N01

$24.22

3

O-RING (3.7X62.9)

16711-K99-A01

$35.06

4

TANK ASSY., FUEL

17500-K28-A60

$693.43

5

COLLAR, TANK MOUNT

17509-KYK-910

$5.58

6

TRIM, FUEL TANK

17515-MJE-D00

$14.38

7

PLATE, SETTING

17527-KYK-D10

$17.77

8

TRAY, FUEL

17530-K28-A60

$19.66

9

SHROUD SET A, R. TANK (TYPE1) (WL)

17540-KYK-D10ZA

$125.51

10

STAY, R. SHROUD

17541-KYK-D10

$12.46

11

STAY, L. SHROUD

17542-KYK-D10

$12.48

12

SHROUD B, R.

17546-K28-A60

$13.44

13

SHROUD SET A, L. TANK (TYPE1) (WL)

17550-KYK-D10ZA

$125.52

14

FILM, PROTECTOR

17556-K28-910

$4.66

15

SHROUD B, L.

17556-K28-A60

$13.44

16

COVER, CENTER TANK

17560-K28-A60

$26.90

17

HOSE, FUEL FEED

17571-KYK-D11

$49.20

18

DUST SEAL

17574-K99-A01

$5.44

19

COVER, FUEL CONNECTOR

17575-K99-A00

$2.51

20

RUBBER, FUEL CONNECTOR

17576-KRN-A90

$5.89

21

CAP COMP This part replaces 17620-K28-M21.

17620-K28-M22

$91.13

21

CAP COMP

17620-K28-M22

$91.13

22

RUBBER, RR. CARRIER MOUNTING

50329-KYA-B00

$3.24

23

GROMMET, SIDE COVER

83551-376-000

$2.97

24

BOLT, SPECIAL (6MM)

90126-K99-A00

$1.74

25

WASHER, CONICAL SPRING FUEL PUMP

90502-MEN-A30

$2.66

26

COLLAR, FUEL PUMP

90503-K99-A00

$3.49

27

COLLAR, FR. TANK

90504-K28-A60

$3.38

28

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

29

SCREW, TAPPING (4X10)

93913-24120
