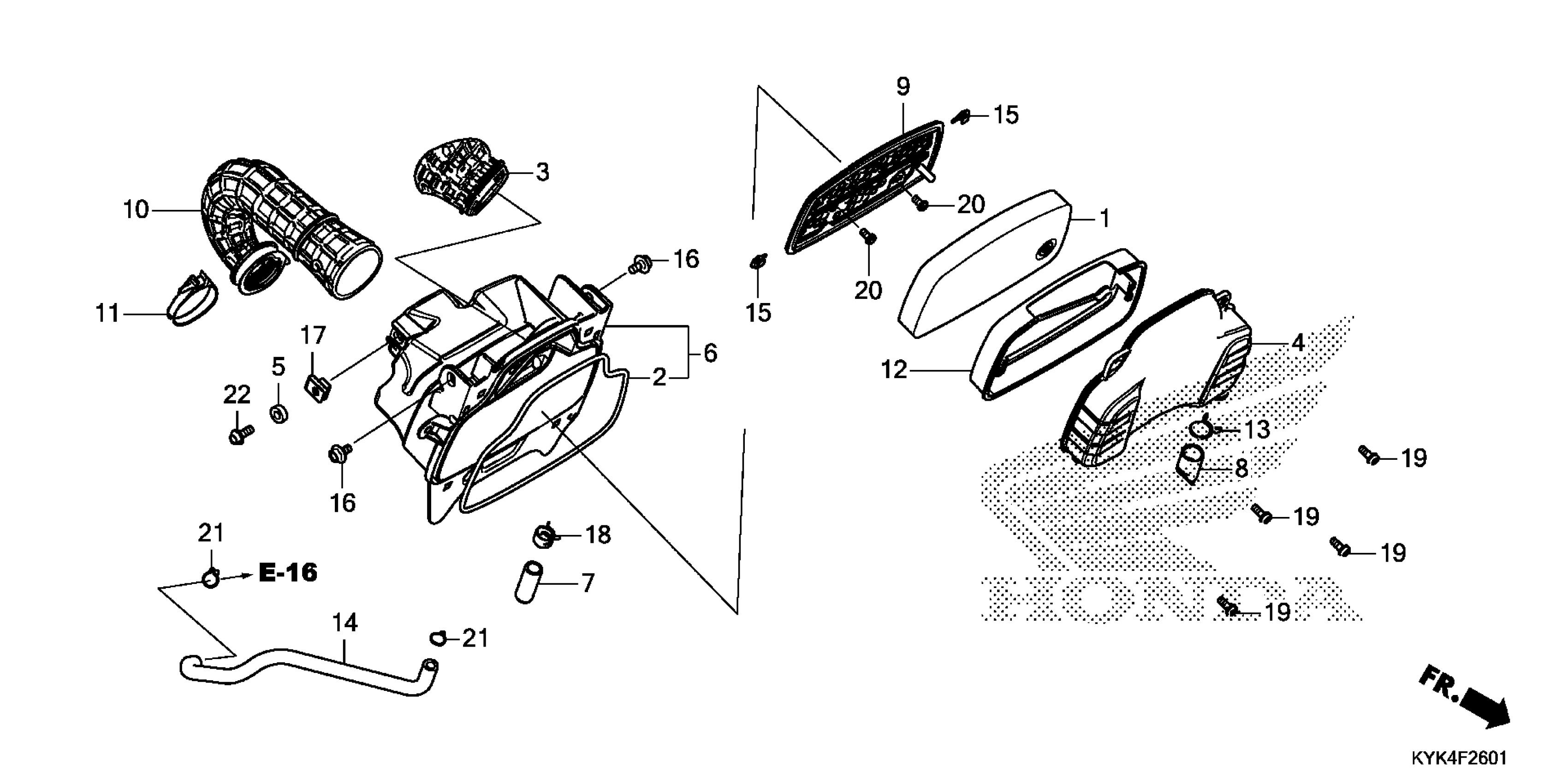

Honda CRF110FA (20) MOTORCYCLE, CHN, VIN# LALJE024-L3200001 AIR CLEANER (2) Diagram

ELEMENT, AIR CLEANER

17211-KYK-D10

$11.07

SEAL, AIR CLEANER COVER

17213-KYK-D10

$6.41

DUCT, AIR CLEANER

17215-KYK-D10

$12.59

COVER, AIR CLEANER

17220-KYK-D10

$28.21

COLLAR, AIR CLEANER

17223-KVX-600

$2.61

CASE SUB-ASSY., AIR CLEANER

17225-KYK-D10

$64.46

TUBE, VINYL (11X15X40)

17227-KYY-900

$4.49

PLUG, AIR CLEANER DRAIN

17236-K99-A00

$5.94

HOLDER, ELEMENT

17250-KYK-D10

$32.98

TUBE, AIR CLEANER CONNECTING

17253-KYK-D10

$44.46

BAND, AIR CLEANER CONNECTING TUBE (44)

17256-K94-T00

$7.18

PLATE, ELEMENT SETTING

17261-KYK-D10

$9.69

CLIP, BREATHER TUBE

17316-KRH-900

$2.64

TUBE, BREATHER

17371-KYK-D10

$10.82

WASHER, TONGUED

17390-KYK-D10

$2.90

BOLT, FLANGE (6MM)

90116-KVB-900

$1.49

NUT, CLIP (6MM)

90311-KSH-900

$3.05

CLAMP, TUBE (D14.5)

91406-KVX-600

$3.21

BOLT-WASHER (5X14)

93401-05014-07

$1.49

SCREW-WASHER (5X10)

93892-05010-08

$1.49

CLIP, TUBE (C12)

95002-80000

$1.49

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55
