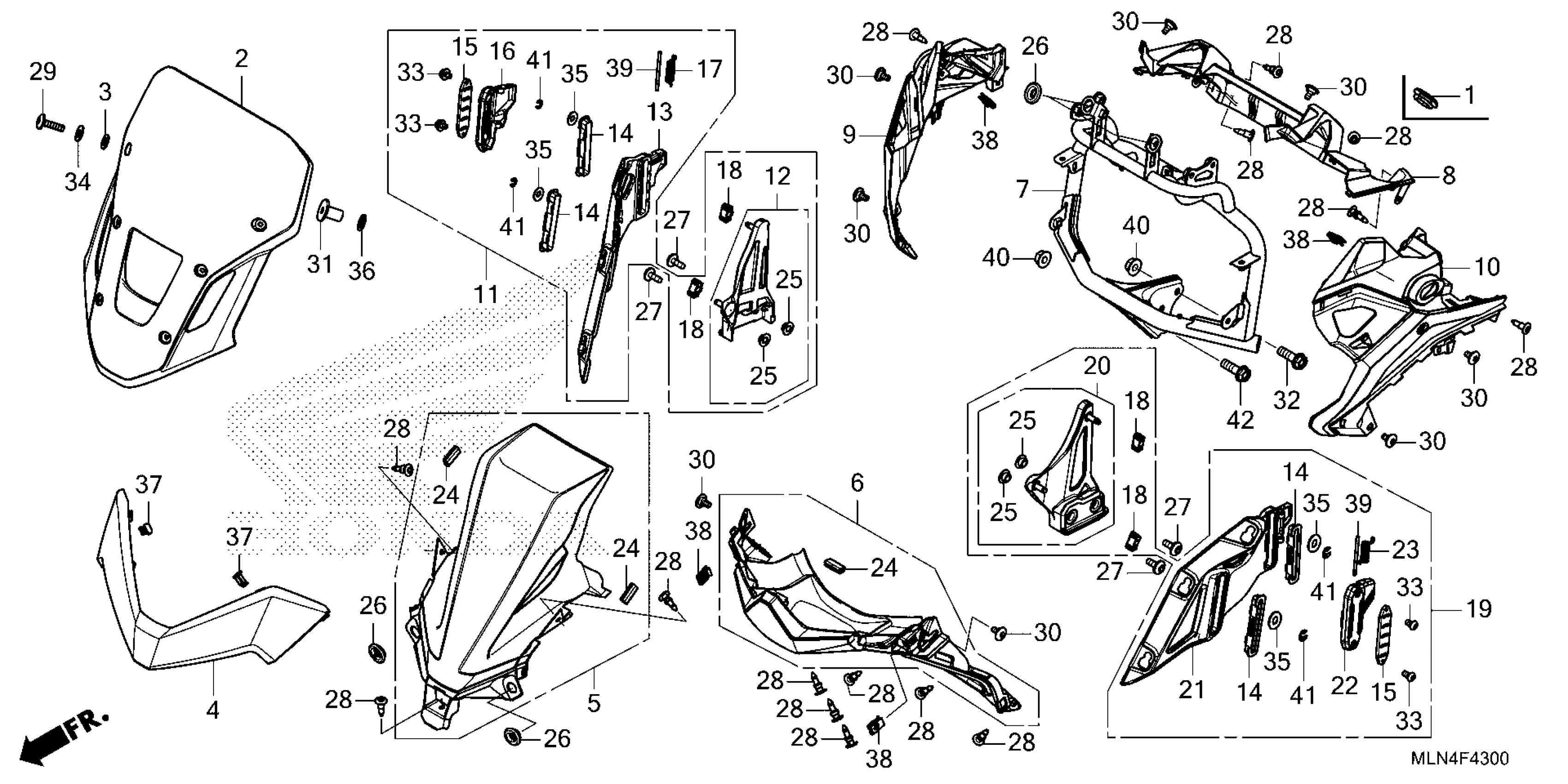

Honda CRF1100DAC (25) MOTORCYCLE, JPN, VIN# JH2SD155-SK100001 TO JH2SD155-SK199999 FRONT COVER (CRF1100A/D) Diagram

GROMMET, AUDIO BOX

39119-MJG-640

$6.44

WINDSCREEN

64200-MLN-E00

$259.48

WASHER, SCREEN SETTING

64205-166-610

$2.21

COWL, FR. *NHA86M*

64210-MLN-E00ZC

$65.54

COVER, FR. (UPPER)

64211-MLN-E00

$81.38

COVER, FR. (LOWER)

64212-MLN-E00

$59.30

STAY, FR. COWL

64501-MLN-E00

$318.72

COVER, PANEL (INNER)

64531-MLN-E00

$14.59

COVER, R. FR.

64541-MLN-E00

$15.69

COVER, L. FR.

64591-MLN-E00

$15.69

RAIL ASSY., R. SCREEN ADJUST

64700-MKS-E20

$185.28

BRACKET, R. SCREEN ADJUST

64705-MKS-E20

$50.41

RAIL, R. SCREEN ADJUST

64710-MKS-E20

$35.75

GUIDE, RAIL

64715-MJM-D40

$5.62

PLATE, LOCK

64725-MJM-D40

$7.43

LEVER, R. LOCK

64750-MJM-D40

$15.34

SPRING, R. LEVER

64755-MJM-D40

$5.90

SLIDER, GUIDE

64780-MJM-D40

$4.20

RAIL ASSY., L. SCREEN ADJUST

64800-MKS-E20

$185.28

BRACKET, L. SCREEN ADJUST

64805-MKS-E20

$48.23

RAIL, L. SCREEN ADJUST

64810-MKS-E20

$35.75

LEVER, L. LOCK

64850-MJM-D40

$15.34

SPRING, L. LEVER

64855-MJM-D40

$5.64

PROTECTOR, RUBBER

77212-MFJ-D00

$1.74

COLLAR, FENDER

80118-MFJ-D00

$4.15

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

BOLT, SPECIAL (6X16)

90116-MJM-D40

$2.25

CLIP, BUMPER SEAL

90116-K2P-V61

$1.49

SCREW, PAN (5X20) (SUS)

90118-MJP-G50

$2.33

SCREW, SPECIAL (5X11)

90122-MJK-N20

$2.48

NUT, WELL (5MM)

90156-GZ4-670

$4.87

BOLT, FLANGE (8X25)

90164-GHB-670

$2.38

BOLT, SOCKET (4X8)

90164-MJT-E00

$19.85

WASHER, THRUST (5MM)

90504-964-000

$1.90

WASHER (6MM)

90504-MGH-H20

$2.33

WASHER, NYLON (9MM)

90507-ZV1-000

$2.00

CLIP, SLIDE

90651-K14-A31

$1.49

NUT, CLIP (5MM)

90677-KAN-961

$4.07

PIN, SPRING (3X52)

90753-MJM-D40

$4.56

NUT, FLANGE (8MM)

94050-08070

$1.49

E-RING (4MM) (Honda Code 3303054)

94540-04029

$4.39

BOLT, FLANGE (8X25)

90164-GHB-670

$2.38
