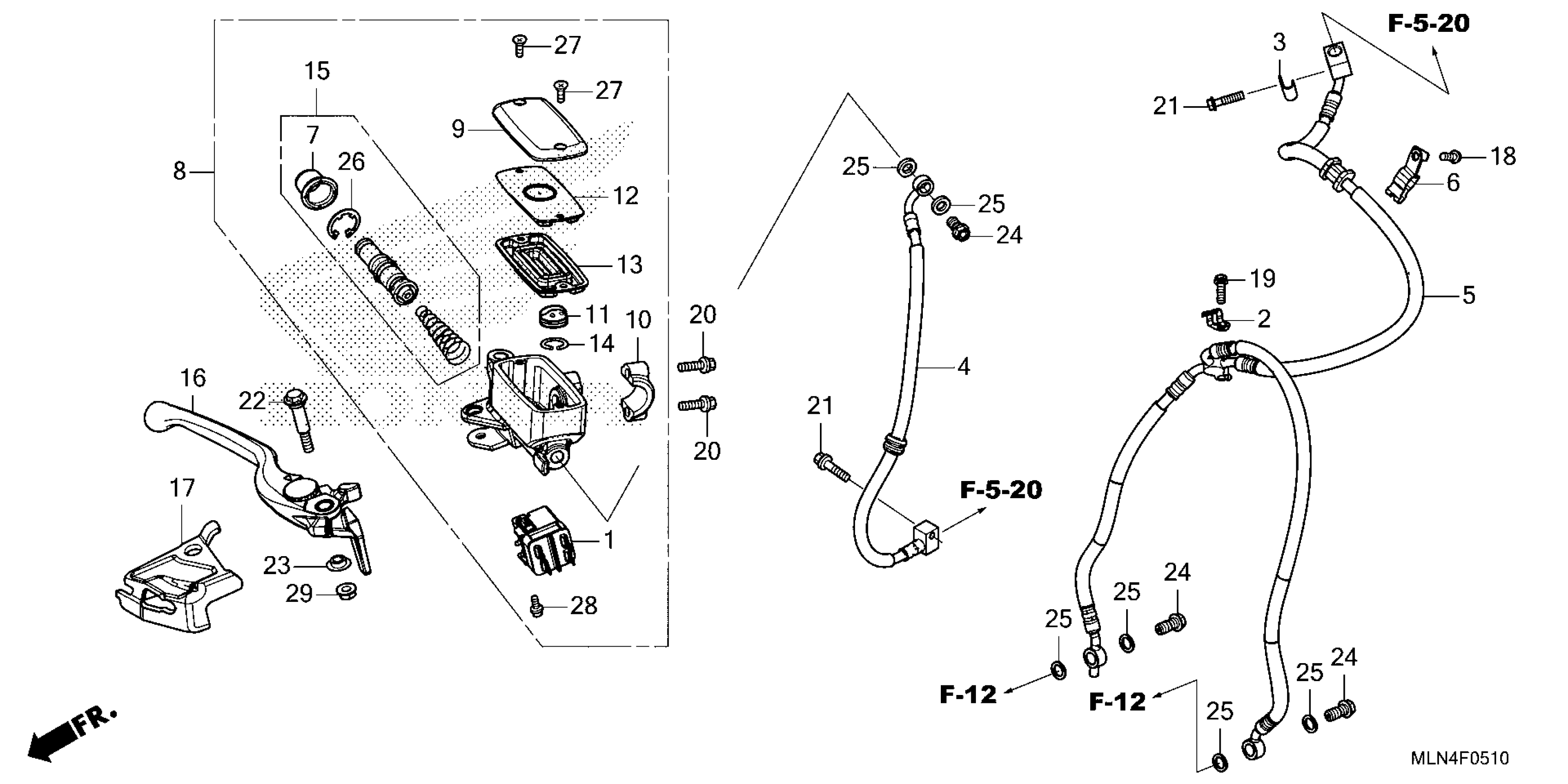

Honda CRF1100DAC (25) MOTORCYCLE, JPN, VIN# JH2SD155-SK100001 TO JH2SD155-SK199999 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP & CRUISE

35340-MKS-E01

$53.75

2

CLAMP, SENSOR WIRE

38514-MKK-D00

$3.56

3

CLAMP, SENSOR WIRE

38515-K94-T10

$1.10

4

HOSE A, FR. BRAKE

45125-MKK-D21

$50.93

5

HOSE D, FR. BRAKE

45128-MKS-E01

$115.06

6

CLAMP, FR. BRAKE HOSE

45156-MKS-E00

$3.71

7

BOOT

45504-410-003

$11.17

8

MASTER CYLINDER SUB-ASSY., FR.

45510-MKS-E01

$279.78

9

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.57

10

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

11

SEPARATOR

45518-MEN-J01

$6.63

12

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$9.79

13

DIAPHRAGM (NISSIN)

45520-MM5-006

$13.87

14

RING

45523-KA3-731

$2.71

15

PISTON SET, FR. MASTER CYLINDER

45530-MCA-006

$16.65

16

LEVER ASSY., R. HANDLE

53170-MKS-E01

$47.22

17

HOLDER, R. KNUCKLE

53191-MKS-E00

$8.64

18

BOLT, FLANGE (6X14)

90021-GHB-630

$2.06

19

BOLT, FLANGE (6X18)

90021-GHB-650

$2.09

20

BOLT, FLANGE (6X22)

90021-GHB-670

$2.01

21

BOLT, FLANGE (6X25)

90021-GHB-680

$2.09

22

BOLT, HANDLE LEVER

90114-MGH-641

$6.38

23

COLLAR (6X4)

90127-KF0-770

$3.26

24

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

25

WASHER, OIL BOLT

90545-300-000

$5.79

26

CIRCLIP

90651-MA5-671

$2.38

27

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

27

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

28

SCREW-WASHER (4X12)

93893-04012-07

$1.32

28

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

29

NUT, FLANGE (6MM)

94050-06000

$0.60
