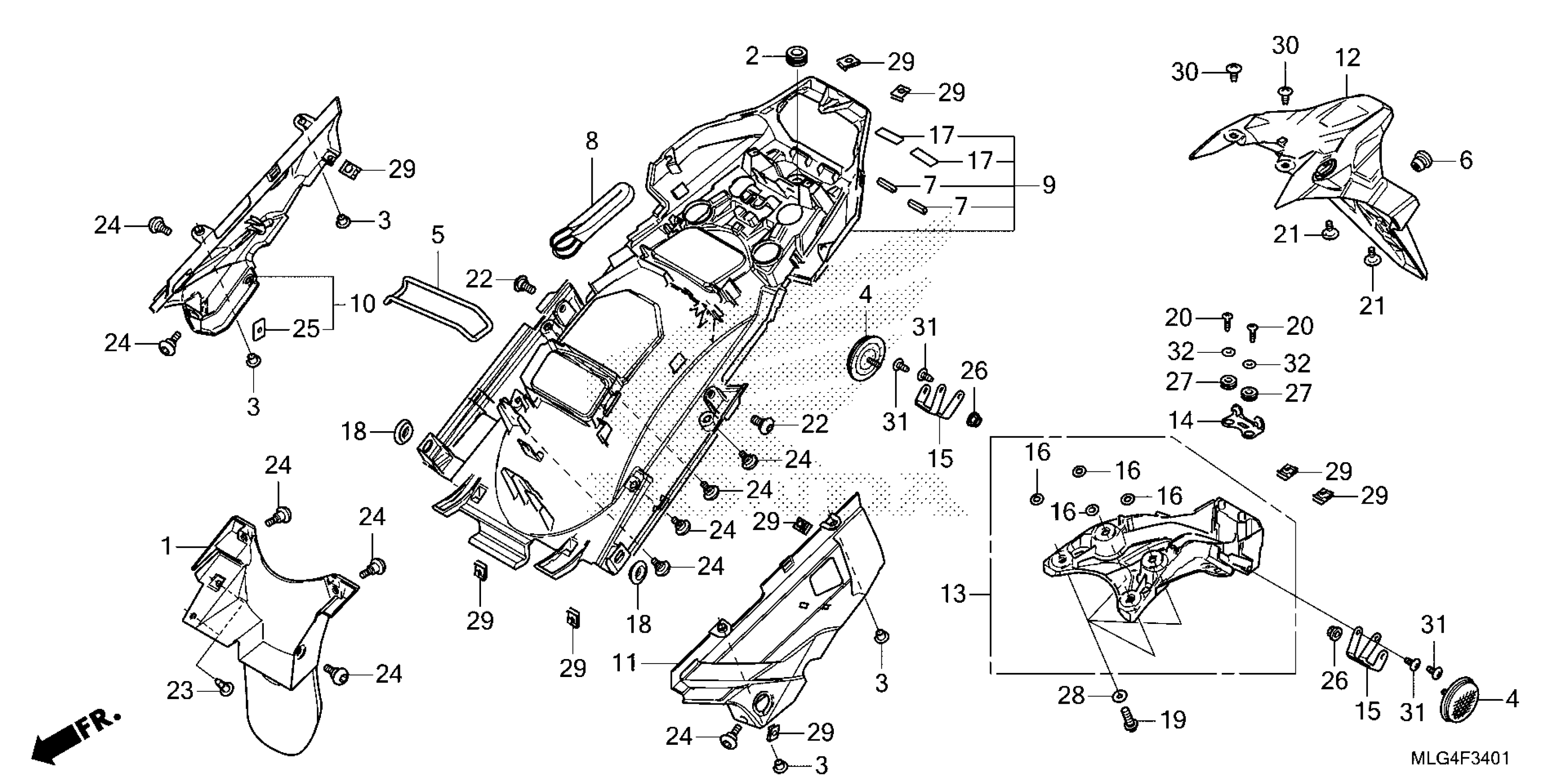

Honda CRF1100D4AC (23) MOTORCYCLE, JPN, VIN# JH2SD104-PK300001 REAR FENDER (2) Diagram

#

Description
Price

1

SPLASH GUARD

17218-MKS-E00

$51.88

2

RUBBER, MOUNTING

19639-GBC-000

$1.28

3

COLLAR, TAILLIGHT

33712-GC6-000

$2.80

4

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$11.90

5

BAND, U-LOCK

50290-MBL-610

$4.45

6

PLUG, HANDLE COVER (LOWER)

53125-174-670

$1.77

7

PROTECTOR, RUBBER

77212-MFJ-D00

$1.58

8

WIRE, HELMET SET

77236-KAZ-780

$7.89

9

FENDER B, RR.

80105-MKS-E20

$98.46

10

COVER, R. FENDER B

80106-MKS-E20

$22.33

11

COVER, L. FENDER B

80107-MKS-E20

$22.01

12

FENDER A, RR.

80110-MKS-C00

$63.72

13

STAY, FENDER A

80115-MKS-E00

$85.23

14

BRACKET, LICENSE LIGHT

80116-MKS-E00

$6.59

15

STAY, RR. REFLECTOR

80117-MKS-A00

$11.19

16

COLLAR, FENDER

80118-MFJ-D00

$3.86

17

RUBBER, RR. FRAME

80129-MEG-000

$1.30

18

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

19

BOLT, FLANGE (6X20)

90020-GHB-660

$2.12

20

SCREW, TAPPING (4X16)

90112-MKA-D80

$2.12

21

SCREW, SPECIAL (5X14)

90113-MGP-D00

$1.86

22

SCREW, SPECIAL (6X14)

90115-MGZ-J00

Unavailable

23

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

24

SCREW, SPECIAL (5X11)

90122-MJK-N20

$2.26

25

NUT, SPECIAL (6X7)

90303-HA0-680

$3.57

26

NUT U, FLANGE (6MM)

90305-MKC-A01

$2.41

27

GROMMET A, AIR CLEANER HOUSING

90505-MC4-000

$2.85

28

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.67

29

NUT, CLIP (5MM)

90677-KAN-961

$3.79

30

SCREW, TAPPING (5X12)

93903-25280

$1.23

31

SCREW, TAPPING (5X12)

93903-35280

$0.75

32

WASHER, PLAIN (4MM)

94103-04700

$0.86
