Description

Price

1

CRANKCASE SET

11000-MKS-E50

$2,853.07

2

COLLAR, ENGINE HANGER

11104-MJP-G50

$11.26

3

JET, OIL

11140-MKS-E00

$24.51

4

ORIFICE

11206-MJP-G50

$6.48

5

ORIFICE (1.2MM)

11207-MKS-E00

$3.52

7

ORIFICE (0.8MM)

15516-MGS-D30

$6.08

10

SWITCH ASSY., NEUTRAL

35600-MK4-860

$18.89

12

SENSOR, OIL PRESSURE

37260-MGE-641

$171.18

13

SENSOR ASSY., SPEED (TDK-EPC)

37700-MJE-D01

$26.44

14

SENSOR ASSY., SPEED

37710-MJP-G81

$131.38

15

SENSOR ASSY., THERMOSTAT OIL (Honda Code 8192445)

37750-KPH-701

$51.87

16

SENSOR ASSY., ANGLE (350DEGREE)

38800-MJP-G81

$187.49

17

COVER, ANGLE SENSOR

38805-MJP-G80

$9.26

19

BOLT, SOCKET (10MM)

90005-MJP-G80

$3.70

20

BOLT, KNOCK (6MM)

90011-MGE-D00

$2.89

21

BOLT, FLANGE (10X110)

90015-MJP-G50

$8.02

22

BOLT, FLANGE (10X130)

90015-MKS-E00

$5.87

23

BOLT, FLANGE (10X145)

90016-MJP-G50

$10.11

25

BOLT, FLANGE (6X14)

90030-GHB-630

$2.23

27

BOLT, FLANGE (6X35)

90030-GHB-720

$2.28

28

BOLT, FLANGE (6X60)

90030-GHB-780

$2.59

29

BOLT, FLANGE (6X16)

90031-GHB-640

$2.26

30

BOLT, FLANGE (8X40)

90035-GHB-740

$2.52

31

BOLT, FLANGE (8X55)

90035-GHB-770

$2.92

32

BOLT, FLANGE (8X95)

90035-GHB-850

$4.07

33

BOLT, FLANGE (10X75)

90040-GHB-810

$5.10

34

BOLT, SEALING (18MM)

90046-MKK-D00

$7.88

35

BOLT, SEALING (22MM)

90047-MJP-G80

$5.80

37

BOLT, SEALING (8MM)

90119-SD9-000

$5.57

38

WASHER, SEALING (8MM)

90442-028-000

$1.77

39

WASHER, SEALING (10.2MM)

90443-MB0-000

$2.92

40

WASHER, NEUTRAL

90443-MJ6-000

$1.92

41

WASHER, SEALING (6MM)

90488-425-000

$2.28

42

PIN, DOWEL (10X16) (Honda Code 3906971)

90701-MV9-670

$4.30

43

BEARING, NEEDLE (12X16X10)

91021-MKS-E01

$9.70

44

BEARING, SEAL NEEDLE (12X18X14)

91022-MKS-E01

$10.66

45

O-RING (13X1.5)

91301-MEH-003

$1.62

46

O-RING (18.1X3.6)

91302-MAL-601

$3.53

47

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

48

O-RING (3.2X1.1)

91305-MCJ-751

$2.16

49

O-RING (16.5X2.5)

91310-MGE-D01

$4.80

50

NUT, FLANGE (4MM)

94050-04000

$1.49

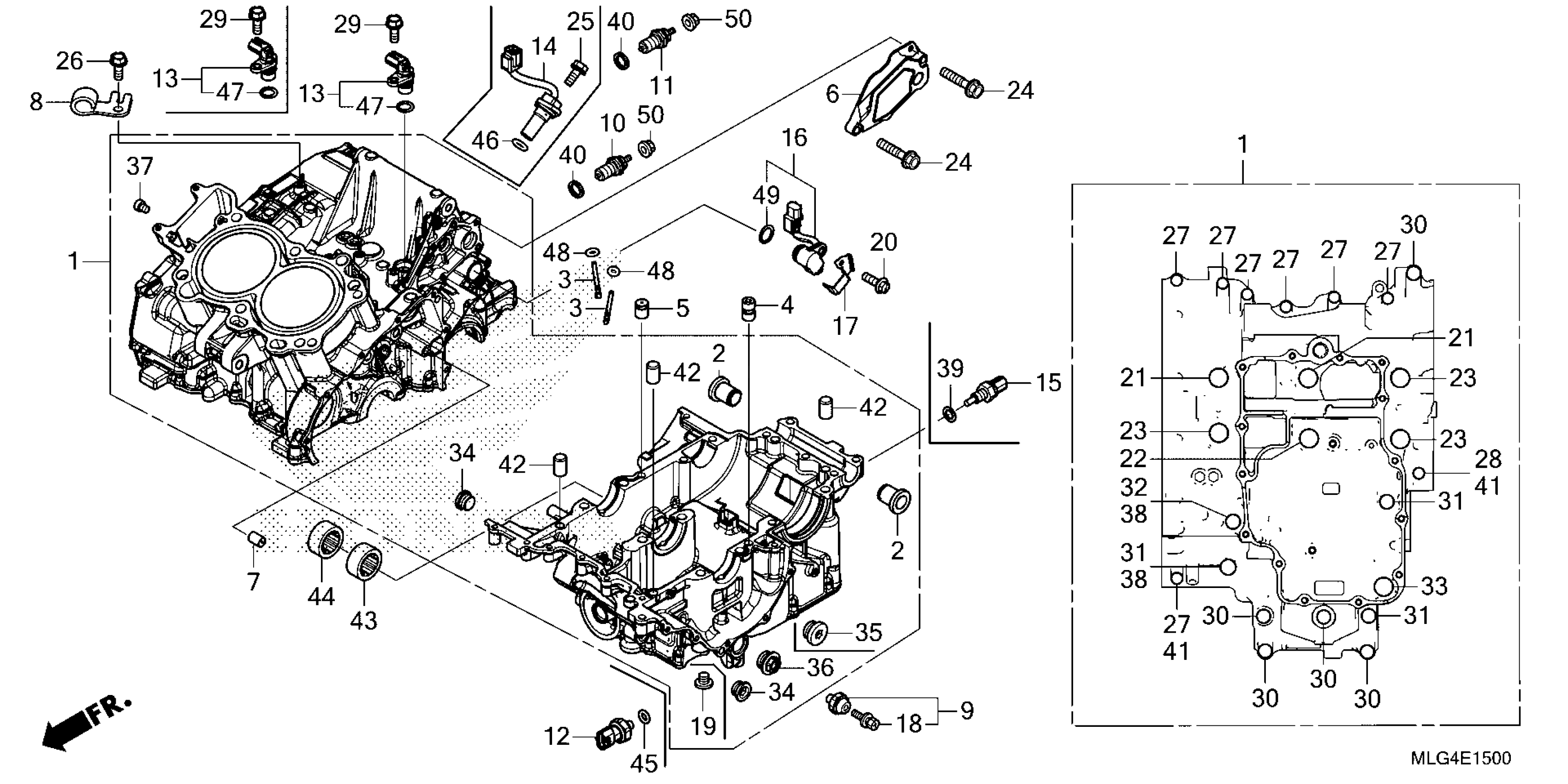

Honda CRF1100D4AC (22) MOTORCYCLE, JPN, VIN# JH2SD104-NK200001 TO JH2SD104-NK299999 CRANKCASE Diagram
