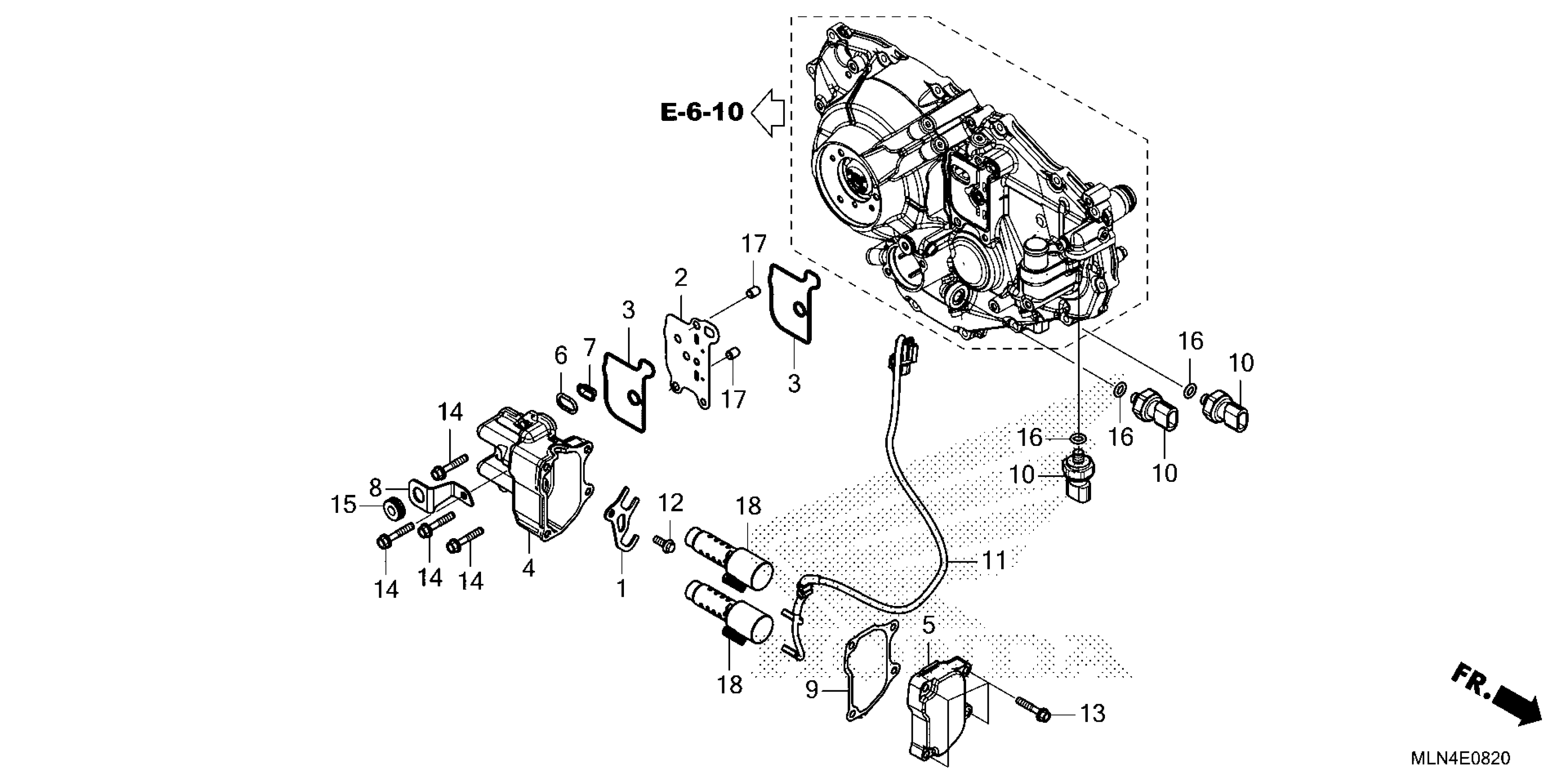

Honda CRF1100D43AC (25) MOTORCYCLE, JPN, VIN# JH2SD15E-SK100001 TO JH2SD15E-SK199999 LINEAR SOLENOID Diagram

#

Description
Price

1

PLATE, SOLENOID STOPPER

11338-MJP-G80

$11.74

2

PLATE, SEPARATOR

11362-MJP-G80

$6.75

3

GASKET, SOLENOID BODY

11364-MJP-G80

$3.92

4

BODY

11365-MLN-E60

$132.66

5

COVER, LINEAR SOLENOID

11366-MKS-E50

$57.10

6

GASKET, BASE

11371-MGS-D20

$4.15

7

FILTER, SPOOL VALVE

11372-MGS-D20

$15.84

8

STAY, OIL PRESSURE SENSOR COVER

11373-MKS-E50

$5.52

9

GASKET, SOLENOID COVER

11398-MKS-E51

$4.48

10

SENSOR (2MPA)

37270-MLN-E61

$56.52

11

HARNESS

38611-MLN-E60

$43.64

12

BOLT, FLANGE (6X16)

90025-GHB-640

$2.33

13

BOLT, FLANGE (6X28)

90026-GHB-690

$2.18

14

BOLT, FLANGE (6X30)

90026-GHB-700

$2.18

15

GROMMET A, AIR CLEANER HOUSING

90505-MC4-000

$3.06

16

O-RING (13X1.5)

91301-MEH-003

$1.62

17

PIN A, DOWEL (8X10)

94301-08100

$2.25

18

VALVE

38610-MLN-E61

$91.26
