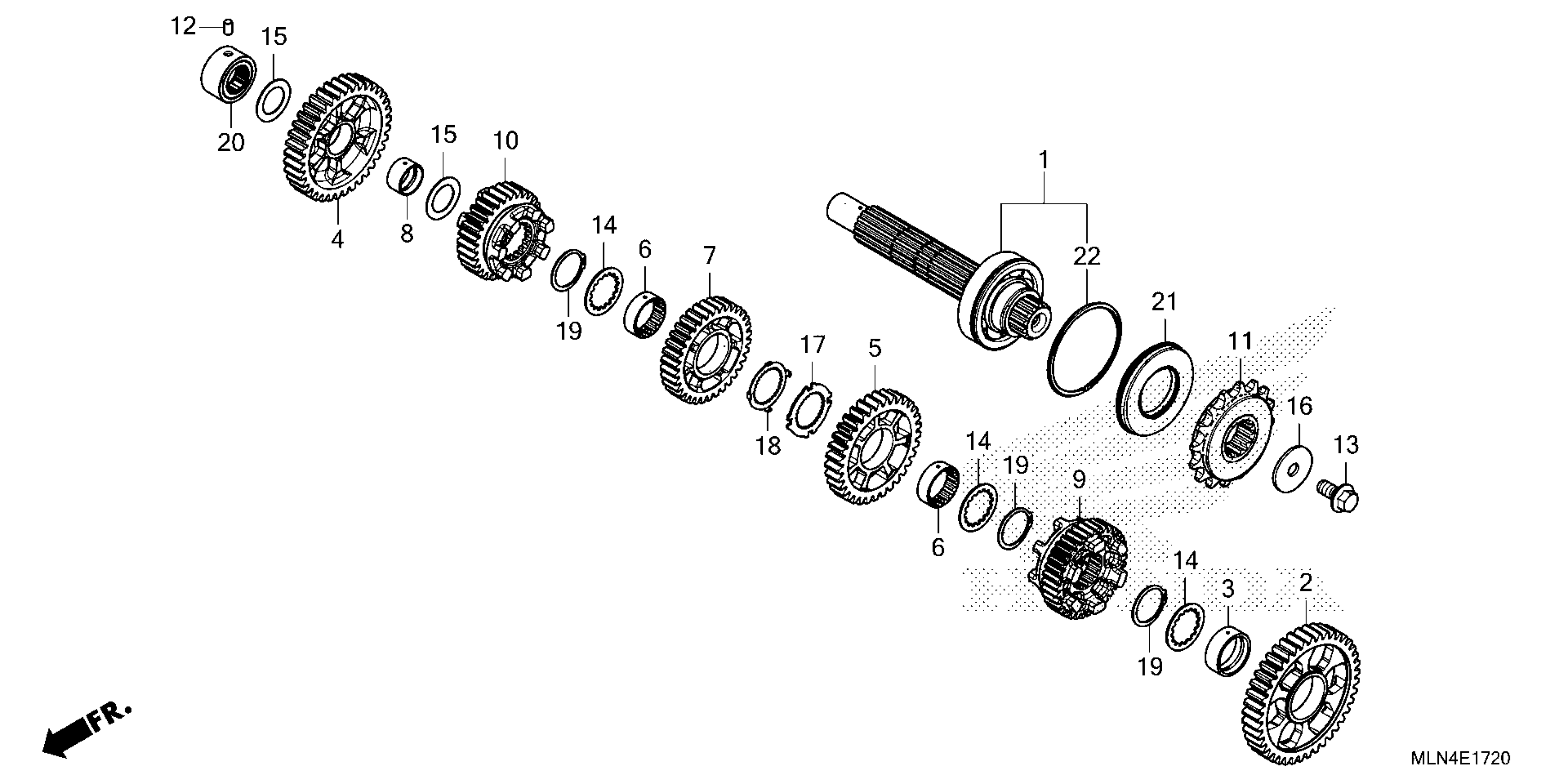

Honda CRF1100D43AC (24) MOTORCYCLE, JPN, VIN# JH2SD15E-RK000001 TO JH2SD15E-RK099999 TRANSMISSION (COUNTERSHAFT) (CRF1100D/D4) Diagram

COUNTERSHAFT

23220-MLN-E60

$133.22

GEAR, COUNTERSHAFT FIRST (41T)

23421-MKS-E50

$115.68

COLLAR (30X35X13)

23422-HL4-000

$16.38

GEAR, COUNTERSHAFT SECOND (37T)

23441-MKS-E50

$110.63

GEAR, COUNTERSHAFT THIRD (33T)

23461-MKS-E50

$106.47

COLLAR, SPLINE (30X11)

23462-MAT-000

$21.25

GEAR, COUNTERSHAFT FOURTH (34T)

23481-MKS-E50

$106.47

COLLAR (22X13)

23495-KY1-000

$19.31

GEAR, COUNTERSHAFT FIFTH (36T)

23501-MKS-E50

$123.07

GEAR, COUNTERSHAFT SIXTH (30T)

23521-MKS-E50

$118.93

SPROCKET, DRIVE (16T)

23801-MEE-D00

$53.01

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.02

BOLT, SPECIAL (10MM)

90037-422-003

$6.99

WASHER, SPLINE (30X38X1.5)

90452-HL4-000

$2.81

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.65

WASHER (10.2MM)

90459-438-000

$5.57

WASHER, SPLINE (30MM)

90463-MAT-000

$4.22

WASHER, LOCK (30MM)

90464-MAT-000

$6.21

CIRCLIP (30MM)

90604-MM5-000

$4.28

BEARING (22MM)

91023-MLN-E01

$18.81

OIL SEAL (39X72X8)

91207-MBB-013

$11.76

RING, SNAP (72MM)

94560-72200

$3.99
