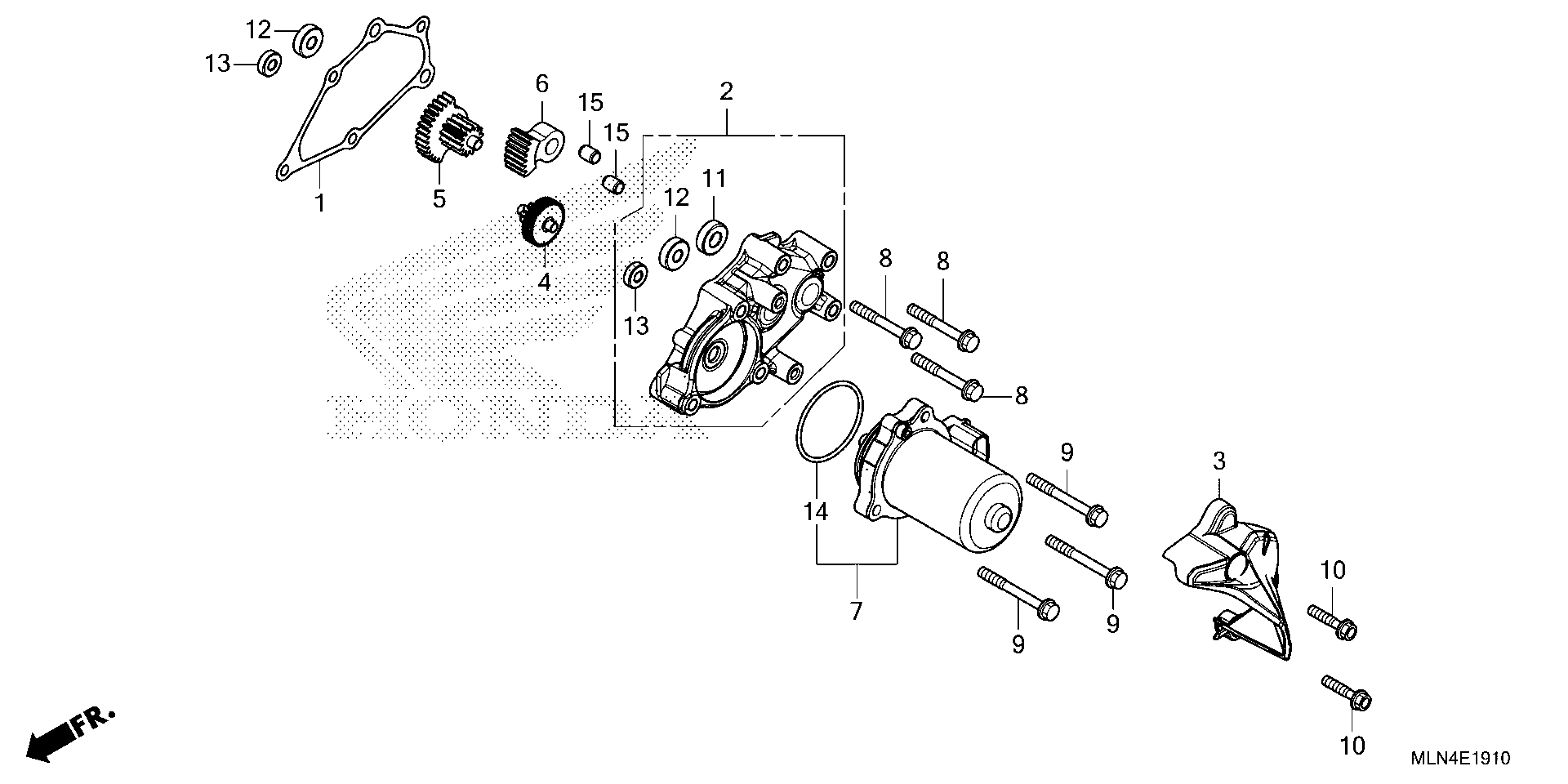

Honda CRF1100D43AC (24) MOTORCYCLE, JPN, VIN# JH2SD15E-RK000001 TO JH2SD15E-RK099999 REDUCTION GEAR Diagram

GASKET, REDUCTION COVER

11397-MJP-G81

$11.15

COVER, REDUCTION GEAR

11520-MLA-A50

$110.13

COVER, RATIO CONTROL MOTOR

11530-MJP-G80

$30.87

GEAR, SHIFT REDUCTION (45T/7T)

24615-MGE-D01

$67.39

GEAR, SHIFT REDUCTION (32T/13T)

24616-MGS-D21

$66.48

GEAR, SHIFT REDUCTION (42T)

24617-MGE-D01

$54.69

MOTOR, RATIO CONTROL

31300-MJP-G82

$299.54

BOLT, SPL (6X45)

90024-MLG-E00

$1.85

BOLT, SPL (6X53)

90025-MLG-E00

$1.85

BOLT, FLANGE (6X25)

90026-GHB-680

$2.18

BEARING, RADIAL BALL (699ZZ)

91025-MGS-D21

$10.98

BEARING, RADIAL BALL (607ZZ)

91026-MGS-D21

$9.77

BEARING, RADIAL BALL (696ZZ)

91027-MGS-D21

$8.69

O-RING, CONTROL MOTOR

91301-MJP-G81

$2.90

PIN A, DOWEL (8X10)

94301-08100

$2.25
