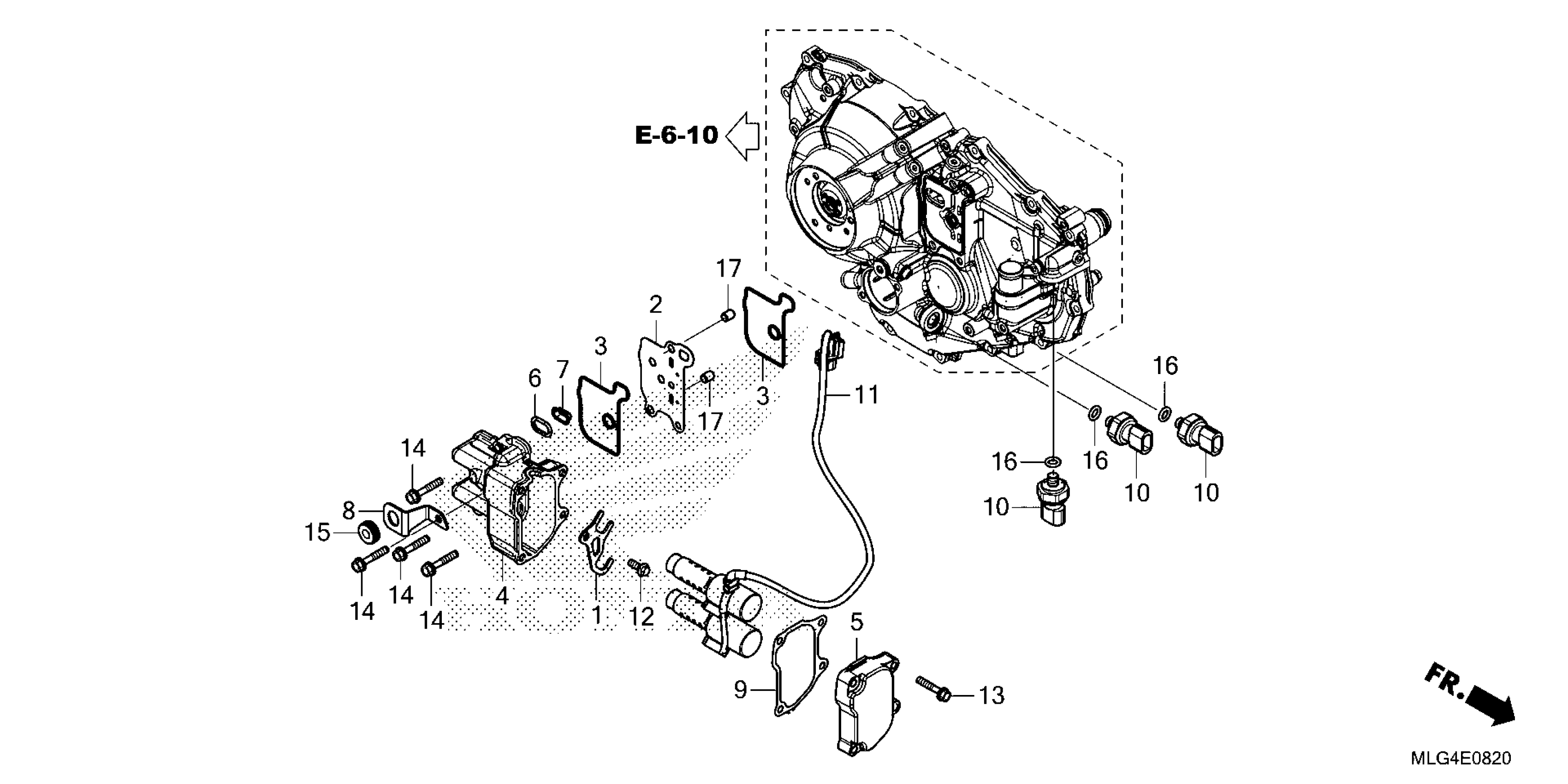

Honda CRF1100D43AC (22) MOTORCYCLE, JPN, VIN# JH2SD104-NK200001 LINEAR SOLENOID Diagram

PLATE, SOLENOID STOPPER

11338-MJP-G80

$10.68

PLATE, SEPARATOR

11362-MJP-G80

$6.14

GASKET, SOLENOID BODY

11364-MJP-G80

$3.57

BODY, LINEAR SOLENOID

11365-MKS-E50

$124.36

COVER, LINEAR SOLENOID

11366-MKS-E50

$52.00

GASKET, BASE

11371-MGS-D20

$3.78

FILTER, SPOOL VALVE

11372-MGS-D20

$14.42

STAY, OIL PRESSURE SENSOR COVER

11373-MKS-E50

$5.03

GASKET, SOLENOID COVER

11398-MKS-E51

$3.96

SENSOR ASSY., OIL PRESSURE

28660-RFH-013

Unavailable

SOLENOID ASSY., LINEAR

38610-MKS-E51

$272.71

BOLT, FLANGE (6X16)

90025-GHB-640

$2.12

BOLT, FLANGE (6X28)

90026-GHB-690

$1.99

BOLT, FLANGE (6X30)

90026-GHB-700

$1.37

GROMMET A, AIR CLEANER HOUSING

90505-MC4-000

$2.85

O-RING (13X1.5)

91301-MEH-003

$1.48

PIN A, DOWEL (8X10)

94301-08100

$2.04
