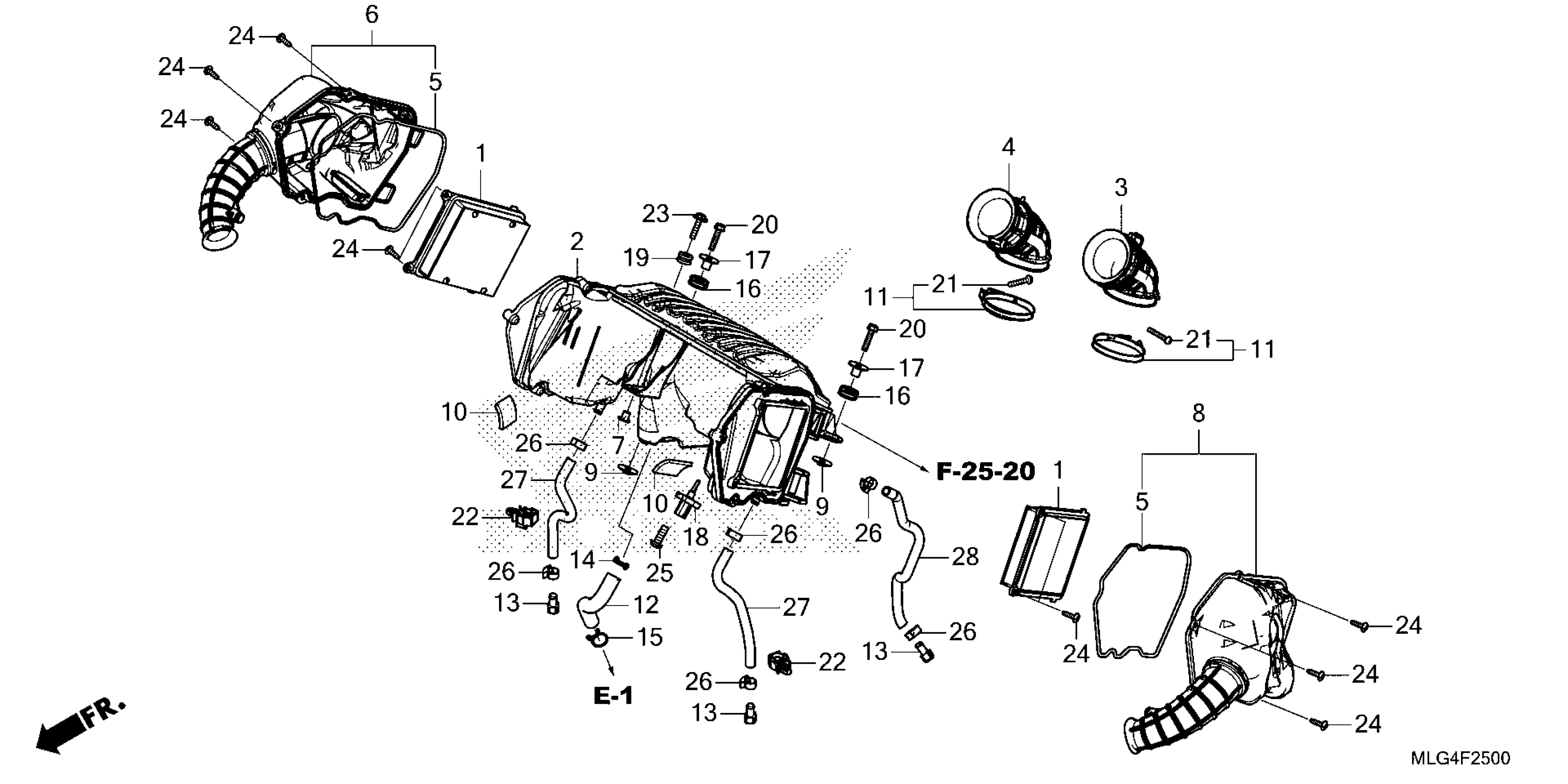

Honda CRF1100D43AC (22) MOTORCYCLE, JPN, VIN# JH2SD104-NK200001 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17210-MKS-E00

$36.10

2

CASE

17215-MKS-E00

$221.74

3

TUBE, L. AIR CLEANER CONNECTING

17226-MKS-E00

$43.93

4

TUBE, R. AIR CLEANER CONNECTING

17227-MKS-E00

$50.90

5

SEAL, LID

17229-MKS-E00

$2.70

6

LID SUB-ASSY., R. AIR CLEANER

17234-MKS-E00

$96.74

7

COLLAR, AIR CLEANER MOUNTING

17239-MKS-E00

$4.20

8

LID SUB-ASSY., L. AIR CLEANER

17244-MKS-E00

$96.74

9

COLLAR, AIR CLEANER MOUNTING

17245-MKS-E00

$9.23

10

RUBBER, AIR CLEANER HOUSING

17256-MJP-G50

$1.49

11

BAND, CONNECTING TUBE

17257-MKS-E00

$12.98

12

TUBE, BREATHER

17265-MKS-E00

$5.92

13

PLUG, BREATHER TUBE

17370-419-700

$3.74

14

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

15

CLIP, TUBE

17724-MJP-G50

$2.54

16

RUBBER A, MUFFLER MOUNTING

18422-KR3-870

$4.87

17

COLLAR, RADIATOR MOUNTING

19052-MB0-000

$6.34

18

SENSOR ASSY., AIR TEMPERATURE

37880-KWW-C01

$44.57

19

RUBBER, SIDE COVER

83545-KCJ-690

$1.49

20

BOLT, FLANGE (6X28)

90030-GHB-690

$2.26

21

SCREW, PAN (4X28)

90140-KAE-000

$1.95

22

CLIP

90652-MGS-D31

$3.20

23

BOLT-WASHER (6X28)

93404-06028-07

$1.49

24

SCREW, TAPPING (5X20)

93903-25480

$1.49

25

SCREW, TAPPING (5X20)

93913-255J0

$1.72

26

CLAMP, TUBE (D12) This part replaces 95002-41200-00.

95002-41200-04

$2.34

27

BULK HOSE, VINYL (8X12X8000) (Honda Code 4825345) (8X12X600)

95003-23008-60M

Unavailable

28

BULK HOSE, VINYL (8X12X8000) (Honda Code 4825345) (8X12X600)

95003-23008-60M

Unavailable
