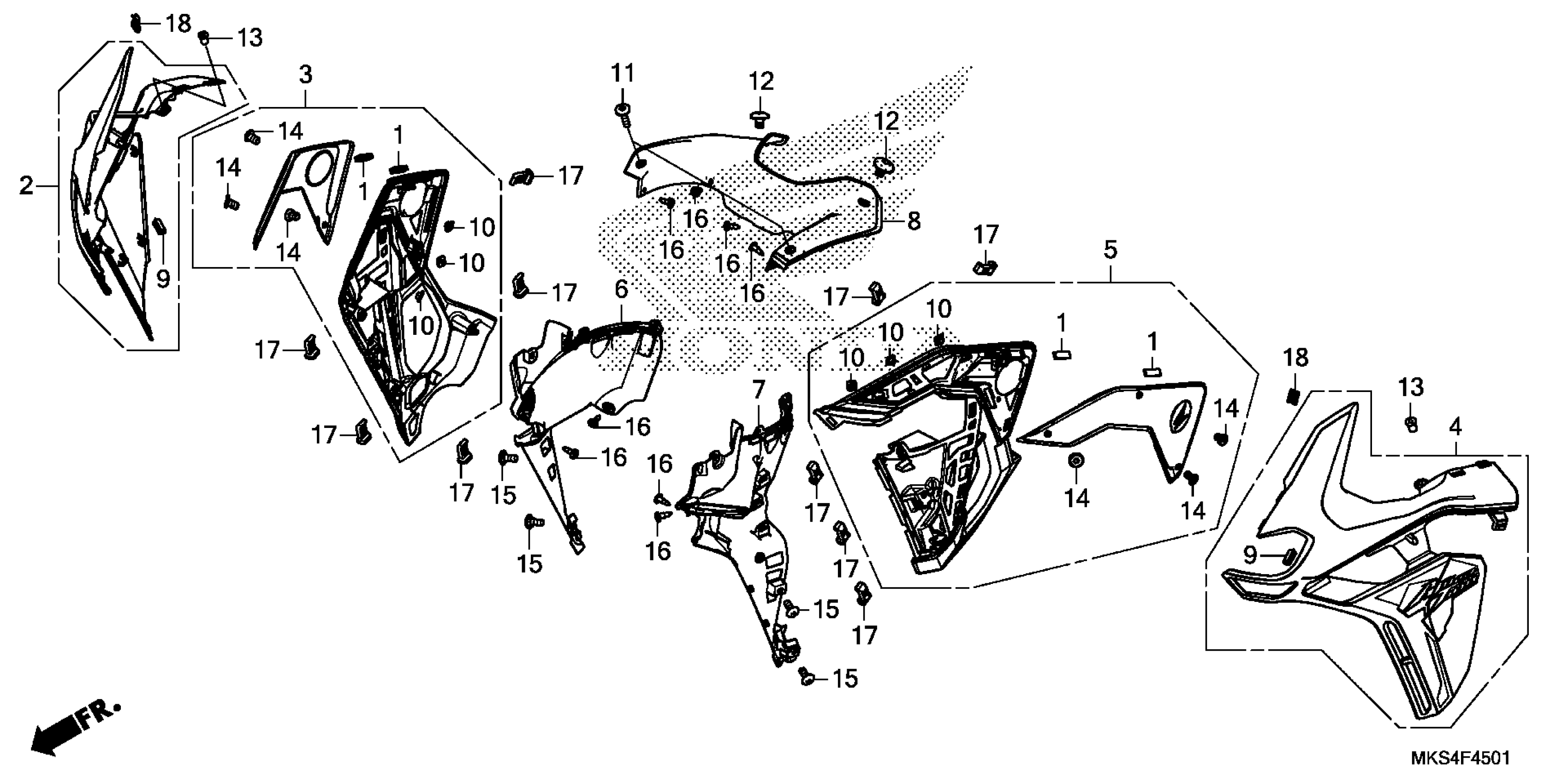

Honda CRF1100D42AC (20) MOTORCYCLE, JPN, VIN# JH2SD104-LK000001 TO JH2SD104-LK099999 MIDDLE COWL (2) Diagram

FASTENER, DUAL LOCK (8X25)

17541-MJP-G50

$2.09

COWL ASSY., R. MIDDLE (TYPE1) (WL)

64300-MKS-EC0ZA

$393.96

COVER SET, R. FR. SIDE (WL)

64320-MKS-E20

$157.51

COWL ASSY., L. MIDDLE (TYPE1) (WL)

64350-MKS-EC0ZA

$393.96

COVER SET, L. FR. SIDE (WL)

64370-MKS-E20

$157.51

COVER, R. (INNER)

64521-MKS-E20

$18.25

COVER, L. (INNER)

64571-MKS-E20

$18.25

COVER, FR. TANK

64611-MKS-E20

$54.31

PROTECTOR, RUBBER

77212-MFJ-D00

$1.60

NUT, SPECIAL (5MM) (NOT AVAILABLE)

90016-ZA5-000

$3.63

SCREW, PAN (5X20)

90103-MGH-H20

$2.15

SCREW, PAN (6X8)

90105-GAG-000

$0.66

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.31

BOLT, SPECIAL (5X8)

90111-MKS-E20

$1.76

SCREW, VISOR SPECIAL SETTING

90115-KW7-900

$2.01

CLIP, BUMPER SEAL

90116-SP0-003

$4.50

CLIP, SLIDE

90651-K14-A31

Unavailable

NUT, CLIP (5MM)

90677-KAN-961

$3.89
