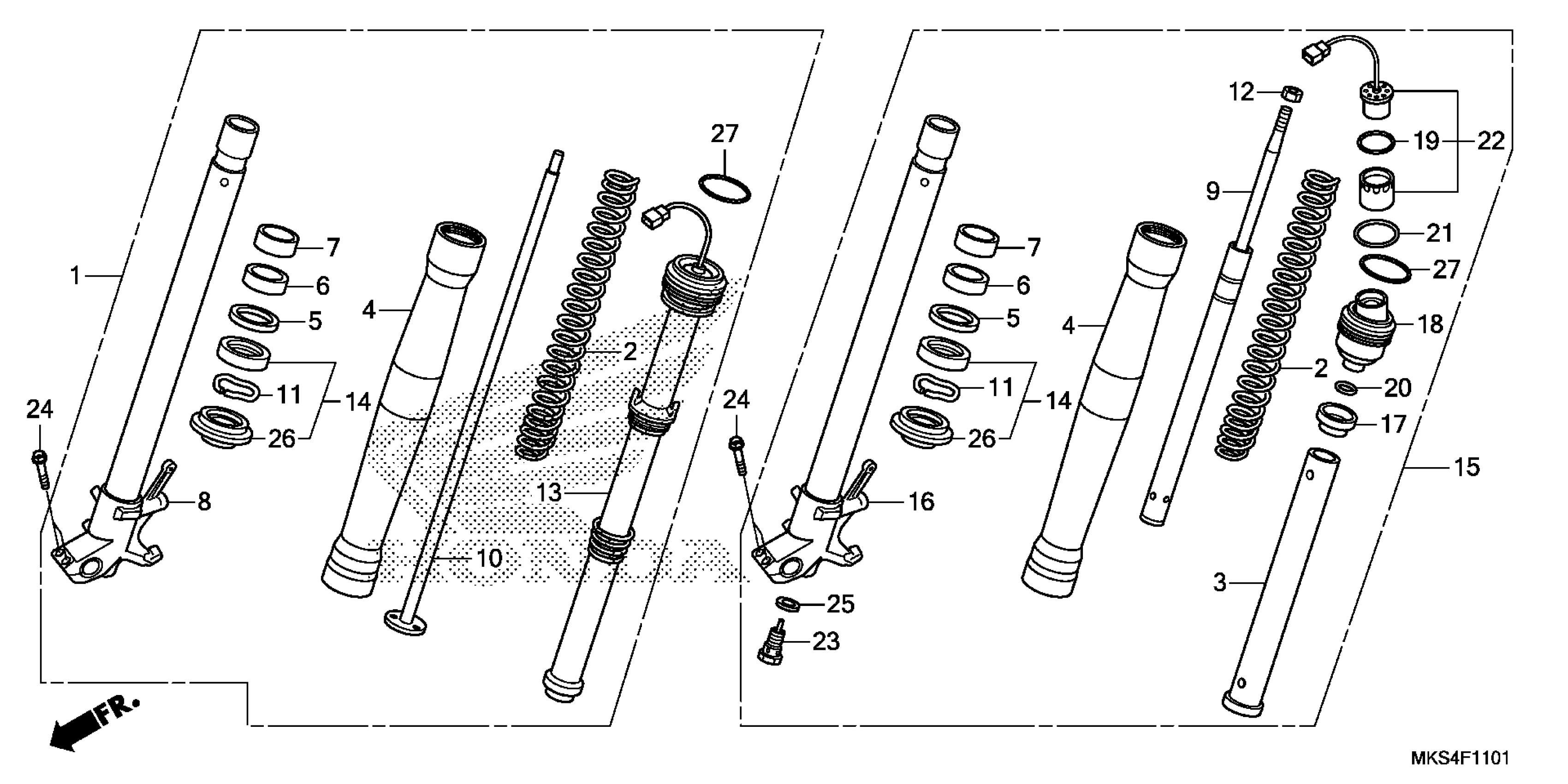

Honda CRF1100D42AC (20) MOTORCYCLE, JPN, VIN# JH2SD104-LK000001 TO JH2SD104-LK099999 FRONT FORK (2) Diagram

FORK ASSY., R. FR. This part replaces 51400-MKS-EQ1.

51400-MKS-EQ2

$1,069.79

SPRING, FR. FORK

51401-MKS-EQ1

$86.69

COLLAR, SPRING

51404-MKS-EN1

$19.79

TUBE (OUTER)

51410-MKS-EN1

$474.31

RING, BACK-UP

51412-KZ3-003

$8.68

BUSH, GUIDE

51414-MFR-671

$19.90

BUSH, SLIDER

51415-MFR-671

$10.58

PIPE SUB, R. SLIDE

51425-MKS-EN1

$357.94

DAMPER, FR.

51430-MKS-EN1

$459.53

ROD

51433-MKS-EN1

$95.63

RING, OIL SEAL STOPPER

51447-KZ3-003

$4.88

NUT, HEX. (10MM)

51451-MAJ-G41

$2.68

BOLT SUB, FORK

51485-MKS-EN1

$1,044.57

SEAL SET, FR. FORK

51490-MKS-E01

$22.96

FORK ASSY., L. FR. This part replaces 51500-MKS-EQ1.

51500-MKS-EQ2

$1,352.76

PIPE SUB, L. SLIDE

51525-MKS-EN1

$357.94

STOPPER, SPRING SEAT

51545-MKS-EN1

$22.72

BOLT, FR. FORK (L)

51550-MKS-EN1

$71.85

O-RING (23.3X1.9)

51566-MKS-EN1

$2.44

O-RING (16.8X1.9)

51567-MKS-EN1

$2.13

O-RING

51568-MKS-EN1

$2.82

SOLENOID SUB

51585-MKS-EN1

$783.47

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.71

BOLT (8X45)

90134-MEL-000

$2.80

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.65

DUST SEAL

91254-KAE-731

$12.09

O-RING (44.7X2.4)

91356-KZ3-003

$3.74
