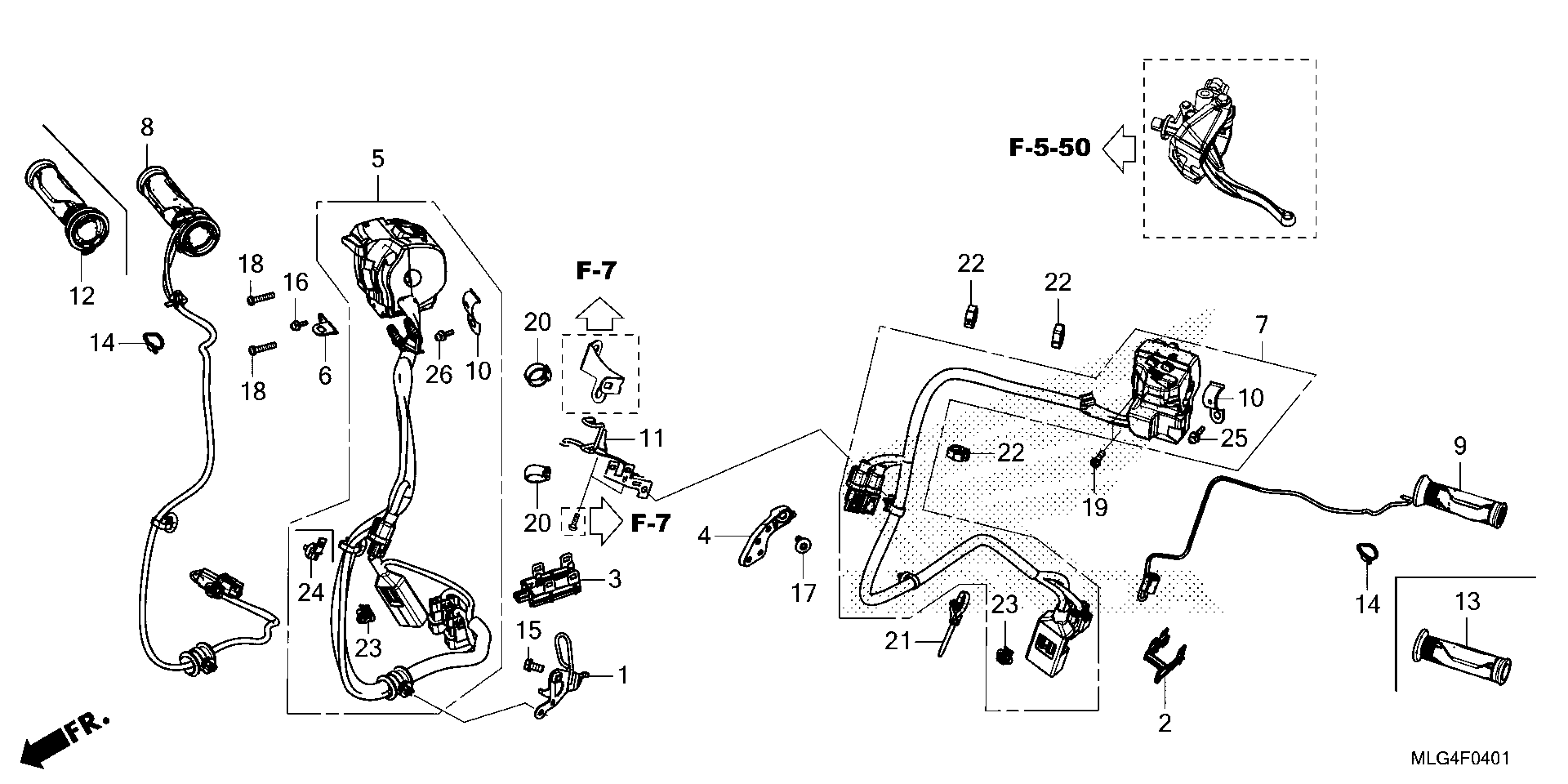

Honda CRF1100D2AC (22) MOTORCYCLE, JPN, VIN# JH2SD100-NK200001 TO JH2SD100-NK299999 SWITCH@CABLE (DCT) Diagram

GUIDE, CABLE

17925-MKS-E00

$12.41

HOLDER, CONNECTOR

32121-MKK-D00

$4.77

HOLDER, R. CONNECTOR HANDLE

32121-MKS-E01

$5.82

STAY, CLIP

32151-MKK-D00

$8.54

SWITCH UNIT

35135-MLG-E71

$355.31

SWITCH ASSY., TURN SIGNAL & HAND SHIFT

35200-MKS-A51

$307.31

PLATE A, SETTING

37971-MKS-E01

$4.06

CLAMP, CABLE

53111-MKS-E00

$15.34

GRIP ASSY., THROTTLE

53140-MKS-E01

$33.84

GRIP, L. HANDLE

53166-MGE-000

$17.74

BOLT, FLANGE (6X12)

90030-GHB-620

$2.13

SCREW-WASHER (4X8)

90110-MKS-E20

$1.49

BOLT, SPECIAL (6X15)

90114-MGE-D00

$2.05

SCREW-WASHER (5X25)

90508-MGE-D00

$1.49

SCREW-WASHER (5X16)

90508-MGS-D30

$1.87

CLIP, WIRE HARNESS

90683-KJ2-003

$3.56

CLIP, HARNESS BAND (25MM)

90690-GHB-611

$2.18

CLAMP, HARNESS

90690-MEF-800

$1.49

CLIP, CONNECTOR (BLACK)

91533-MGS-D30

$1.49

SCREW-WASHER (5X10)

93892-05010-08

$1.49

SCREW-WASHER (5X25)

93892-05025-08

$1.49
