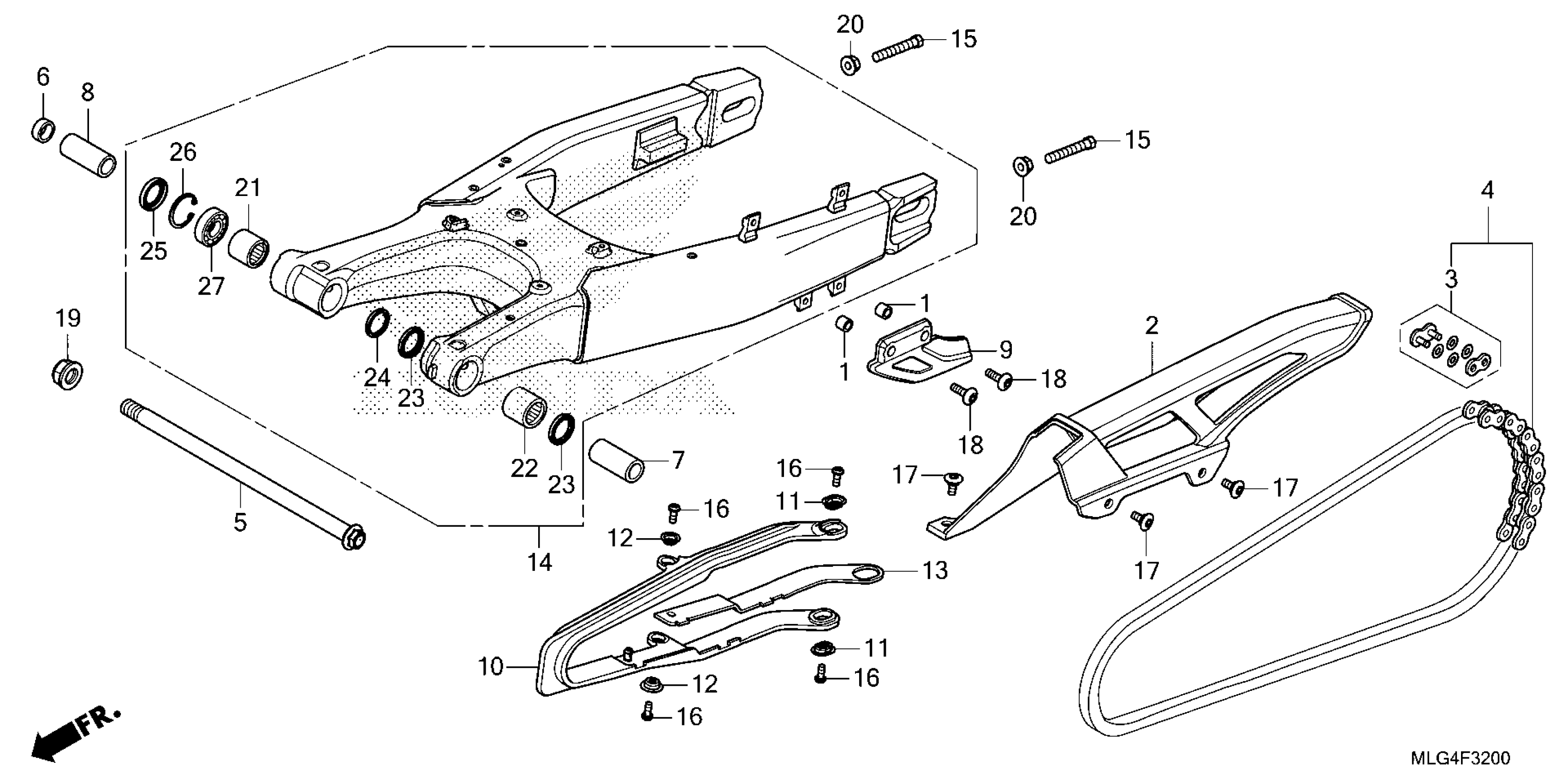

Honda CRF1100D2AC (22) MOTORCYCLE, JPN, VIN# JH2SD100-NK200001 TO JH2SD100-NK299999 SWINGARM Diagram

#

Description
Price

1

COLLAR, DISTANCE

17202-ZV4-310

$2.28

2

CASE, DRIVE CHAIN

40510-MKS-E00

$90.93

3

MASTER LINK SET (DAIDO)

40535-MJM-D01

$13.31

4

CHAIN, DRIVE (DID525HV3-130ZB) (DAIDO) (STANDARD LINK 124L)

40540-MJP-G51

$218.70

5

BOLT, SWINGARM PIVOT

52101-MKS-E00

$54.13

6

COLLAR A, PIVOT

52141-MKS-E00

$5.18

7

COLLAR, L. PIVOT DISTANCE

52142-MKS-E00

$17.15

8

COLLAR, R. PIVOT DISTANCE

52143-MKS-E00

$16.69

9

GUARD, CHAIN

52160-MKS-E00

$19.66

10

SLIDER, CHAIN

52170-MKS-E00

$63.98

11

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

12

WASHER, CHAIN SLIDER

52171-MAN-620

$3.21

13

RUBBER, CHAIN SLIDER

52171-MKS-E00

$11.18

14

SWINGARM SUB-ASSY., RR. (TYPE1)

52200-MKS-E00ZB

$1,494.44

15

BOLT, HEX. (8X50)

90106-MCF-D00

$2.43

16

SCREW, PAN (5X12)

90107-MJP-G50

$1.89

17

SCREW, SPECIAL (6X14)

90118-MJK-N20

$2.70

18

BOLT, SPECIAL (6X20)

90119-MKS-E00

$2.56

19

NUT, SPECIAL U (16MM) This part replaces 90305-MBZ-C50.

90305-MCB-610

$8.43

19

NUT, SPECIAL U (16MM)

90305-MCB-610

$8.43

20

NUT, HEX. (10MM)

90309-357-000

$3.40

21

BEARING, NEEDLE (24X31X28) (NOT AVAILABLE)

91063-MZ1-003

$23.78

22

BEARING, NEEDLE (NTN)

91071-MT7-003

$24.23

23

DUST SEAL (25X33X4)

91202-MAL-601

$6.96

24

OIL SEAL (24X31X3.5) (NOT AVAILABLE)

91203-GC8-003

$9.49

25

DUST SEAL (23X35X5)

91214-MAL-601

$8.21

26

CIRCLIP (INNER) (35MM)

94520-35000

$1.84

27

BEARING, RADIAL BALL (6003)

96100-60030-10

$14.15
