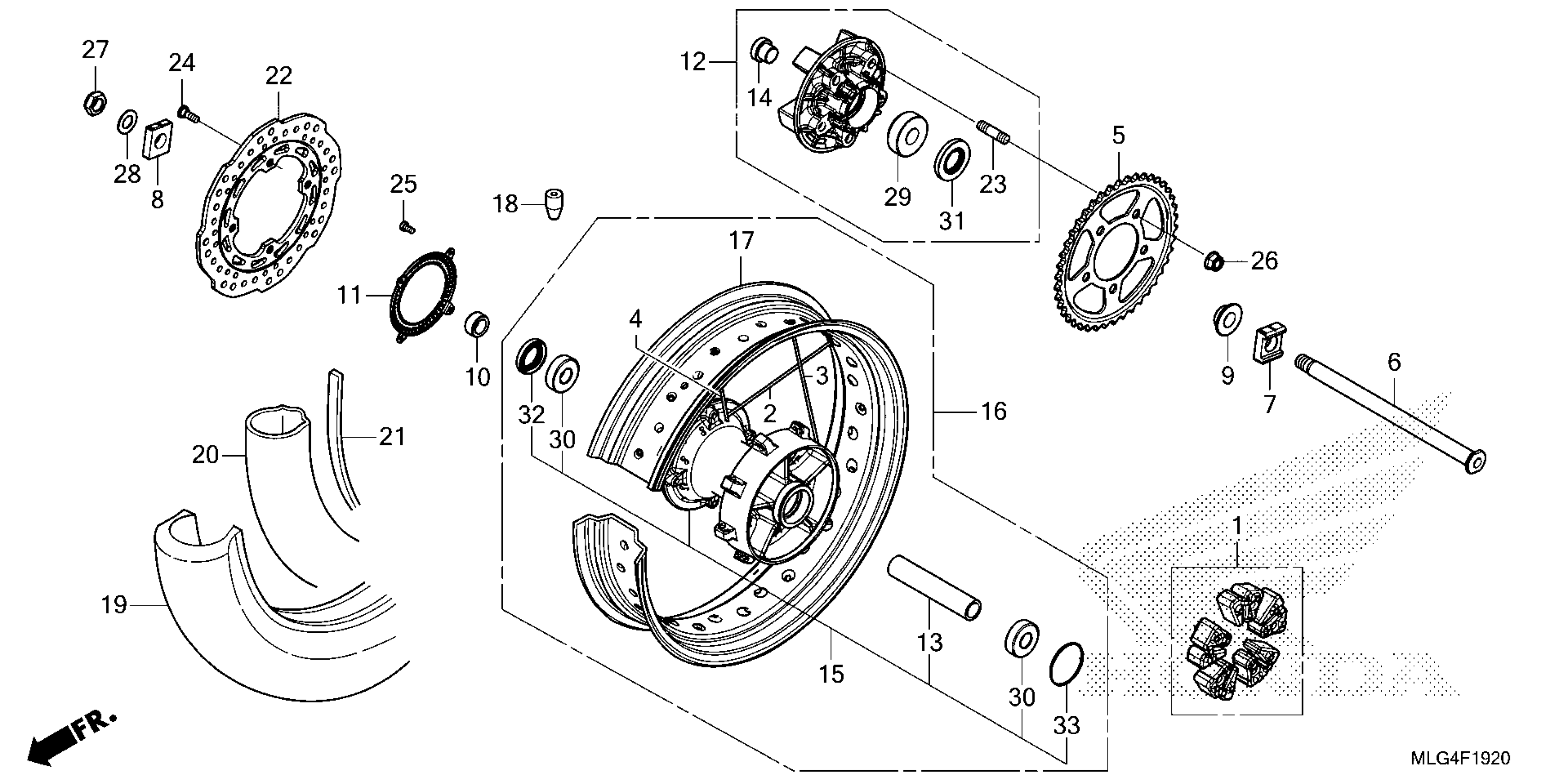

Honda CRF1100D2AC (22) MOTORCYCLE, JPN, VIN# JH2SD100-NK200001 TO JH2SD100-NK299999 REAR WHEEL (1) Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MBB-000

$39.81

2

SPOKE SET A, RR. (R. OUTSIDE)

06420-MKK-D00

$5.51

3

SPOKE SET B, RR. (L. SIDE)

06421-MKK-D00

$5.51

4

SPOKE SET C, RR. (R. INSIDE)

06422-MKK-D00

$5.51

5

SPROCKET, FINAL DRIVEN (42T)

41201-MJP-G51

$72.46

6

AXLE, RR. WHEEL

42301-MKS-E00

$46.47

7

COLLAR, L. RR. AXLE

42305-MKS-E00

$28.04

8

COLLAR, R. RR. AXLE

42306-MKS-E00

$24.16

9

COLLAR, L. RR. WHEEL SIDE

42311-MGS-D10

$19.60

10

COLLAR, RR. BRAKE SIDE

42312-MGS-D10

$14.34

11

RING, RR. PULSER

42515-MKS-E00

$52.28

12

FLANGE SUB-ASSY., FINAL DRIVEN

42615-MKS-E00

$195.82

13

COLLAR, RR. AXLE DISTANCE

42620-MJP-G50

$21.60

14

COLLAR B, RR. WHEEL DISTANCE

42625-MJP-G50

$15.34

15

HUB SUB-ASSY., RR.

42635-MKK-D00

$547.51

16

WHEEL SUB-ASSY., RR.

42650-MKK-D01

$1,060.88

17

RIM, RR. WHEEL (18M/CXMT4.00)

42701-MKK-D02

$338.56

18

WEIGHT, BALANCE (15G)

42704-MEG-003

$7.71

18

WEIGHT, BALANCE (20G)

42705-MEG-003

$7.71

19

TIRE, RR. This part replaces 42711-MKS-E01.

42711-MKS-E03

$309.10

19

TIRE, RR. (150/70R18 M/C 70H) (METZELER)

42711-MKS-E02

$309.10

20

TUBE, TIRE (BS)

42712-MKK-D02

Unavailable

20

TUBE, TIRE (METZELER)

42712-MKS-E02

$36.65

21

FLAP, TIRE (BS)

42713-MKK-D02

$1.61

21

FLAP

42713-MKS-E02

$5.13

22

DISK, RR. BRAKE (YUTAKA)

43251-MJP-G51

$299.97

23

BOLT 2, STUD (12X25)

90102-MAS-000

$3.83

24

BOLT, FR. DISK (8X24) (SAGA)

90105-KR3-000

$5.80

24

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$5.93

24

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$5.93

25

BOLT, TORX (5X8)

90131-MGE-000

$2.80

26

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

$3.68

27

NUT, U (18MM)

90306-MCS-G01

$6.51

28

WASHER (18X32X2)

90401-KZ4-890

$4.28

29

BEARING, RADIAL BALL (63/22)

91051-MAS-003

$36.76

30

BEARING, RADIAL BALL (6204UU)

91053-MGS-D31

Unavailable

31

DUST SEAL (30X56X7.5)

91252-MAS-003

$11.13

32

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$11.13

32

DUST SEAL (30X47X8) (NOK)

91253-443-762

$11.13

33

O-RING (55X2)

91351-MGS-D30

Unavailable
