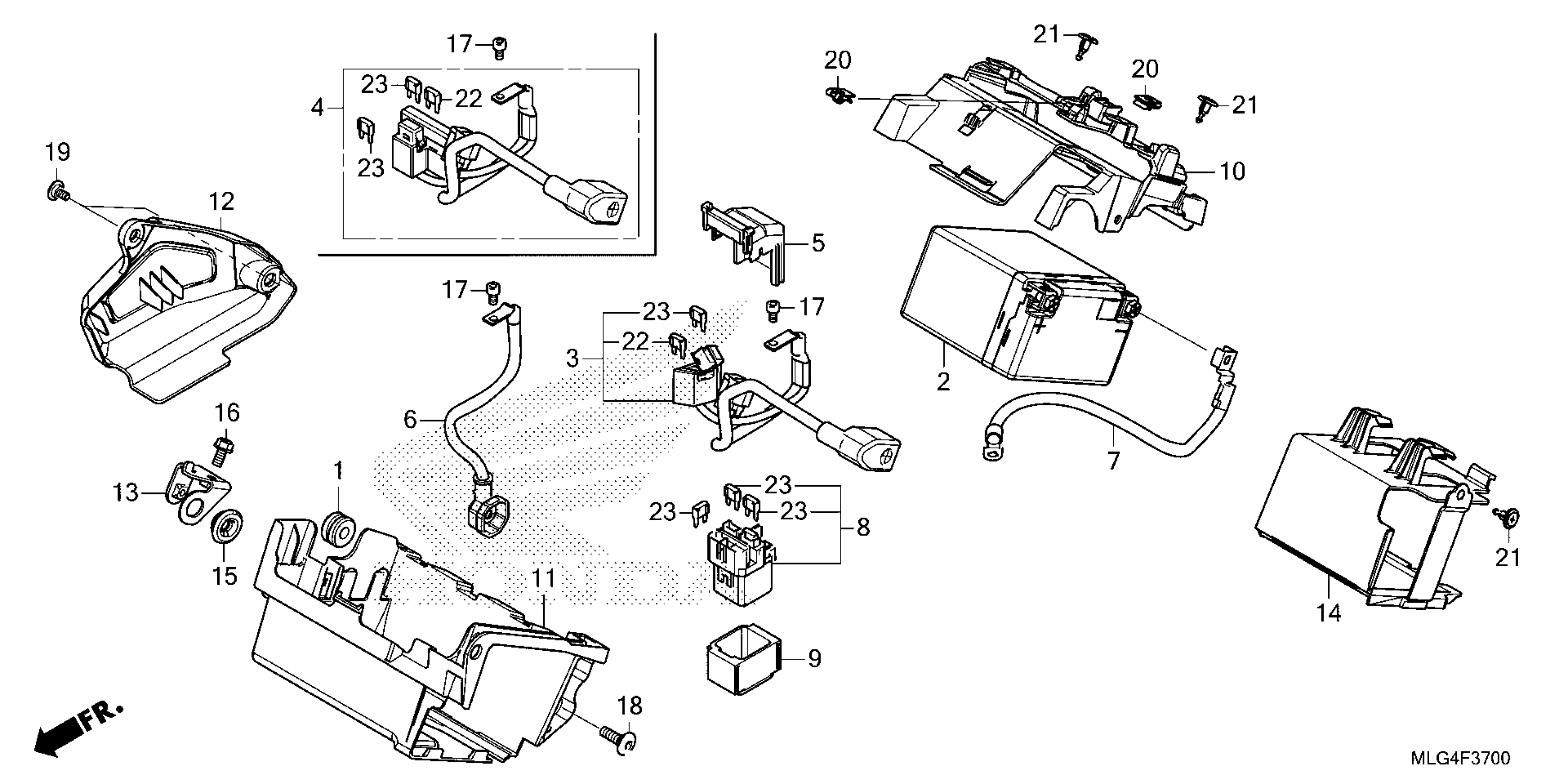

Honda CRF1100D2AC (22) MOTORCYCLE, JPN, VIN# JH2SD100-NK200001 TO JH2SD100-NK299999 BATTERY Diagram

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.89

BATTERY (HY110) (ELIIY POWER) (MSDS)

31500-MKK-A02

$300.89

CABLE, STARTER BATTERY

32401-MKS-E50

$95.84

COVER, STARTER MAGNETIC SWITCH

32406-MKK-D01

$7.21

CABLE, STARTER MOTOR

32410-MKS-E00

$24.66

CABLE, BATTERY GROUND

32601-MKS-E00

$23.57

SWITCH ASSY., STARTER MAGNETIC

35850-MFL-D01

$86.62

RUBBER, SHOCK

35856-MJP-G51

$12.61

TRAY, ECU

80121-MKS-E00

$20.69

BOX, BATTERY (LOWER)

80122-MKS-E00

$38.70

COVER, BATTERY BOX

80123-MKS-E00

$8.79

STAY A, R. BATTERY BOX

80124-MKS-E00

$9.30

TRAY, BATTERY

80129-MKS-E00

$20.48

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

BOLT, FLANGE (6X12)

90021-GHB-620

$2.23

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

SCREW, SPECIAL (6X14)

90118-MJK-N20

$2.70

SCREW, SPECIAL (5X11)

90122-MJK-N20

$2.48

NUT, CLIP (5MM)

90677-KAN-961

$4.07

CLIP, BODY

90683-MBW-003

$2.16

FUSE, MINI (15A) (Honda Code 4853438)

98200-41500

$1.49

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.67
