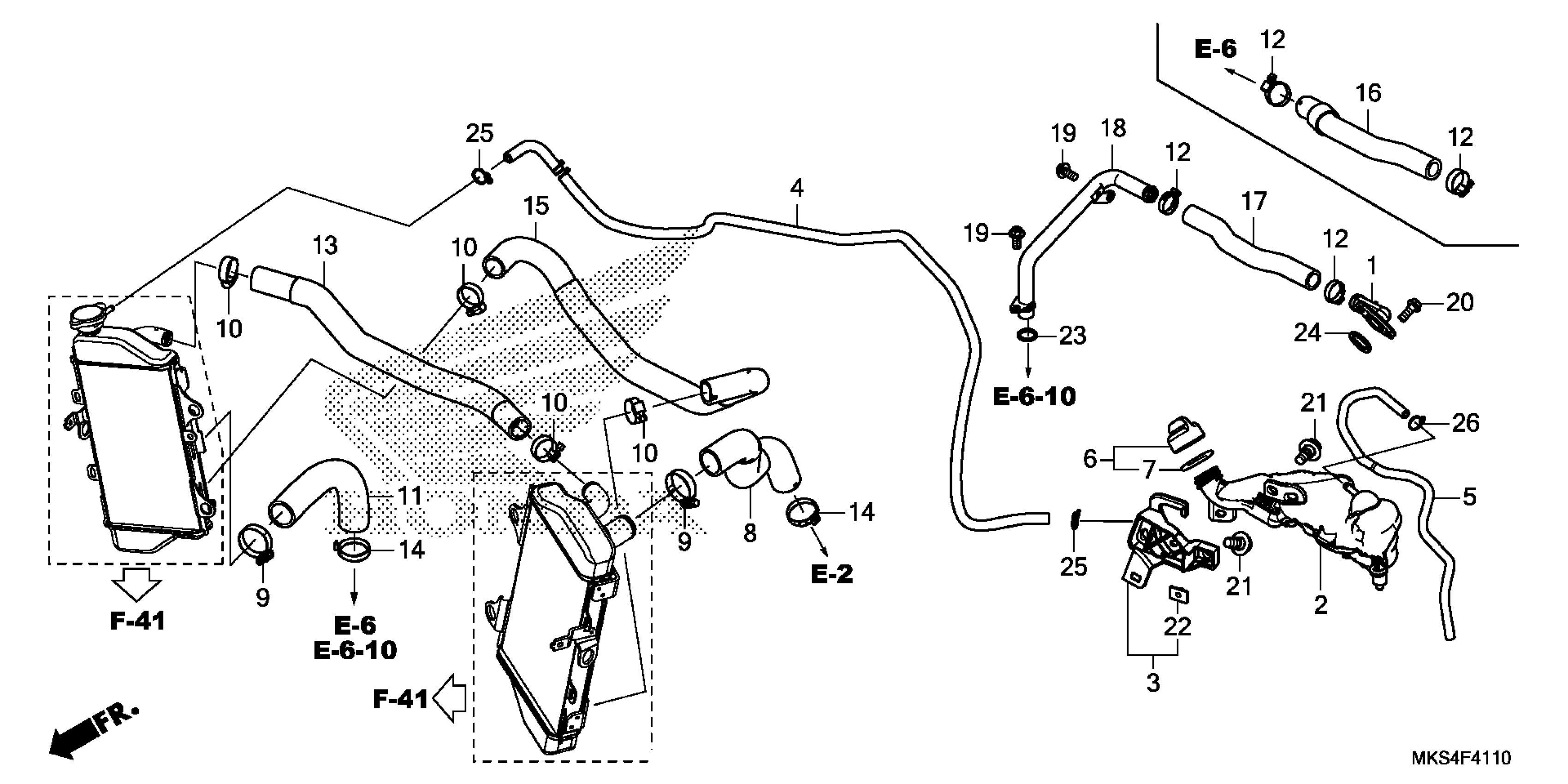

Honda CRF1100D2AC (20) MOTORCYCLE, JPN, VIN# JH2SD100-LK000001 TO JH2SD100-LK099999 RADIATOR HOSE@WATER PIPE Diagram

JOINT, WATER (LOWER)

19061-MJP-G50

$18.04

TANK, RESERVE

19101-MKS-E00

$29.03

STAY, RESERVE TANK

19102-MJP-G50

$5.93

TUBE (5.3X1050)

19103-MJP-G50

$25.99

TUBE, RESERVE TANK OVERFLOW

19104-MJP-G50

$6.90

CAP ASSY., RESERVE TANK

19106-GET-000

$6.59

GASKET, RESERVE TANK

19107-GET-000

$3.58

HOSE, RADIATOR (UPPER)

19501-MKS-E00

$41.74

CLAMP, WATER HOSE

19505-ML3-770

$6.75

CLAMP B, WATER HOSE

19506-KS6-700

$7.16

HOSE, RADIATOR (LOWER)

19511-MKS-E50

$16.15

CLAMP, HOSE (D21)

19512-MKF-D41

$8.06

HOSE A, RADIATOR

19513-MKS-E00

$41.16

CLAMP, HOSE (D29.8)

19514-MKF-D41

$9.44

HOSE B, RADIATOR

19514-MKS-E00

$43.72

HOSE, WATER (LOWER)

19521-MKK-D50

$11.75

PIPE, WATER

19530-MJP-G80

$60.46

BOLT, FLANGE (6X14)

90026-GHB-630

$2.06

BOLT, FLANGE (6X16)

90027-GHB-640

$2.09

BOLT, FLANGE (6MM)

90111-162-000

$2.66

NUT, SPECIAL (6X7)

90303-HA0-680

$3.67

O-RING (15X2.5)

91301-MY9-003

$2.21

O-RING (17.4X2.9)

91304-HN8-003

$1.99

CLIP, TUBE (B10)

95002-02100

$1.75

CLIP, TUBE (C9)

95002-50000

$1.16
