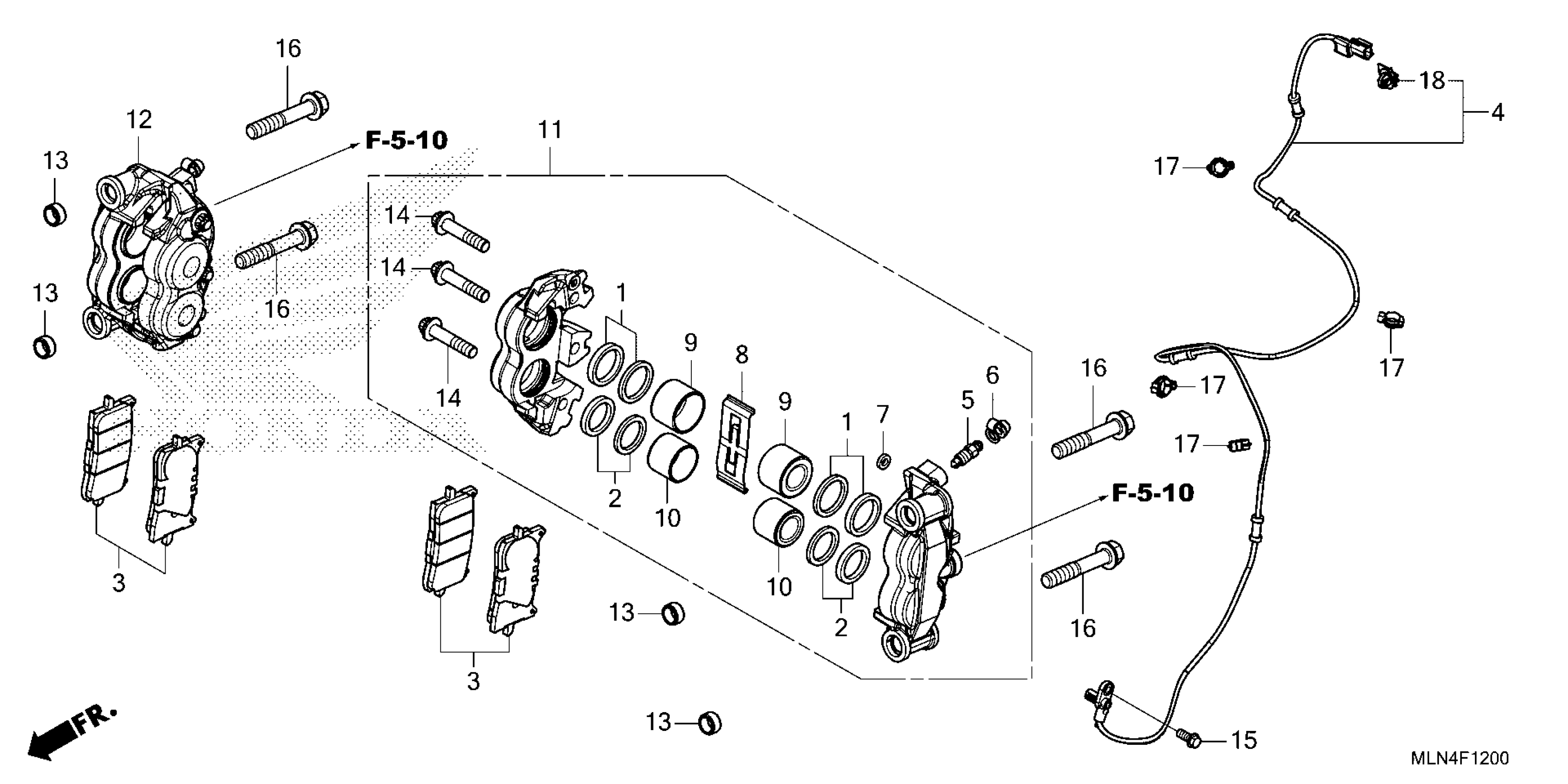

Honda CRF1100AAC (25) MOTORCYCLE, JPN, VIN# JH2SD151-SK100001 TO JH2SD151-SK199999 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON

06451-MCZ-006

$5.42

SEAL SET, PISTON

06452-MCZ-006

$5.42

PAD SET, FR.

06455-MKK-D01

$48.45

SENSOR, FR. WHEEL SPEED

38520-MKS-E01

$165.54

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.39

CAP, BLEEDER

43353-461-771

$4.70

SEAL, JOINT (NISSIN)

45103-MR7-006

$3.48

SPRING, PAD

45106-MJP-G51

$7.96

PISTON A

45107-MJP-G52

$43.88

PISTON B

45117-MJP-G52

$41.20

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-MJP-G52

$408.42

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MJP-G52

$408.42

SPACER, FR. FORK

51497-MKS-E00

$5.07

BOLT, TORX (8X38)

90104-MJP-G51

$4.62

BOLT, FLANGE (6X14)

90117-MKS-E00

$2.10

BOLT, FLANGE (10X57)

90123-MJP-G50

$4.53

CLIP, CABLE (12MM)

90690-MGS-D81

Unavailable

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.42
