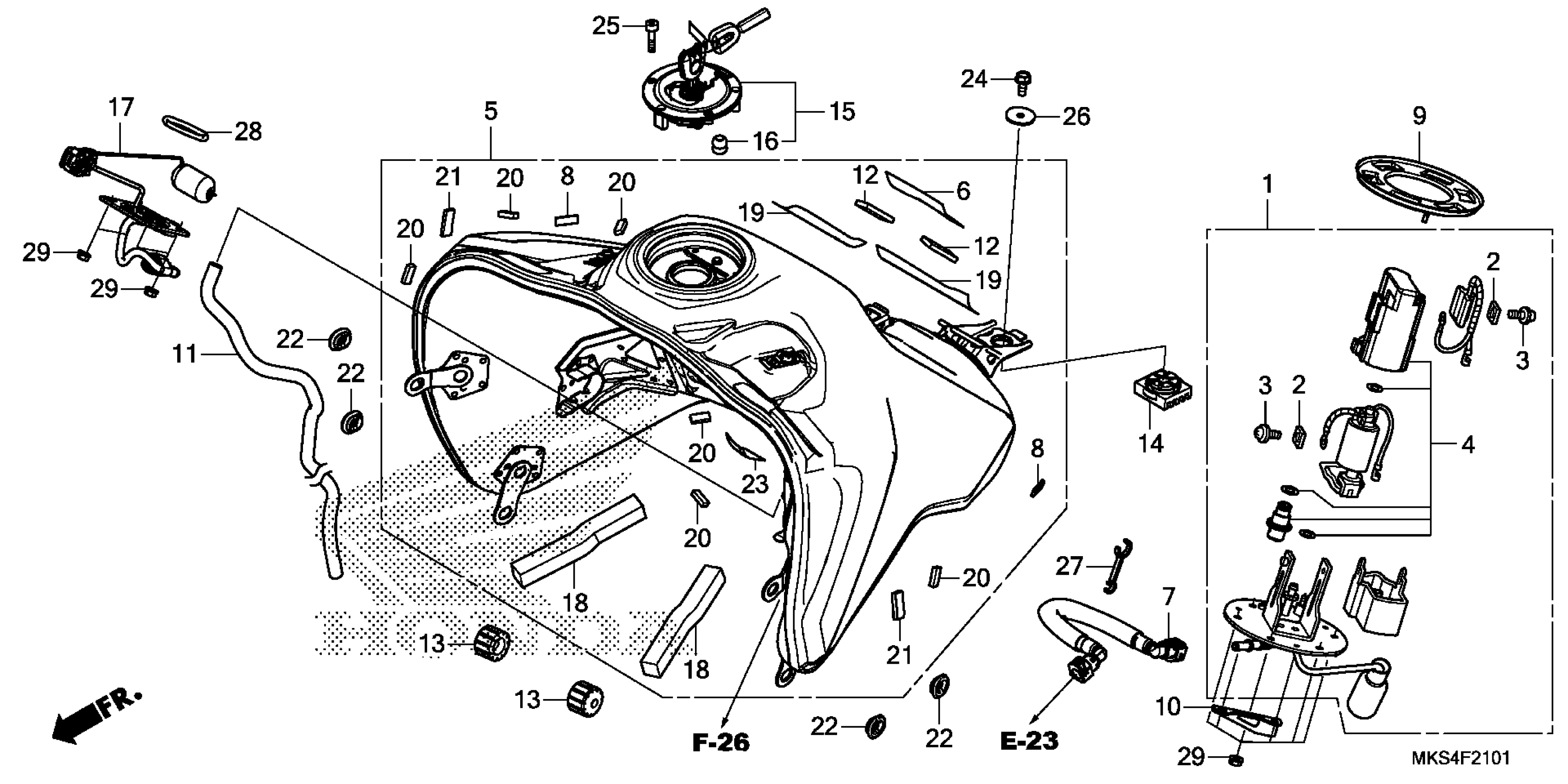

Honda CRF1100A4AC (21) MOTORCYCLE, JPN, VIN# JH2SD102-MK100001 FUEL TANK@FUEL PUMP (2) Diagram

PUMP UNIT, FUEL This part replaces 16700-MKS-E21.

16700-MKS-E23

$688.93

STOPPER

16711-MGS-D31

$4.84

SCREW (4X6.6)

16712-MGS-D31

$1.89

FILTER ASSY., FUEL This part replaces 16730-MKA-D82.

16730-MKT-D01

$42.30

FILTER ASSY., FUEL This part replaces 16730-MKA-D83.

16730-MKT-D01

$42.30

FILTER ASSY., FUEL

16730-MKT-D01

$42.30

TANK ASSY., FUEL (TYPE1) This part replaces 17500-MKS-E20ZA.

17500-MKS-E21ZA

$1,487.87

TANK ASSY., FUEL (TYPE1)

17500-MKS-E21ZA

$1,487.87

TAPE, TANK PROTECTOR

17515-MEG-300

$3.16

HOSE, FUEL FEED

17526-MKS-E01

$75.85

FASTENER, DUAL LOCK (8X25)

17541-MJP-G50

$2.26

GASKET, BASE

17574-MGS-D30

$24.44

GUARD, FUEL PUMP

17580-MKS-E00

$6.33

TUBE, DRAIN

17590-MKS-E00

$30.28

RUBBER, TANK GUARD

17595-MKS-E00

$5.16

CUSHION, FR. FUEL TANK

17611-MKS-E00

$8.25

CUSHION, RR. FUEL TANK

17613-KFB-010

$7.15

CAP COMP This part replaces 17620-MJE-D03.

17620-MJE-D04

$209.19

CAP COMP

17620-MJE-D04

$209.19

SEAL, BREATHER

17621-MGP-D62

$5.14

FUEL UNIT

37800-MKS-E21

$113.48

MAT B, PIVOT BRACKET

50133-MFJ-J00

$2.36

TAPE, PROTECTION

77281-MFL-D20

$5.03

RUBBER, TAILLIGHT

80103-MFE-670

$1.49

RUBBER, RR. FRAME

80129-MEG-000

$1.49

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

FILM, PROTECTOR

84114-MFP-C80

$4.72

BOLT, FLANGE (6X14)

90030-GHB-630

$2.23

BOLT, SOCKET (4X24) (SUS)

90110-MGP-D60

$3.26

WASHER, TANK SETTING

90136-428-870

$1.56

CLAMP

90650-MJP-G50

$4.70

O-RING (39.5X5)

91305-KEH-601

$8.05

NUT, FLANGE (6MM)

94050-06000

$1.49
