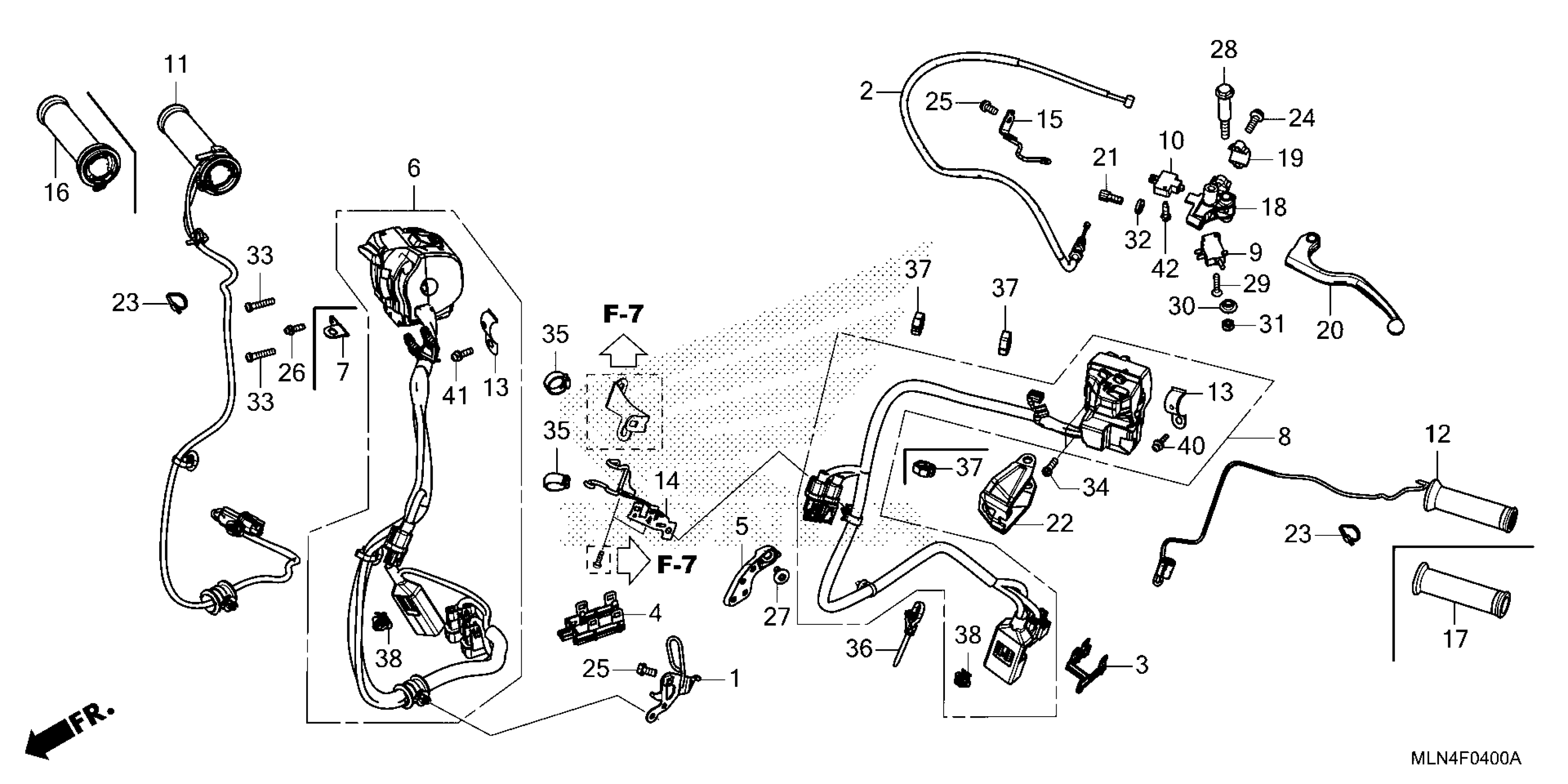

Honda CRF1100A43AC (24) MOTORCYCLE, JPN, VIN# JH2SD15B-RK000001 TO JH2SD15B-RK099999 HANDLE LEVER@SWITCH@CABLE (CRF1100A/A4) Diagram

#

Description
Price

1

GUIDE, CABLE

17925-MKS-E00

$11.47

2

CABLE, CLUTCH

22870-MKK-D21

$24.18

3

HOLDER, CONNECTOR

32121-MKK-D00

$4.41

4

HOLDER, R. CONNECTOR HANDLE

32121-MKS-E01

$5.38

5

STAY, CLIP

32151-MKK-D00

$7.90

6

SWITCH UNIT

35135-MLN-EC1

$284.29

7

STAY, GRIP HEATER WIRE

35138-MKS-E20

$3.50

8

SWITCH, TURN SIGNAL

35200-MLN-AQ1

Unavailable

9

SWITCH ASSY., CLUTCH

35330-MCJ-751

$7.40

10

SWITCH ASSY., CLUTCH

35330-MK5-003

$16.31

11

HEATER UNIT, R. HANDLE

35511-MKS-E21

$93.00

12

HEATER SET, L. HANDLE

35520-MKS-315

$130.44

13

PLATE A, SETTING

37971-MKS-E01

$3.87

14

CLAMP, CABLE

53111-MKS-E00

$14.18

15

GUIDE, CLUTCH CABLE

53112-MJP-G50

$9.99

18

BRACKET, L. HANDLE LEVER

53172-MKS-E00

$57.03

19

HOLDER, L. LEVER BRACKET

53174-KA3-730

$21.61

20

LEVER, L. HANDLEBAR

53178-MKS-E00

$34.78

21

BOLT, CABLE ADJUSTING

53192-MCJ-000

$7.81

22

HOLDER, L. KNUCKLE

53196-MKS-E00

$10.14

23

BAND, NYLON

83645-GG0-000

$1.79

24

BOLT, FLANGE (6X22)

90021-GHB-670

$2.01

25

BOLT, FLANGE (6X12)

90030-GHB-620

$1.97

26

SCREW-WASHER (4X8)

90110-MKS-E20

$1.34

27

BOLT, SPECIAL (6X15)

90114-MGE-D00

$1.90

28

BOLT, L. HANDLE LEVER

90117-MJP-G50

$6.71

29

SCREW, FLAT (3X16)

90124-MCJ-752

$0.57

30

COLLAR (6X4)

90127-KF0-770

$3.26

31

NUT, U (6MM)

90301-782-000

$1.50

32

NUT, FIXING

90321-MCJ-000

$2.96

33

SCREW-WASHER (5X25)

90508-MGE-D00

$1.19

34

SCREW-WASHER (5X16)

90508-MGS-D30

$1.72

35

CLIP, WIRE HARNESS

90683-KJ2-003

$3.40

36

CLIP, HARNESS BAND (25MM)

90690-GHB-611

$2.01

37

CLAMP, HARNESS

90690-MEF-800

$1.21

38

CLIP, CONNECTOR (BLACK)

91533-MGS-D30

$1.24

40

SCREW-WASHER (5X10)

93892-05010-08

$1.06

41

SCREW-WASHER (5X25)

93892-05025-08

$1.24

42

SCREW, TAPPING (3X12)

93901-32320

$0.84
